Installing Seal For Sliding Roof (Front Roof Assembly)
WARNING: This page is about a different variant/trim than selected.
Information
The sliding roof seal (front roof assembly) and vehicle must be at room temperature for installation.
Information
Do not stretch sliding roof seal (front roof assembly) during installation.
Information
The seam of the sliding roof seal (front roof assembly) must be aligned in the middle of the roof at the left because otherwise, the vent holes will be squashed.
- Install seal for sliding roof (front roof assembly) -1-
.

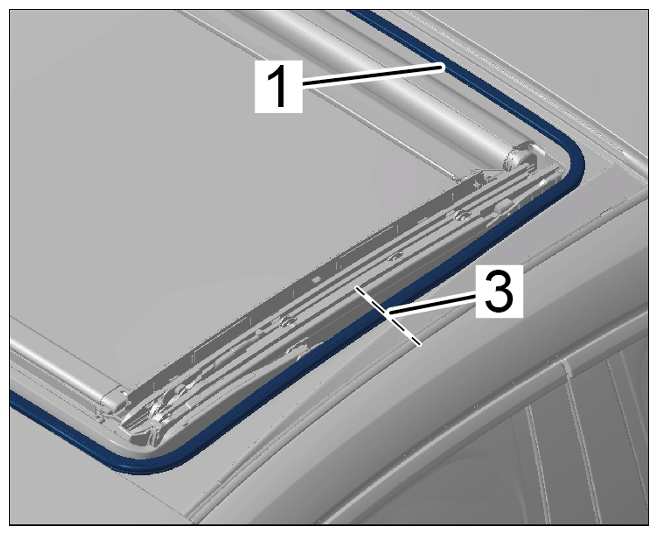

- 1.1 Position new sliding roof seal (front roof assembly) -1-
on the middle of the roof at the left -3-
and fit it all the way around.
Information
Pull off protective film from the adhesive tape in sections only and at the same time press the sliding roof seal (front roof assembly) onto the roof cut-out for the sliding roof with the help of another person.
- 1.2 Lift seal for sliding roof (front roof assembly) -1- in the area at the middle of the roof at the left -3- , pull off protective film at the left and right and press on seal for sliding roof (front roof assembly) -1- .
- 1.3 Press on seal for sliding roof (front roof assembly) -1- over its entire length without tension in accordance with the contour of the sliding roof.
- 1.1 Position new sliding roof seal (front roof assembly) -1-
on the middle of the roof at the left -3-
and fit it all the way around.
Installing seal for sliding roof (front roof assembly)
