Removing Front Panoramic Roof Glass Panel

Information

• The procedure for removing car windows is described in

  > 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS

Information

The component cannot be removed without damaging it and must always be replaced.

1. Open sliding roof.

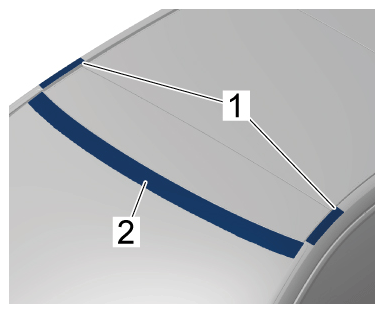

2. Mask the roof pillar -1-  and windscreen -2-  with adhesive tape.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Masking roof pillar

   Information

   • Cut carefully. Do not damage the paintwork or windscreen.

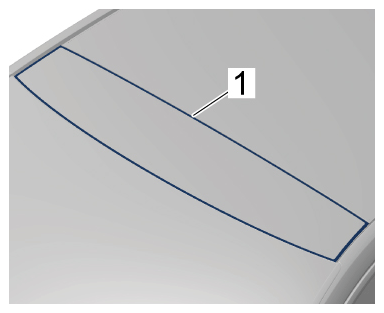

3. Cut off the foam surround -1-  around the front panoramic roof glass panel using a cutter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Foam surround

4. Cut out front panoramic roof glass panel.

   Information

   • Cut carefully. Do not damage the paintwork or windscreen.

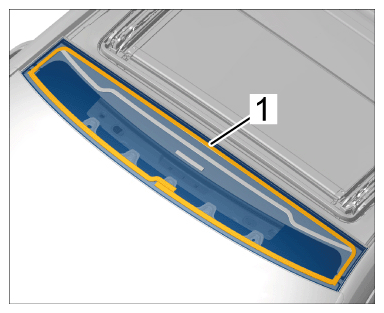

   1. 4.1 Cut outer adhesive bead -1-  all the way around using > V.A.G 1561B - Electric cutter  and angled blade.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Adhesive bead

      Information

      • Cut carefully. Do not damage the paintwork or windscreen.

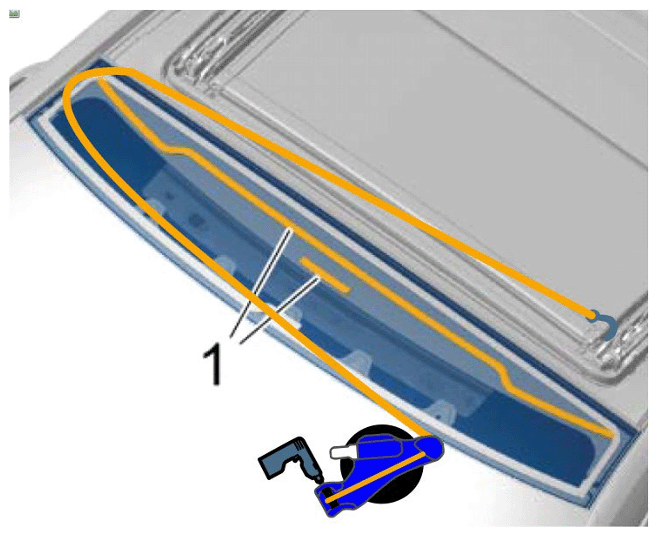

   2. 4.2 Cut half-way through inner adhesive bead -1-  using > VAS 861 001A - Window removal set  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Inner adhesive bead

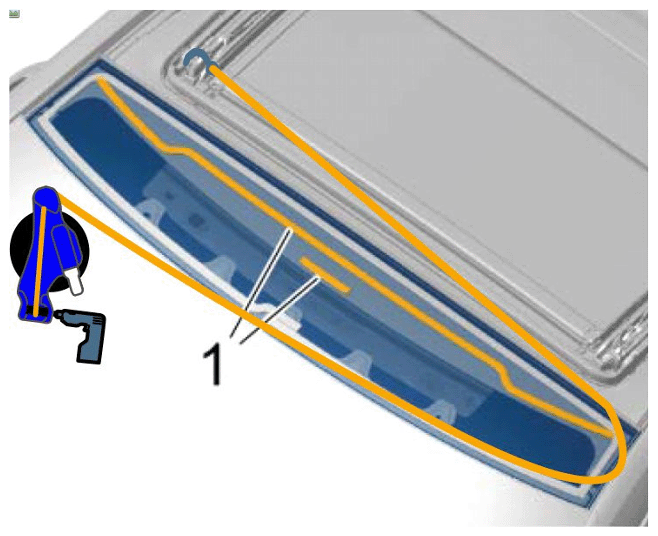

   3. 4.3 Cut through the second half of the inner adhesive bead -1-  using > VAS 861 001A - Window removal set  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner adhesive bead

5. Remove front panoramic roof glass panel.
