Preliminary Work
WARNING: This page is about a different variant/trim than selected.
Information
- Repair illustrations show one side of the vehicle or describe a similar component.
- Complete certain steps on the opposite side of the vehicle as well.

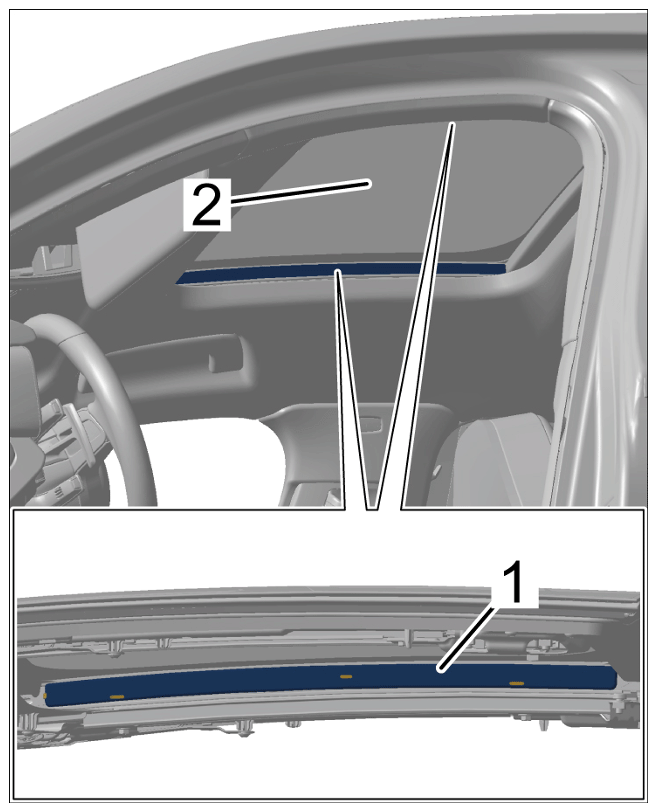

- Raise sliding-roof panel -2-
until the side covers -1-
are accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing side covers
- Remove side cover.

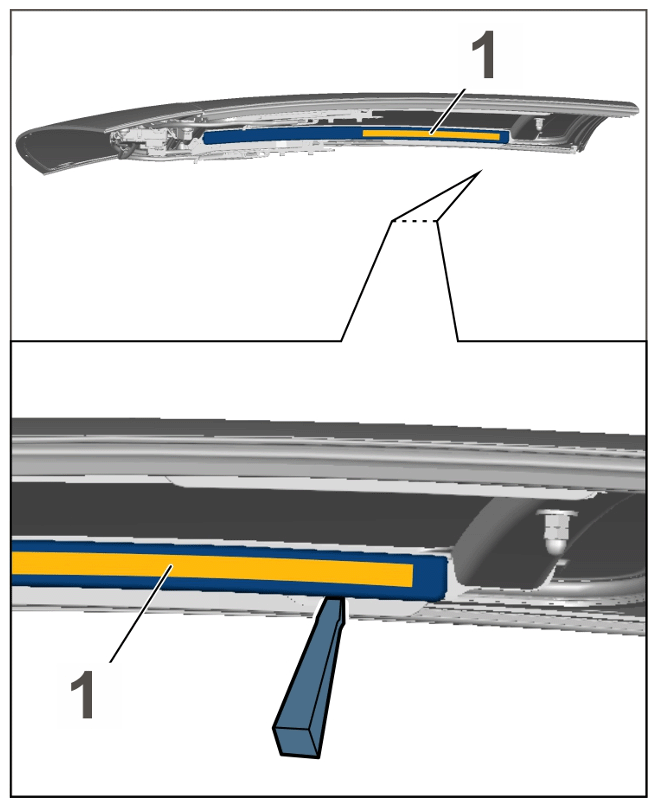

- 2.1 Loosen bonding area -1-
of the side covers using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding area of side cover
- 2.2 Unclip side cover -1-
starting at the rear and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing side covers
