Adjusting Sliding-Roof Panel

WARNING: This page is about a different variant/trim than selected.

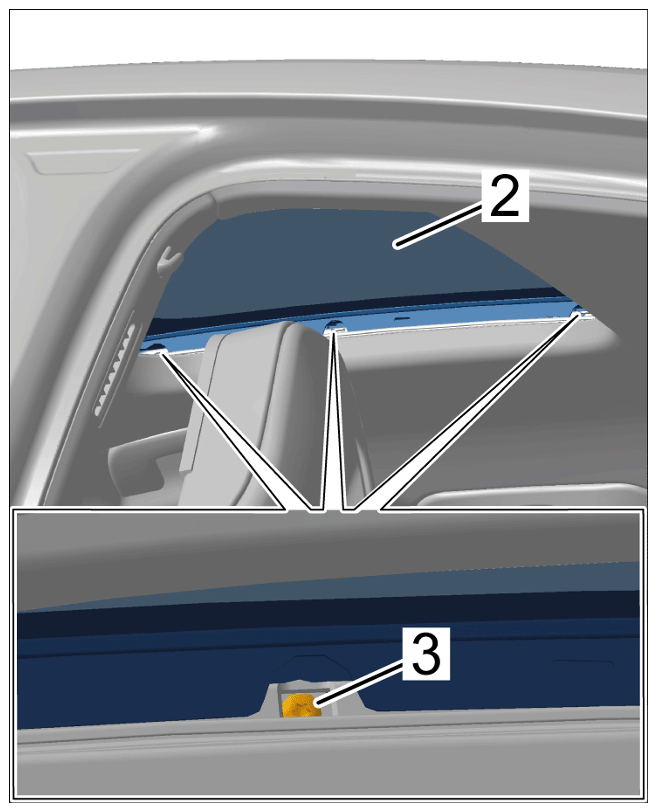

Close sliding-roof panel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts
Loosen screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts

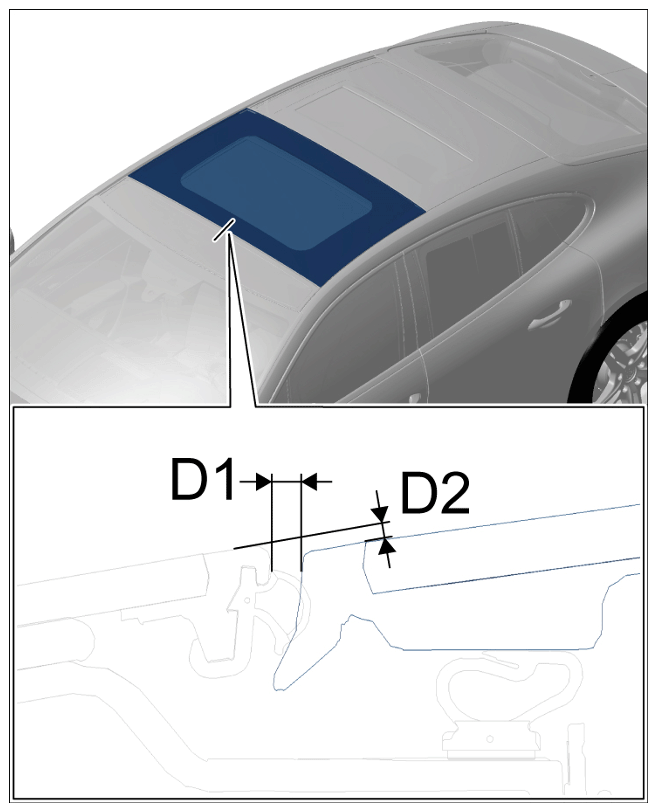

Adjust the front sliding-roof panel by moving the panel.
> Gap dimension 3 mm +/- 0.9 mm

> Gap dimension 1.2 mm +/- 0.9 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

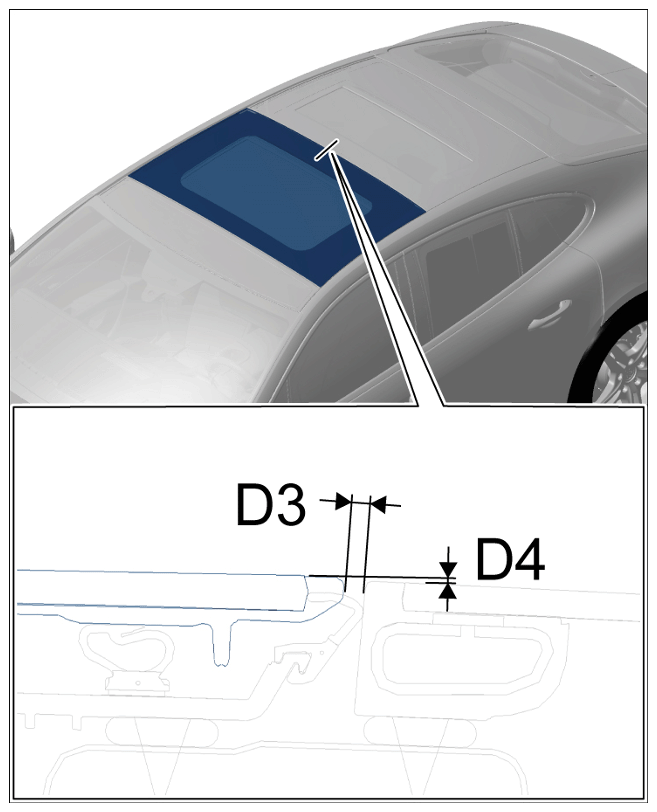

Adjust the rear sliding-roof panel by moving the panel.
> Gap dimension 3 mm +/- 0.9 mm

> Gap dimension 0.5 mm +/- 0.9 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
Tighten screw securing sliding-roof panel to guide rail > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
