Installing Powered Sunroof Mechanism

WARNING: This page is about a different variant/trim than selected.

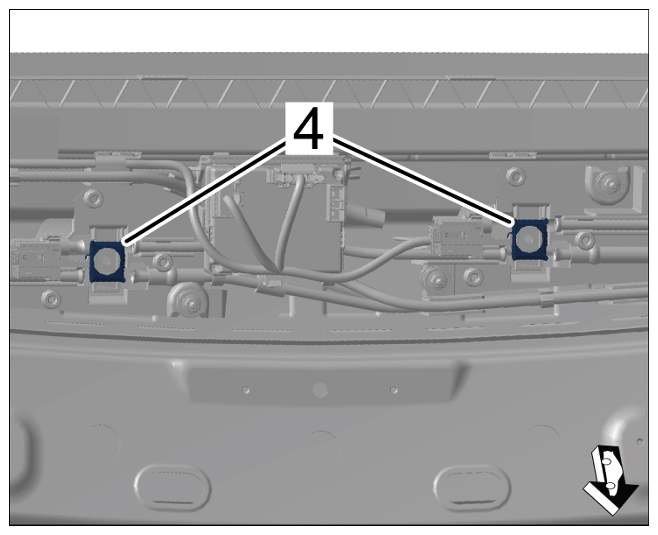

Guide drive cables for (front) sun blind and glass sliding roof into the guides.
Also check that the guide pieces -4- are fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting drive cables into guides

Information

There must be no play between the powered sunroof mechanism and cable guide holder.

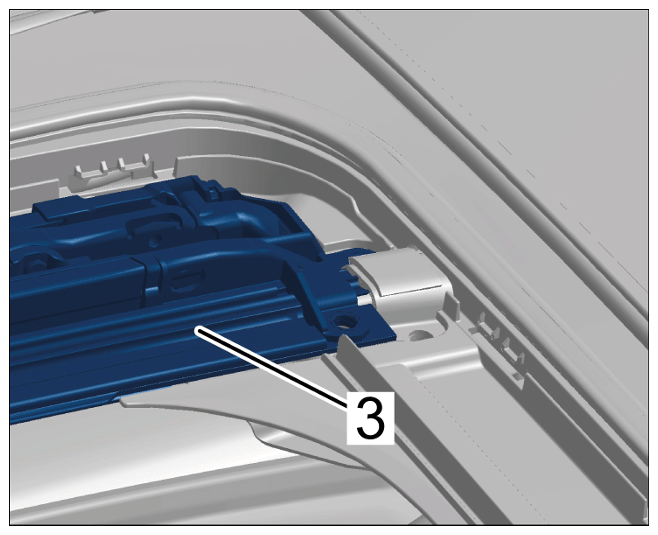

Push powered sunroof mechanism -3- into the roof assembly as far as the cable guide holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pushing powered sunroof mechanism into cable guide holder
Screw in and tighten screws > Tightening torque 2.5 Nm (1.8 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
Screw in and tighten nuts > Tightening torque 2.4 Nm (1.8 ftlb.) +/- 0.1 Nm (0.07 ftlb.)
