Adjusting (Front) Sun Blind
WARNING: This page is about a different variant/trim than selected.
Information
The adjustment procedure must be repeated as often as required until the position of the left and right drivers with respect to each other is within the tolerance range.

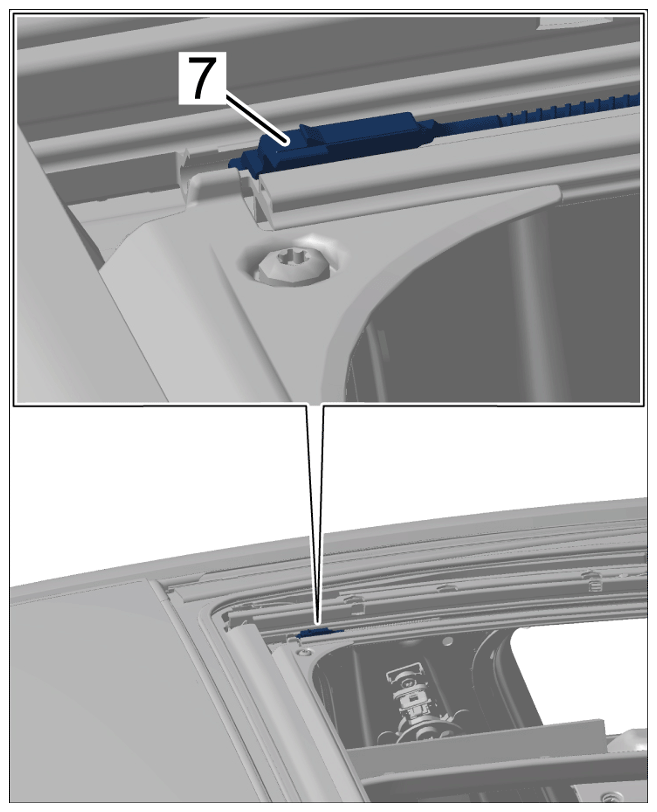

- Move both (front) sun blind drivers -7-
at the left and right back fully until the (front) sun blind drivers -7-
end flush with the rail.
Adjusting (front) sun blind drivers
- Install motor for (front) sun blind, but do not connect electric plug connection.
> 607219 REMOVING AND INSTALLING MOTOR FOR (FRONT) SUN BLIND
- Check the position of the (front) sun blind drivers -7-
at the left and right.
- 3.1 Extend the (front) sun blind manually until both (front) sun blind drivers -7- are visible in the opening.
- 3.2 Compare the position of the (front) sun blind drivers -7- at the left and right > Measured value 0 mm +/- 1 mm
Adjusting (front) sun blind drivers
Information
The adjustment procedure must be repeated as often as required until the position of the left and right drivers with respect to each other is within the tolerance range.
- If the position of the (front) sun blind drivers -7- at the left and right is not within the tolerance range:
Adjust the position of the (front) sun blind drivers -7- at the left and right.
- 4.1 Remove motor for (front) sun blind.
> 607219 REMOVING AND INSTALLING MOTOR FOR (FRONT) SUN BLIND
- 4.2 Adjust the position of the (front) sun blind drivers -7- at the left and right.
- 4.3 Install motor for (front) sun blind, but do not connect electric plug connection.
> 607219 REMOVING AND INSTALLING MOTOR FOR (FRONT) SUN BLIND
- 4.4 Completely close and open the (front) sun blind manually once.
- 4.5 Compare the position of the (front) sun blind drivers -7- at the left and right > Measured value 0 mm +/- 1 mm
Adjusting (front) sun blind drivers
