Removing Air Deflector (Acoustic Cover)
WARNING: This page is about a different variant/trim than selected.
- Unclip spring -1-
from acoustic cover -2-
using a suitable tool -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

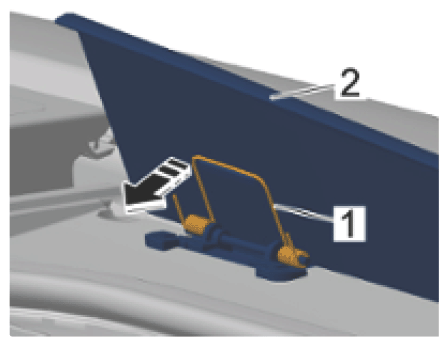

Unclipping spring
- Remove acoustic cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

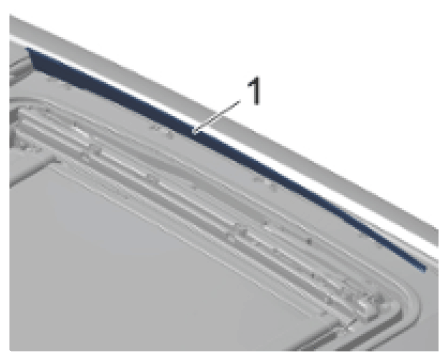

Removing acoustic cover
