Welding Parameters For Pulling Punch Rivets

WARNING: This page is about a different variant/trim than selected.

Bolt	Welding time [ms]	Amperage rating [A]	Lift [mm]	Gas preflow time [ms]	Gas parameters [l/min]	Power terminal	Ground terminal	Polarity
Stainlesssteel bolt, M6	32	650	1.0	1000	10	Component	Gun	Polarity reversed
Stainlesssteel bolt, M5	30	600	1.0	1000	10	Component	Gun	Polarity reversed

2 Weld the stainless steel stud onto the rivet head of the punch rivet.
> 5X00IN11 STUD WELDING

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

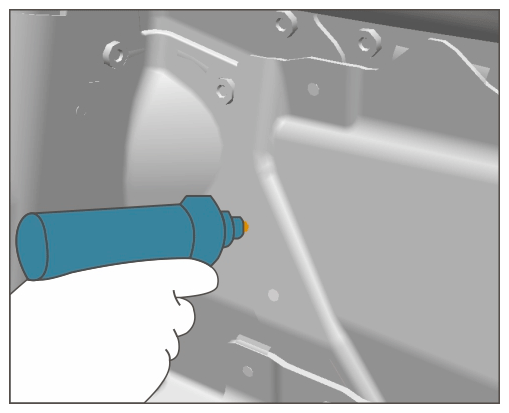

Welding on weld stud

Information

If there is also adhesive in the joint area of the punch rivet, heat it using a > V.A.G 1416 - hotair blower to make it easier to pull it out and prevent the stainless steel pin from breaking.
3 Pull out punch rivet at the welded-on weld stud using a hydraulic riveting tool > VAS 6790 - Compact booster with tool attachment > VAS 6792/2 - Extension .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

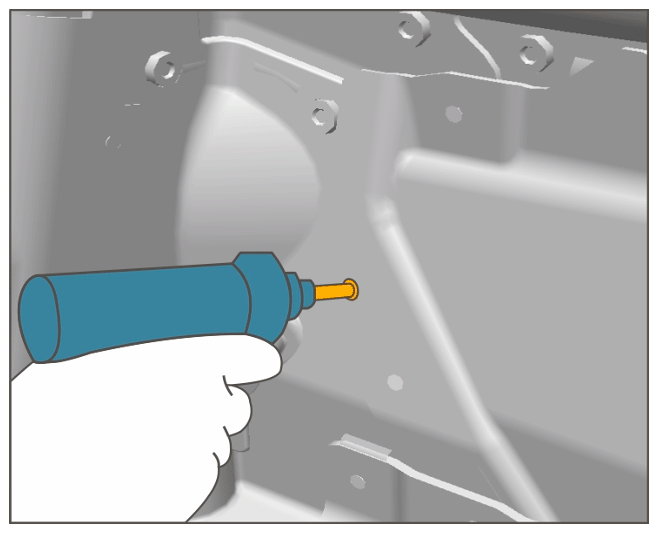

Pulling punch rivet
