Technical Values For Underbody Cover

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

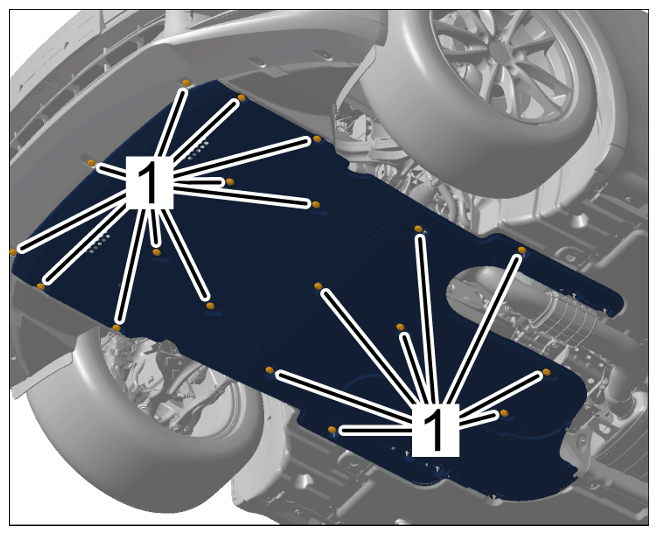

Screws for cover on front underbody	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for cover on front underbody

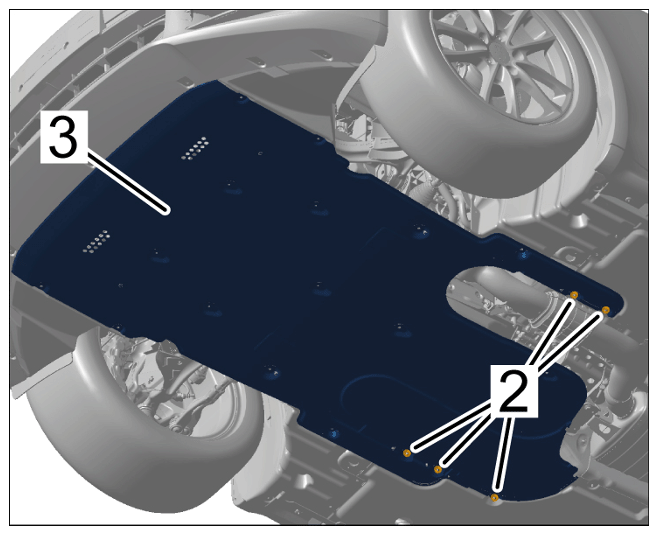

Nuts for cover on front underbody	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for cover on front underbody

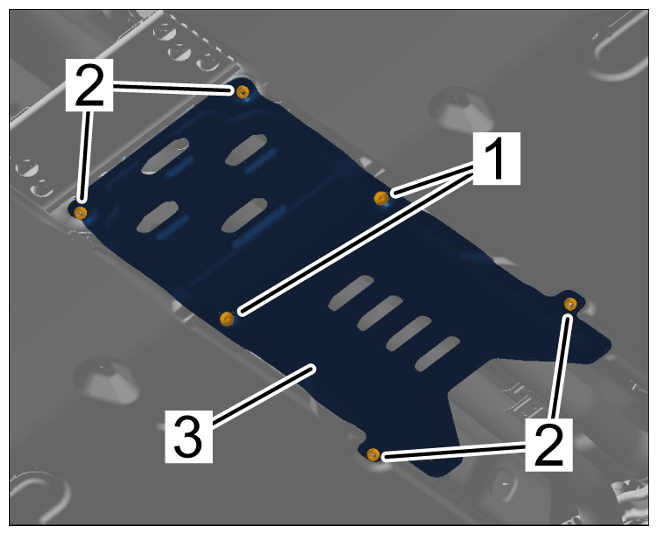

Screws for tunnel cover on centre underbody	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for tunnel cover on centre underbody cover
Nuts for tunnel cover on centre underbody cover	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for tunnel cover on centre underbody cover

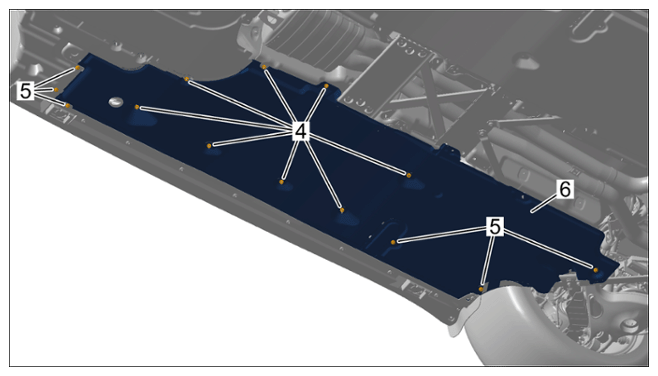

Nuts for centre underbody cover (at the sides)	Item 4	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for centre underbody cover (at the sides)
Screws for centre underbody cover (at the sides)	Item 5	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for centre underbody cover (at the sides)

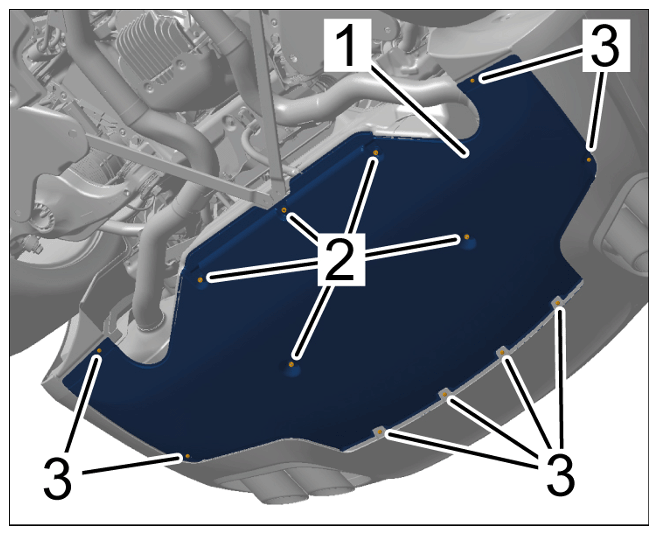

Nuts for rear underbody cover	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for rear underbody cover
Screws for rear underbody cover	Item 3	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear underbody cover
