Technical Values - Rear Lid

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

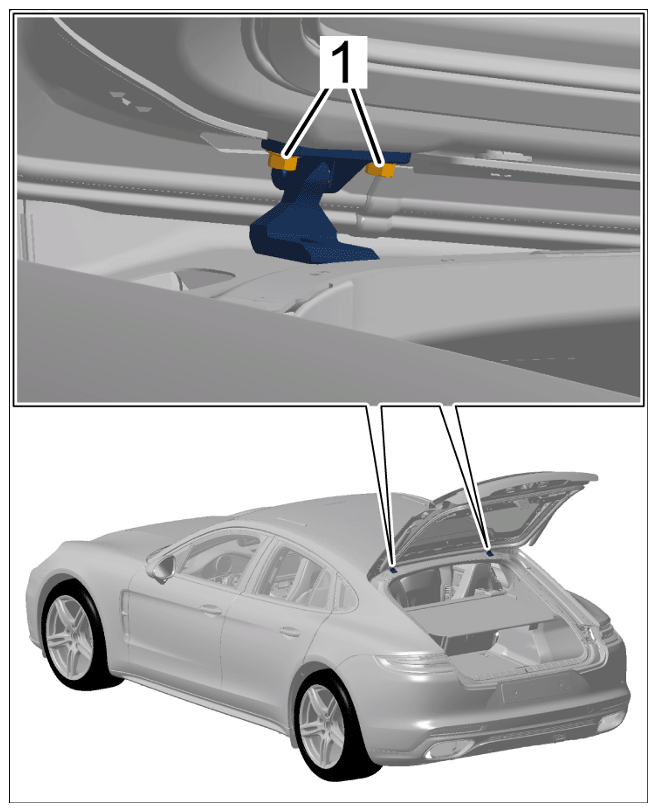

Screws securing tailgate hinge to rear lid	Item 1	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing tailgate hinge to rear lid

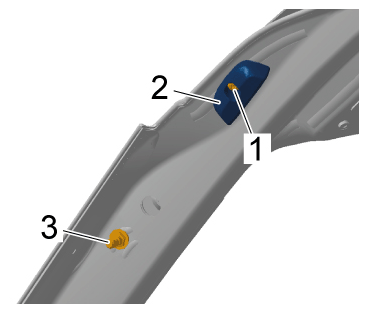

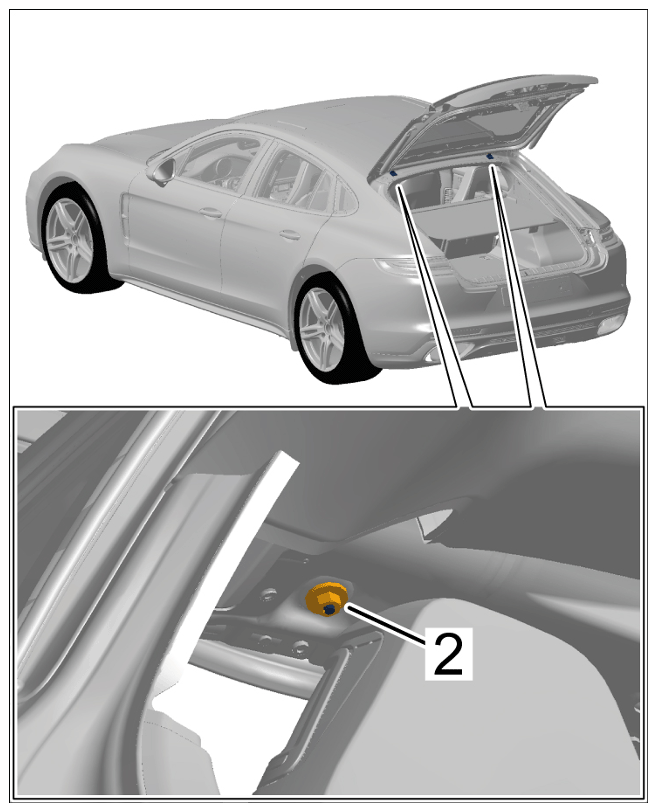

Nut on rear tailgate hinge	Item 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear tailgate hinge
Rear lid adjusting element screw	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear lid adjusting element

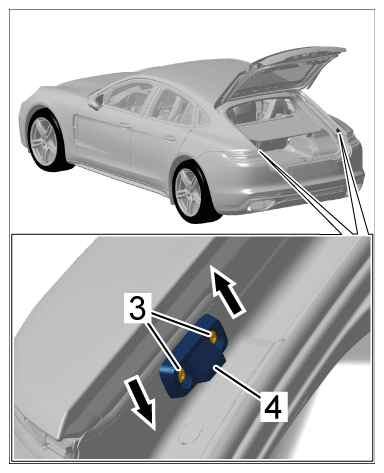

Rear cover adjuster screws	Item 3	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening bolts
Rear cover ball pin	Item 3	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball pin on rear lid

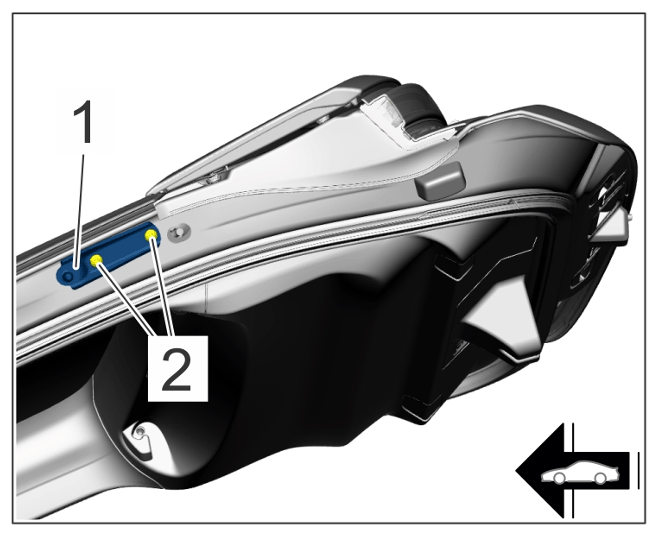

Screws securing ball joint holder to rear cover	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball joint

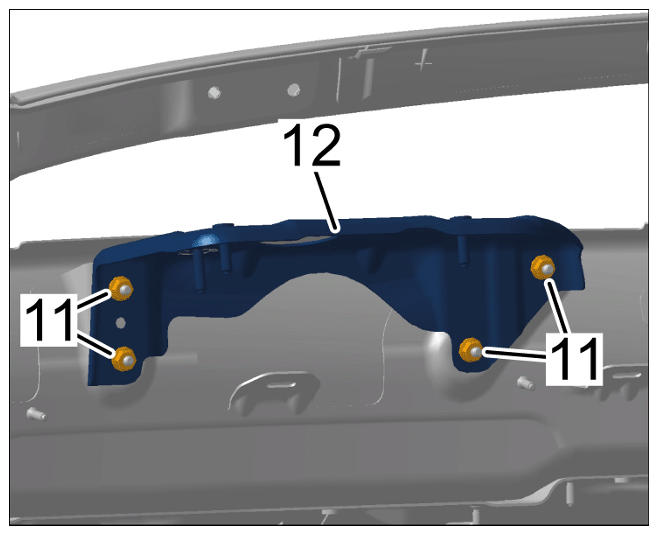

Nut on wiper motor holder	Item 11	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing retaining bracket for windscreen wiper motor

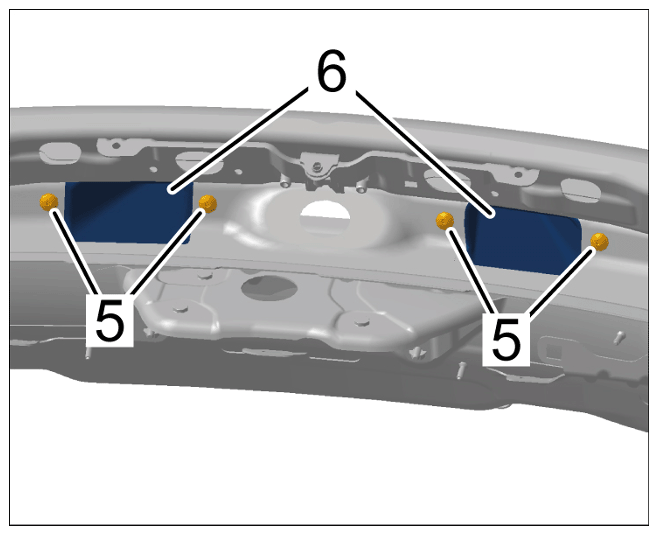

Screw for water drain sleeve on spoiler drive	Item 5	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for water drain sleeve on spoiler drive

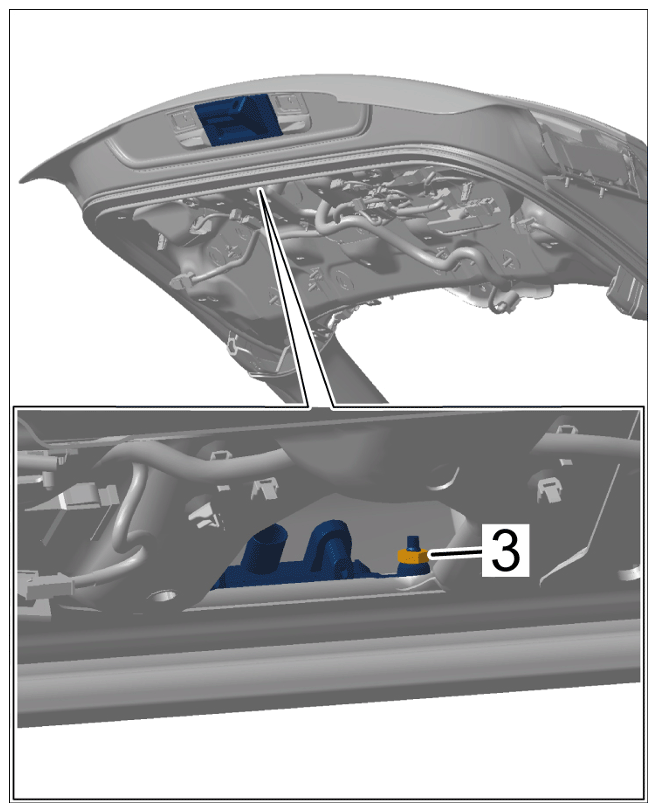

Nut on rear lid release	Item 3	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear lid release

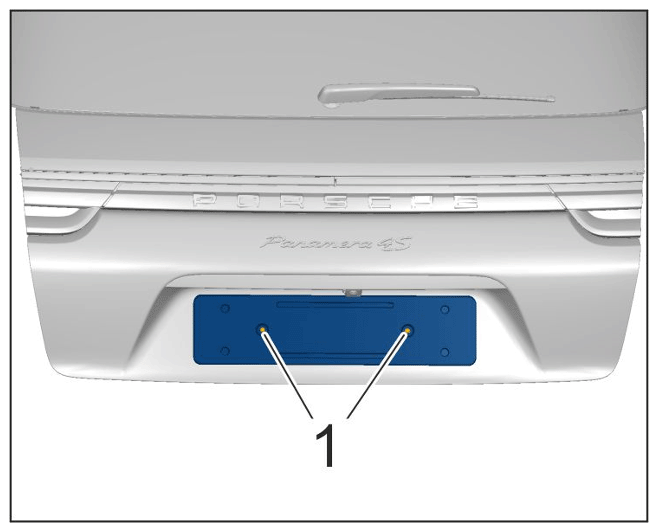

Number plate trim for Sport Turismo		Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 10 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Number plate trim
