Technical Values - Rear Door

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screw on rear door lock peg	Item 2	Tightening torque	25 Nm (19 ftlb.)

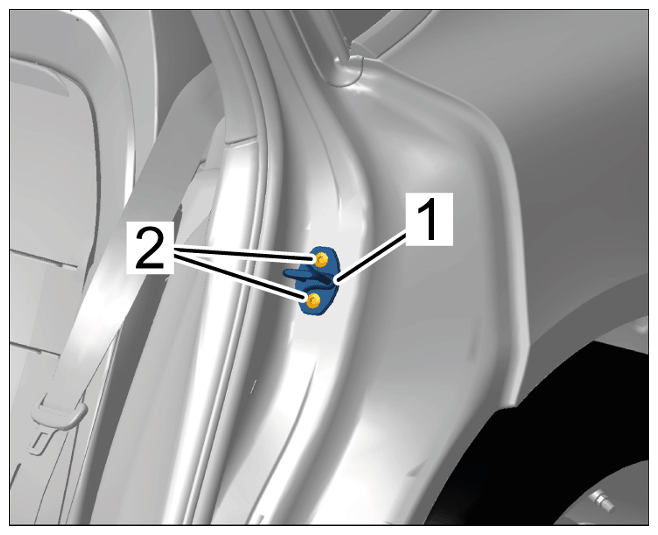

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear door lock peg
Screw securing closing aid motor to rear door	Item 2	Tightening torque	7.4 Nm (5.5 ftlb.)

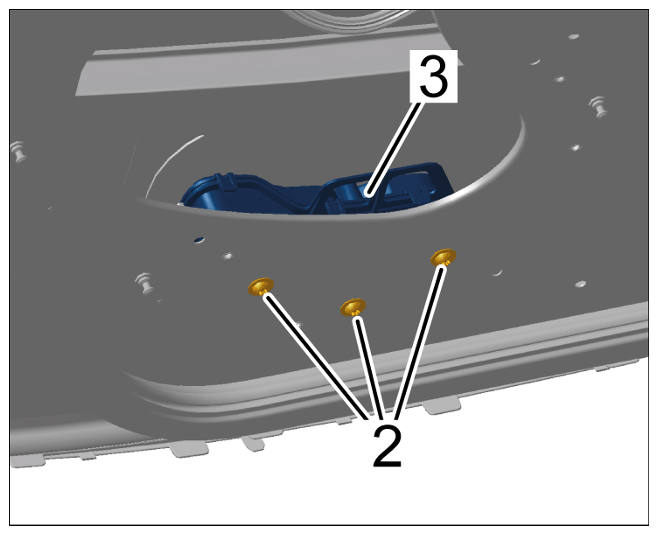

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing closing aid motor to rear door
Screw for closing aid motor in housing	Item 8	Tightening torque	7.4 Nm (5.5 ftlb.)

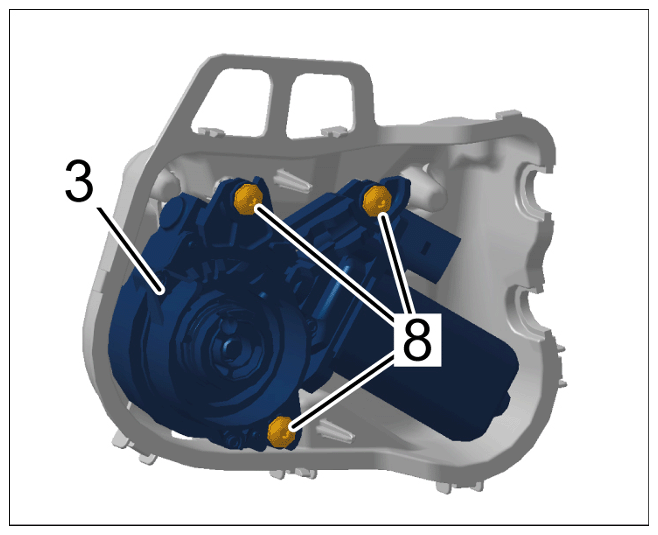

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing motor for closing aid
