Technical Values - Front Lid Hinge
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

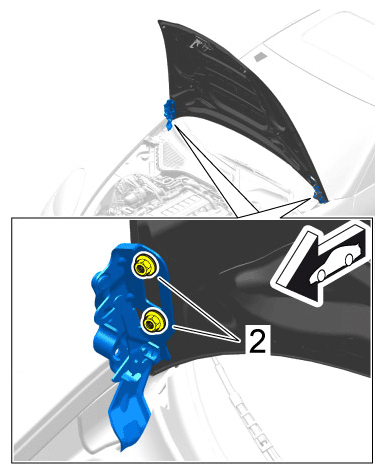

| Nuts securing hinge to front cover |
item 2 |
Tightening torque |
20 Nm (15 ftlb.) (14.8 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts securing hinge to front lid |

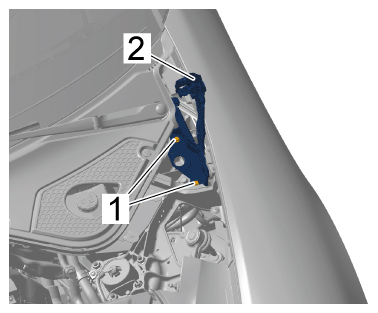

| Screws securing hinge bracket to body |
item 1 |
Tightening torque |
23 Nm (17 ftlb.) (17 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws securing hinge bracket to body |
