Rear Door

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

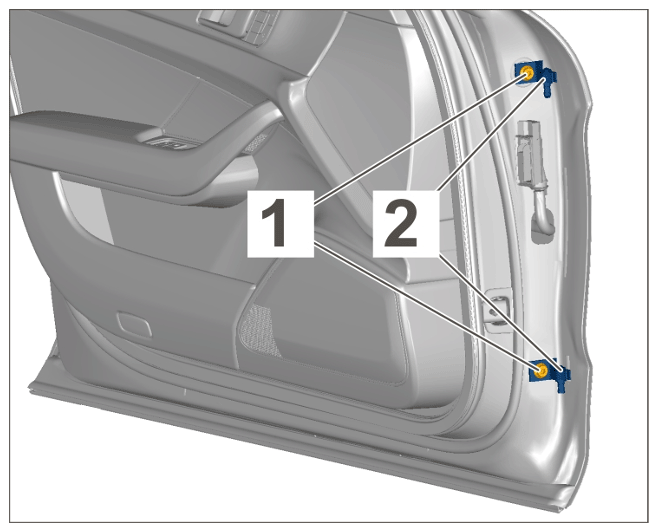

Fastening screw securing door hinge to door	Item 1	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on door side)

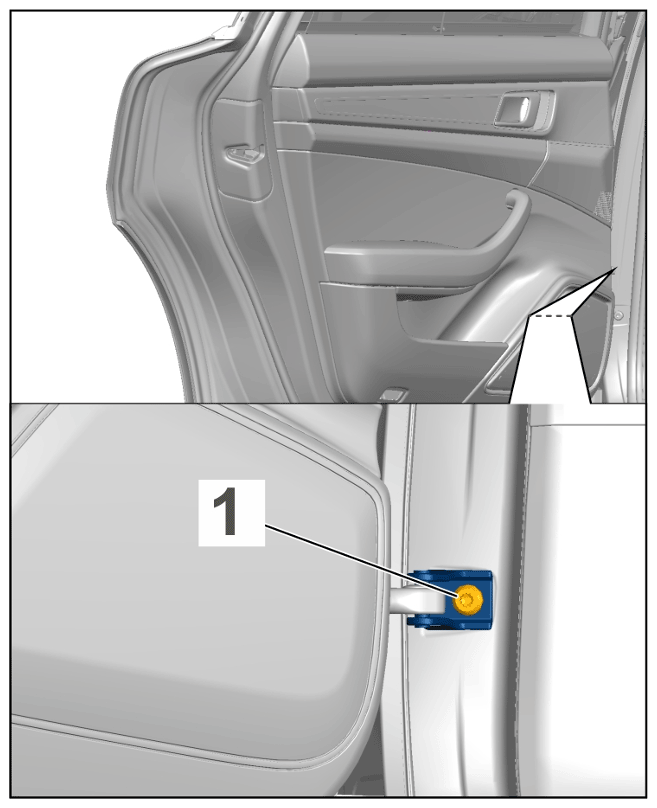

Fastening nut securing door hinge to body	Item 1	Tightening torque	60 Nm (44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)

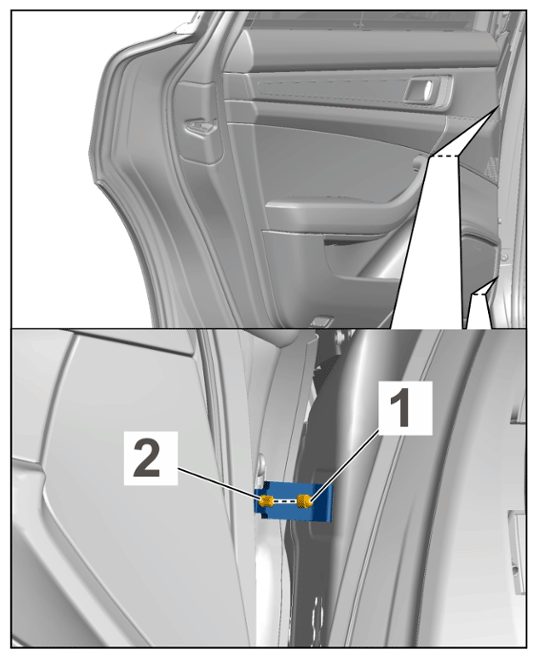

Fastening screw securing door hinge to body	Item 2	Tightening torque	60 Nm (44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screws for door hinge	Item 2	Tightening torque	27 Nm (20 ftlb.)	+/- 3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge

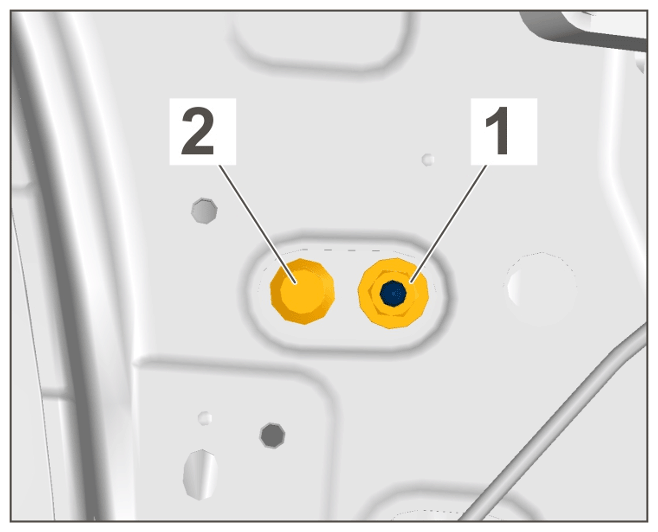

Fastening screw for door arrester	Item 1	Tightening torque	33 Nm (24 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door arrester
