Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...

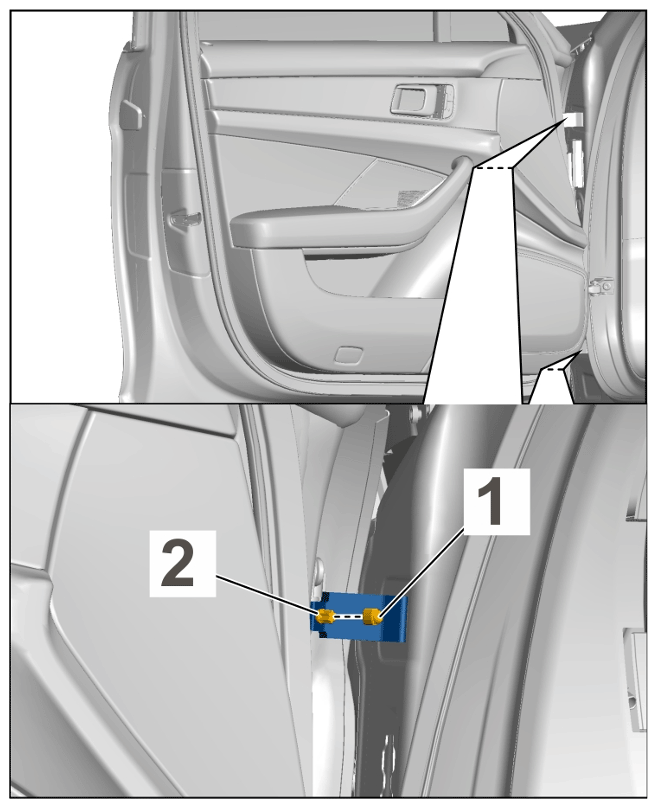

Fastening screws for door hinge Item 2 Tightening torque 27 Nm (20 ftlb.) +/- 3.5 Nm (2.5 ftlb.)
G15864259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door hinge

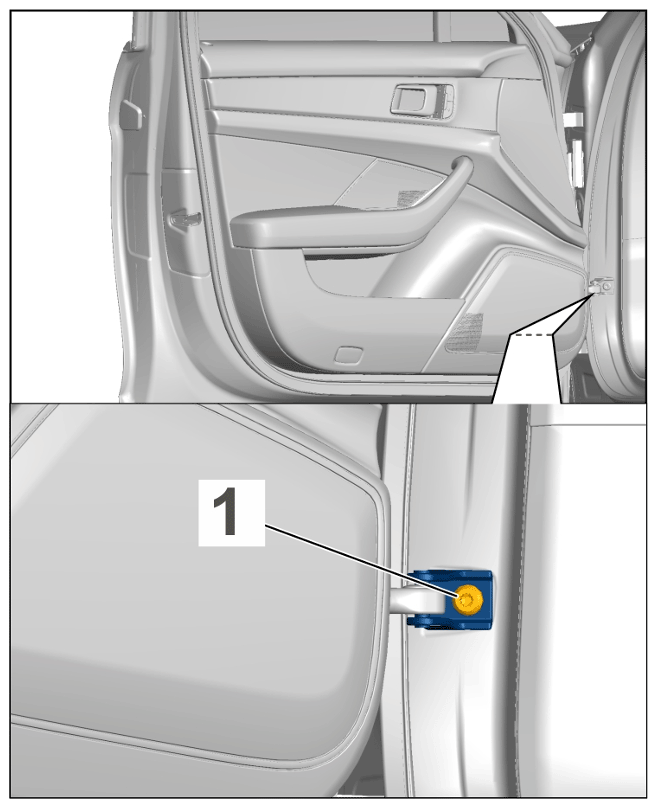

Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)
G15864260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door arrester

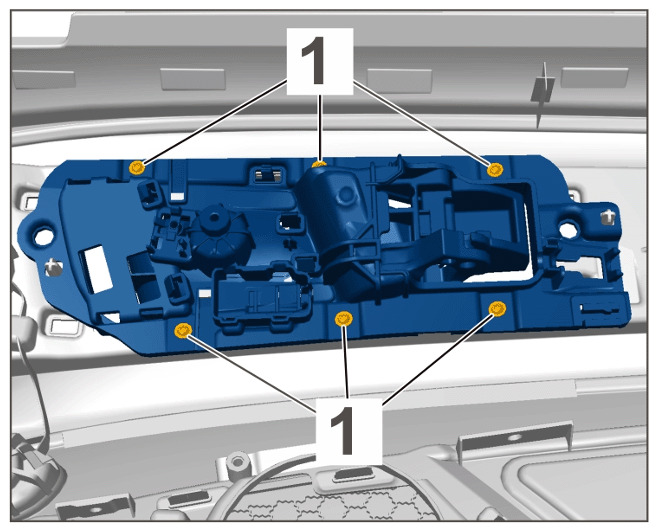

Door opener Item 1 Tightening torque 2.3 Nm (2 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15864261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door opener
Closing aid to basic door frame Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)

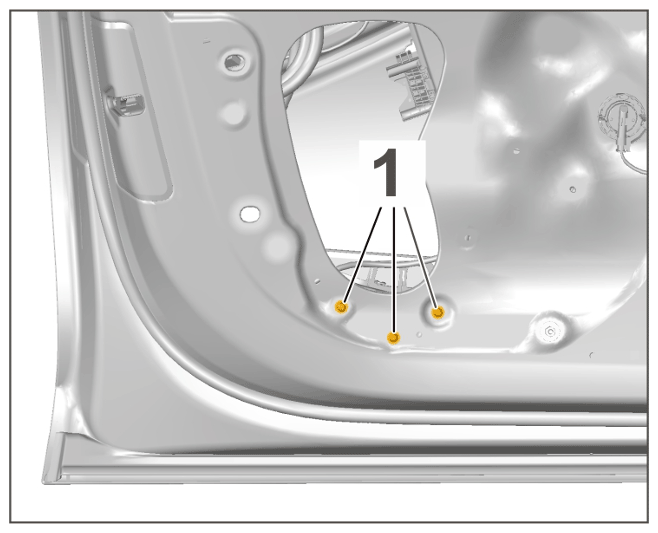

G15864262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for closing aid
Door lock to bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15864263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

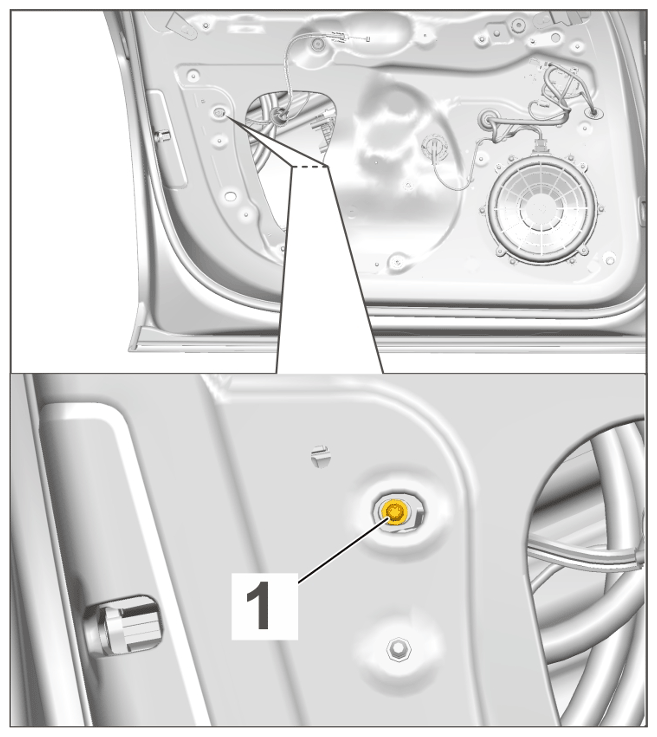

Door lock to guide rail Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

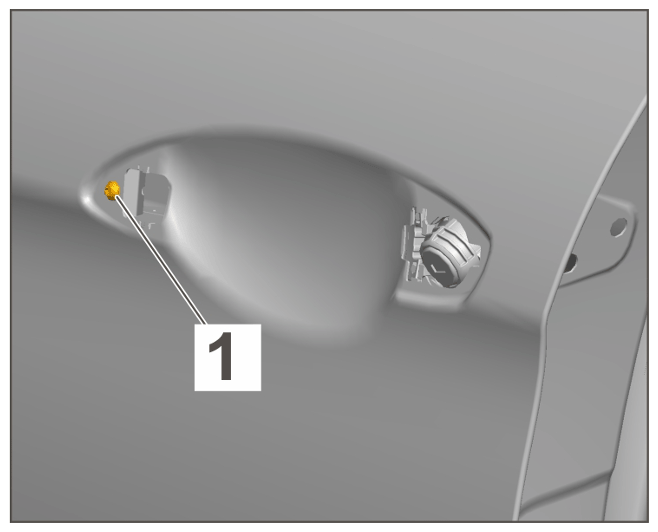

Fastening screw door handle Pos. 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15864265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

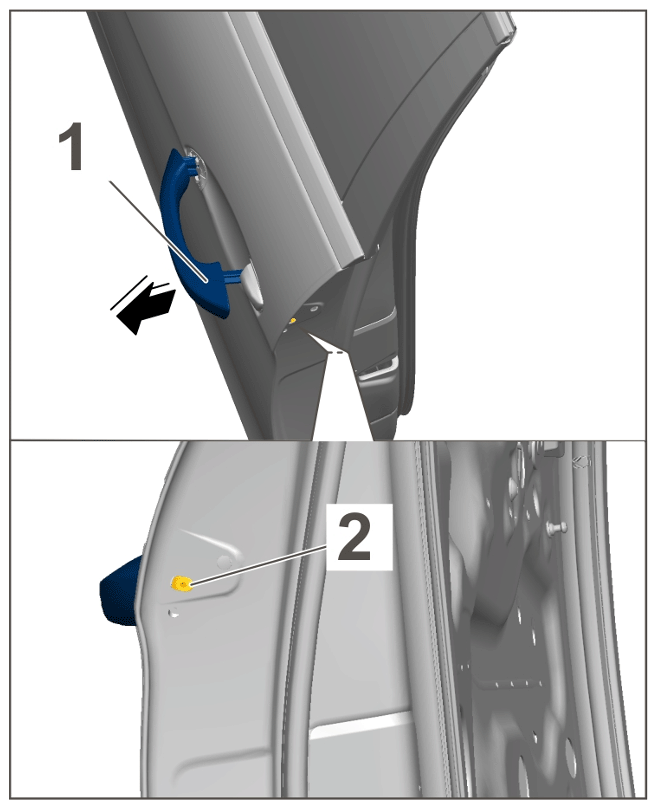

Adjusting bolt for door handle in service position Pos. 1 Tightening torque 5 Nm (3.7 ftlb.)
G15864266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle in service position

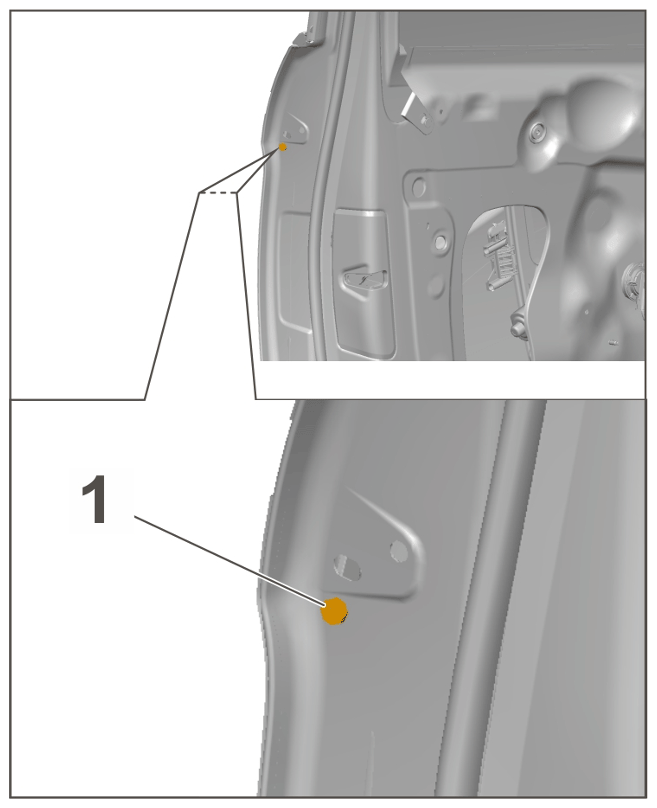

Tighten fastening screw for door handle in service position Pos. 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

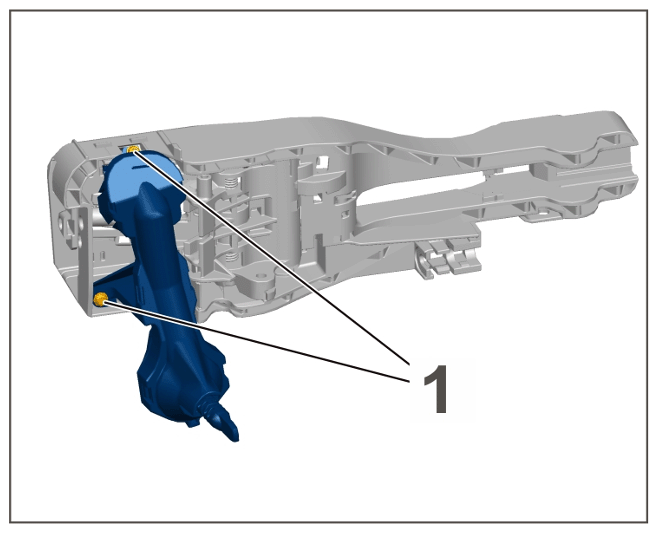

Deflection unit on door handle Pos. 1 Tightening torque 1.3 Nm (1 ftlb.)
G15864268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

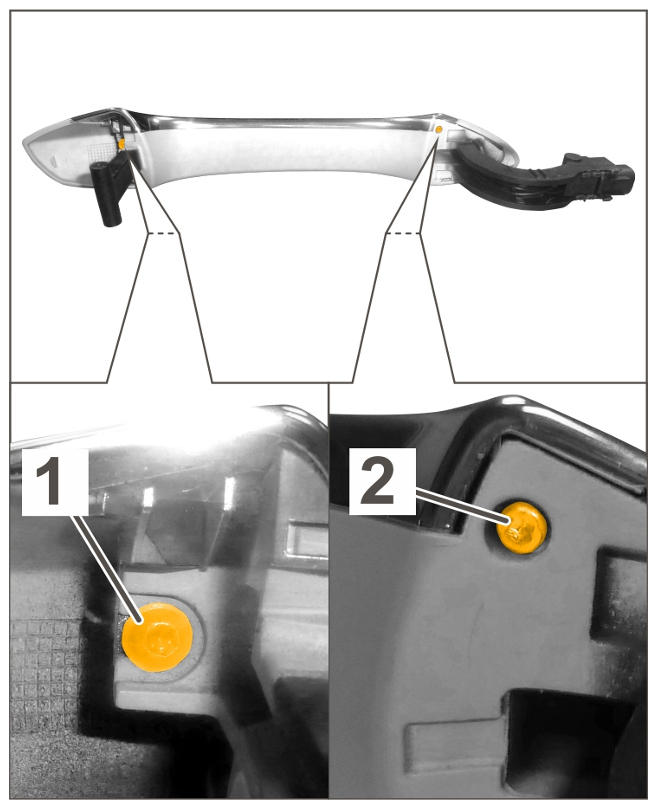

Screw trim panel Pos. 1 Tightening torque 0.7 Nm (0.5 ftlb.)
G15864269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw trim panel Pos. 2 Tightening torque 0.22 Nm (0.2 ftlb.)
G15864270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

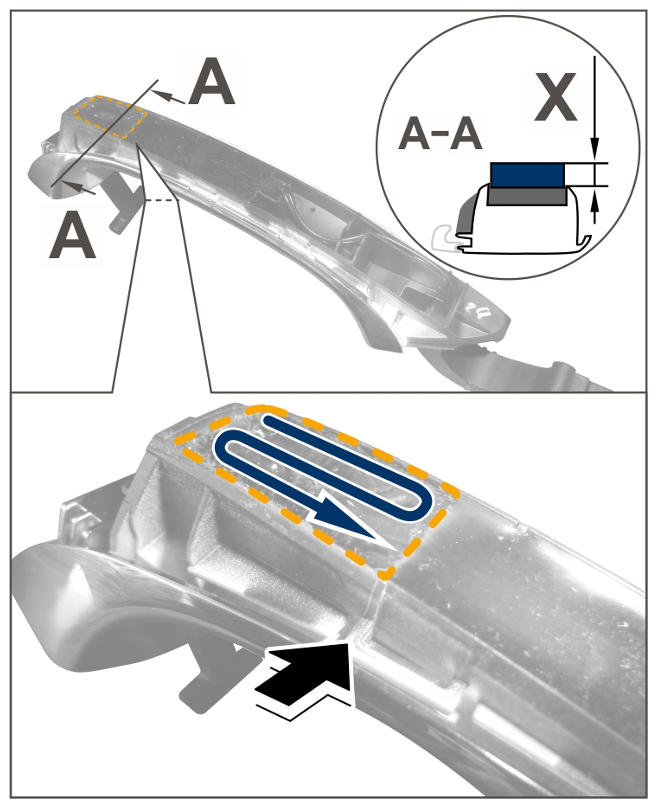

Door handle seal Kessy Pos. X Application depth 7 mm
G15864271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle adhesive
Fastening nut securing door hinge to body Item 1 Tightening torque 60 Nm (44 ftlb.)
G15864272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Fastening screw securing door hinge to body Item 2 Tightening torque 60 Nm (44 ftlb.)

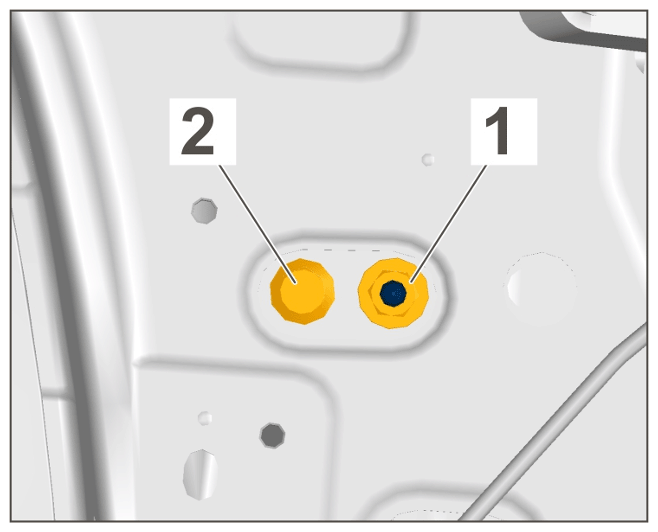

G15864273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)

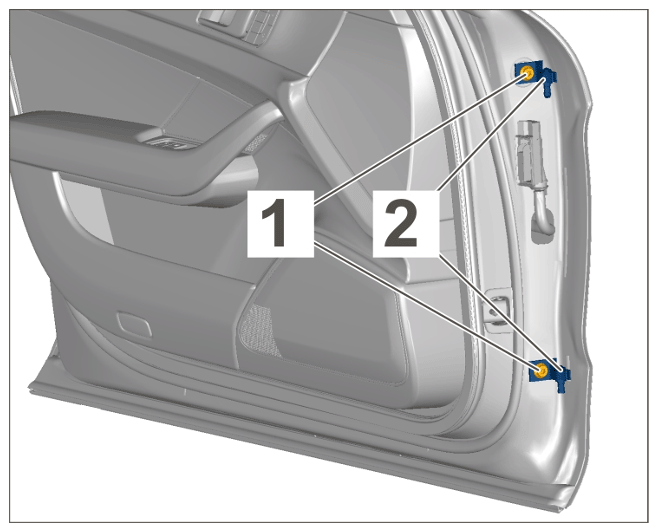

Fastening screw securing door hinge to door Item 1 Tightening torque 55 Nm (41 ftlb.)
G15864274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on door side)
Fastening screw securing door hinge to door Item 1 Tightening torque 55 Nm (41 ftlb.)
G15864275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on door side)
Fastening nut securing door hinge to body Item 1 Tightening torque 60 Nm (44 ftlb.)
G15864276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Fastening screw securing door hinge to body Item 2 Tightening torque 60 Nm (44 ftlb.)
G15864277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)

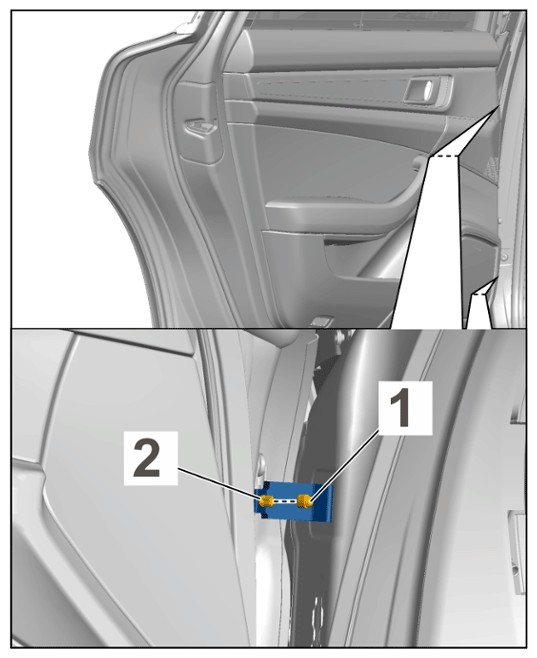

Fastening screws for door hinge Item 2 Tightening torque 27 Nm (20 ftlb.) +/- 3.5 Nm (2.5 ftlb.)
G15864278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge

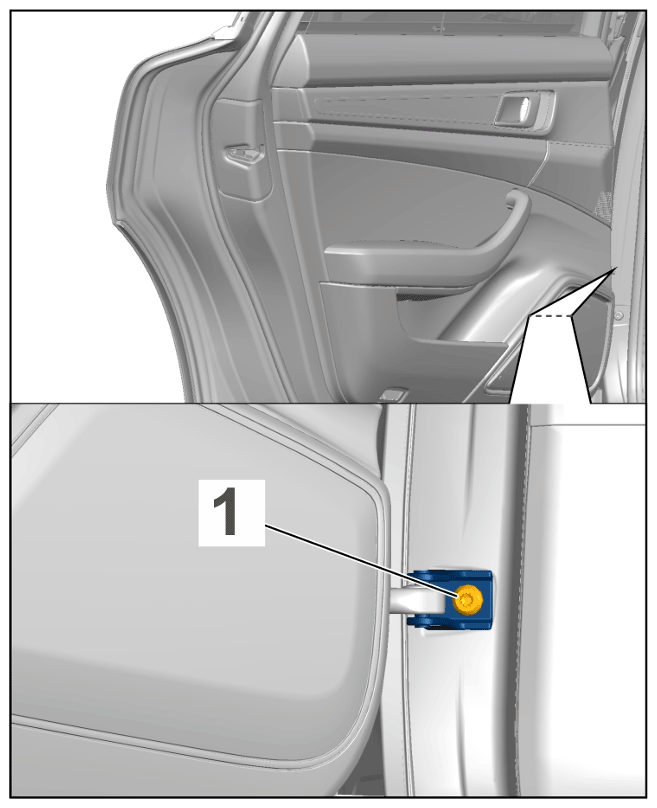

Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)
G15864279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door arrester

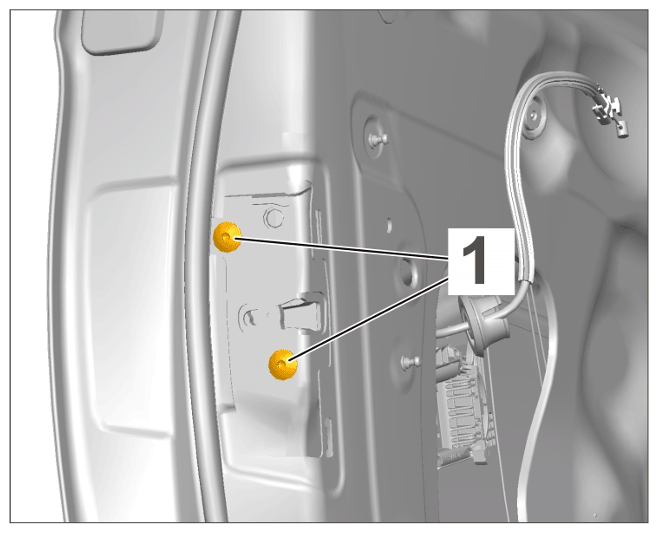

Door lock to bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15864280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Screw securing reinforcement to module carrier Item 1 Tightening torque 20 Nm (15 ftlb.)

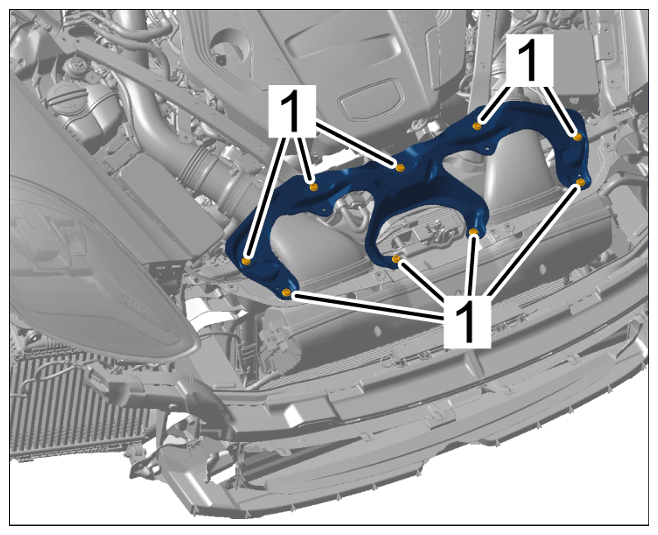

G15864281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Reinforcement on module carrier

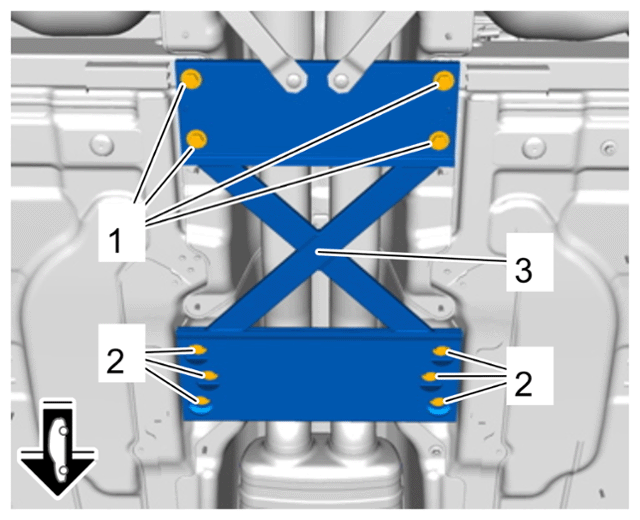

Screws for reinforcement strut on tunnel bridge Items 1 and 2 Tightening torque 50 Nm (37 ftlb.)
G15864282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for reinforcement strut on tunnel bridge

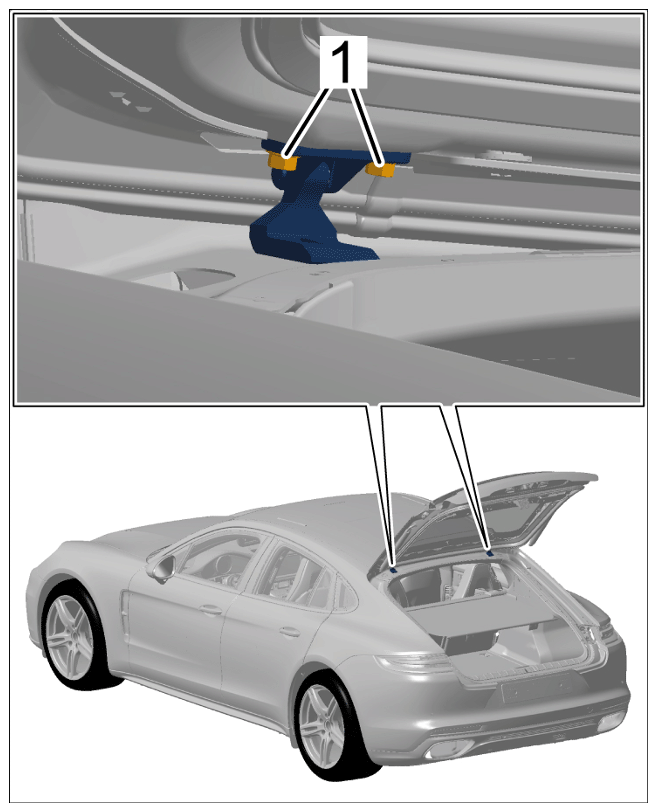

Screws securing tailgate hinge to rear lid Item 1 Tightening torque 10 Nm (7.4 ftlb.)
G15864283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing tailgate hinge to rear lid

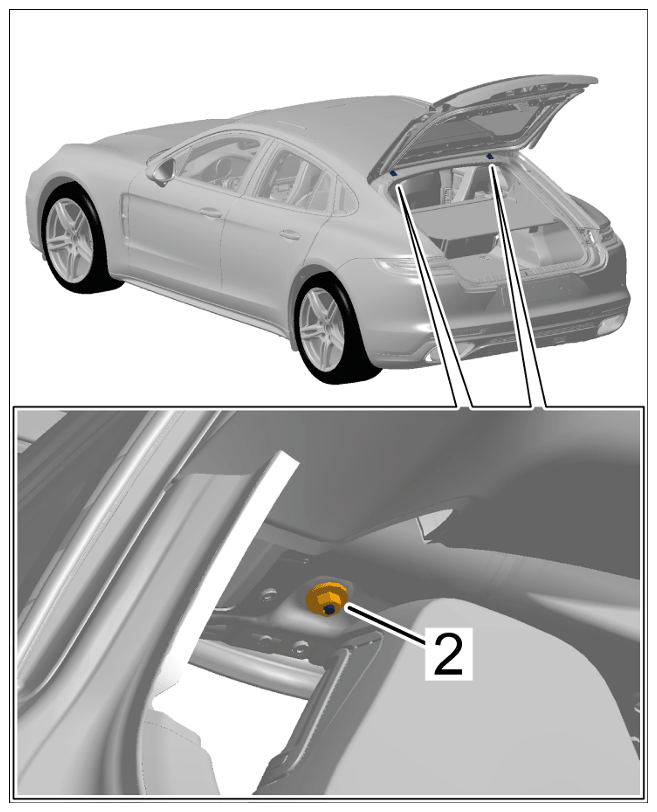

Nut on rear tailgate hinge Item 2 Tightening torque 20 Nm (14.8 ftlb.)
G15864284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear tailgate hinge
Rear lid adjusting element screw Item 1 Tightening torque 6 Nm (4.4 ftlb.)
G15864285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear lid adjusting element

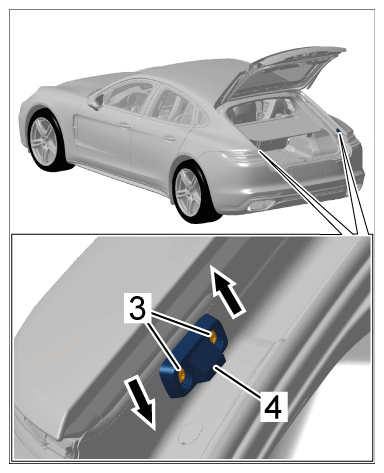

Rear cover adjuster screws Item 3 Tightening torque 6 Nm (4.4 ftlb.)
G15864286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts

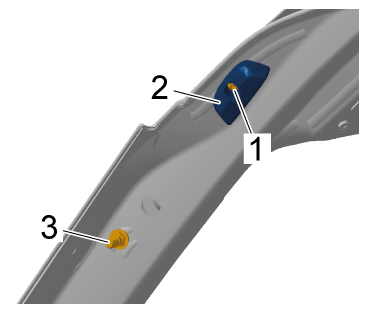

Rear cover ball pin Item 3 Tightening torque 23 Nm (17 ftlb.)
G15864287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball pin on rear lid

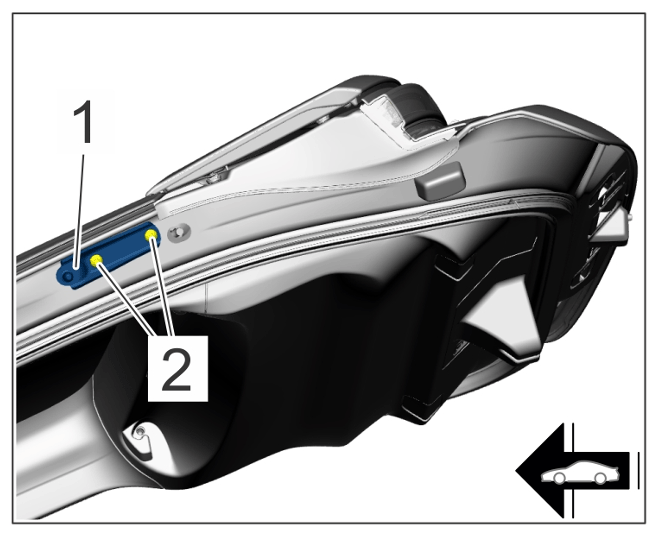

Screws securing ball joint holder to rear cover Item 2 Tightening torque 10 Nm (7.4 ftlb.)
G15864288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball joint

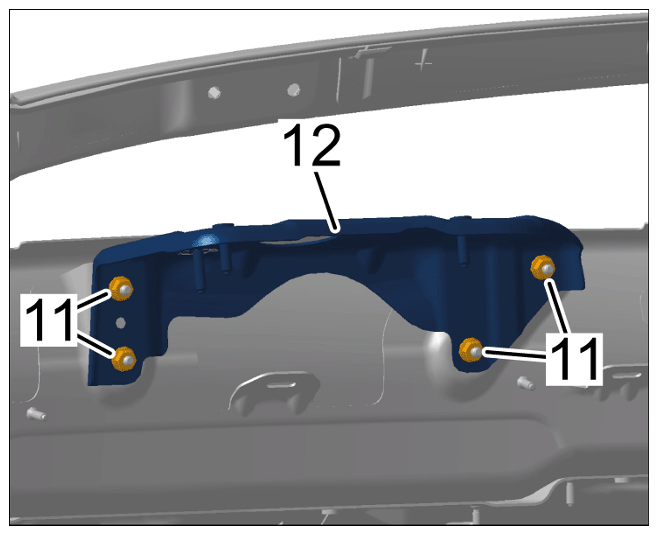

Nut on wiper motor holder Item 11 Tightening torque 8 Nm (5.9 ftlb.)
G15864289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining bracket for windscreen wiper motor

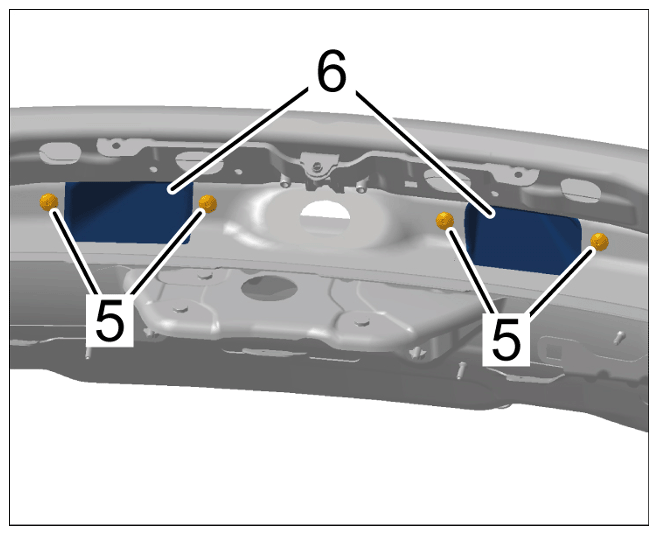

Screw for water drain sleeve on spoiler drive Item 5 Tightening torque 4 Nm (3 ftlb.)
G15864290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for water drain sleeve on spoiler drive

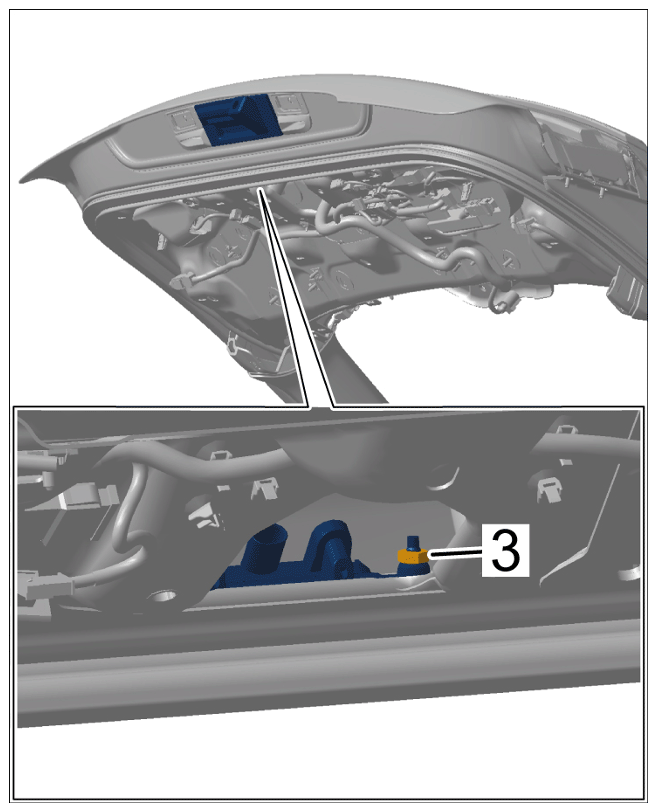

Nut on rear lid release Item 3 Tightening torque 4 Nm (3 ftlb.)
G15864291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear lid release
Number plate trim for Sport Turismo   Tightening torque 2.5 Nm (1.8 ftlb.) +/- 10 %

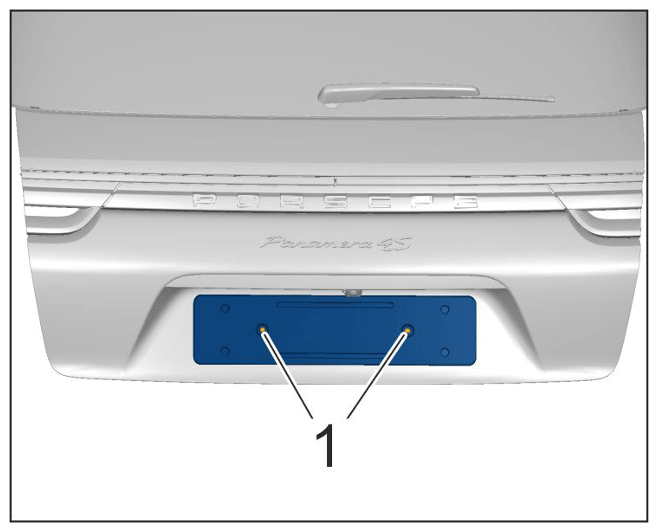

G15864292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate trim

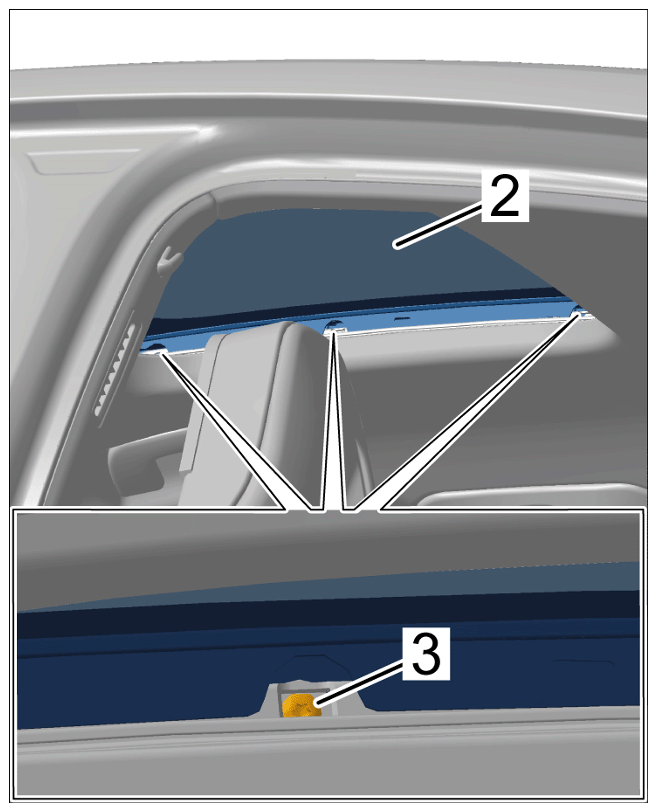

Screw securing sliding-roof panel to guide rail Item 3 Tightening torque 0 Nm (0 ftlb.)
G15864293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sliding-roof panel

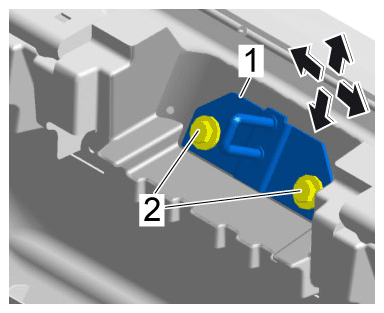

Screws on lower part of lock Item 2 Tightening torque 20 Nm (15 ftlb.)
G15864294Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of lid lock

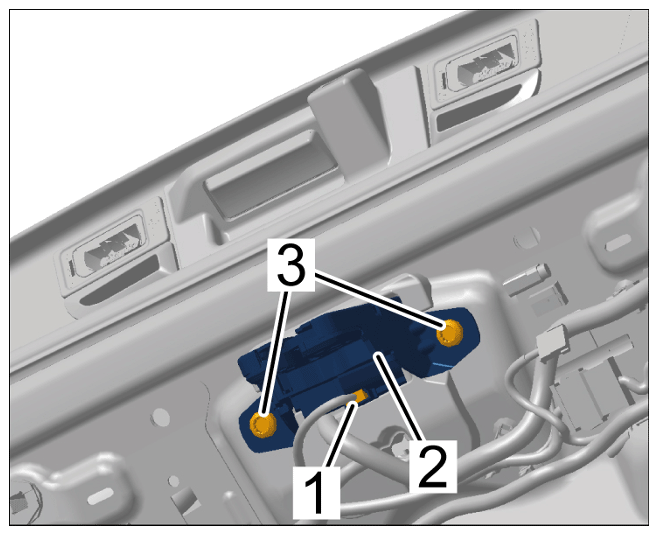

Screws on upper part of lock Item 3 Tightening torque 20 Nm (15 ftlb.)
G15864295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock

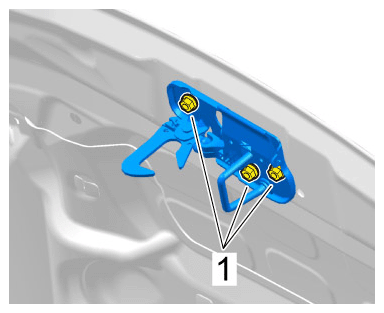

Nuts securing upper part of lock to front lid Item 1 Tightening torque 12 Nm (8.9 ftlb.)
G15864296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing upper part of lock to front lid

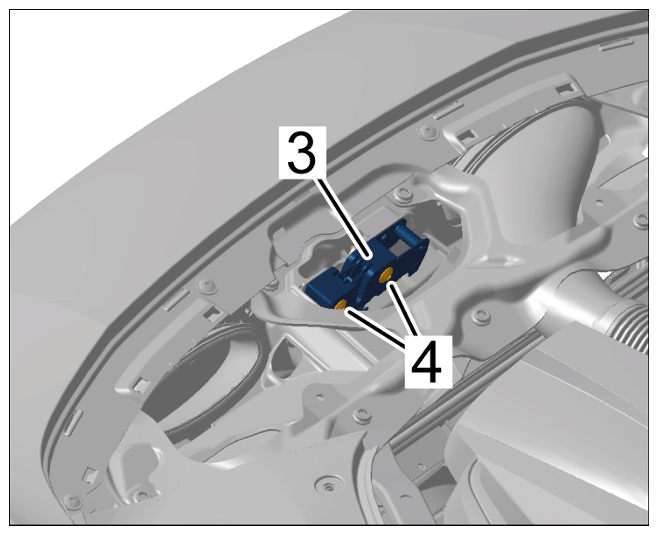

Screws securing front lock lower part to lock carrier Item 4 Tightening torque 13.5 Nm (10 ftlb.)
G15864297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front lock lower part to lock carrier

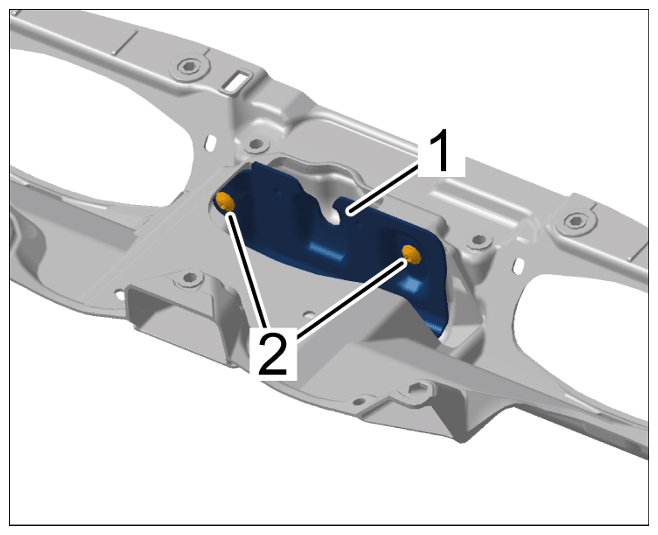

Screw securing lock reinforcement to lock carrier Item 2 Tightening torque 13 Nm (9.6 ftlb.)
G15864298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing panel on lower part of lid lock

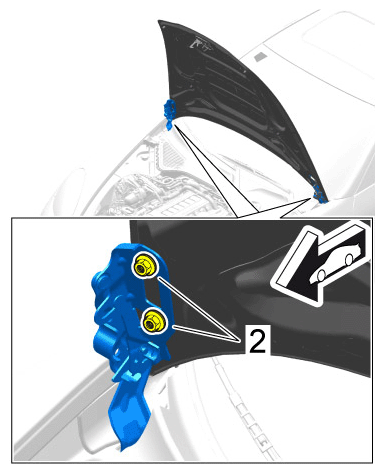

Nuts securing hinge to front cover item 2 Tightening torque 20 Nm (15 ftlb.) (14.8 ftlb.)
G15864299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing hinge to front lid

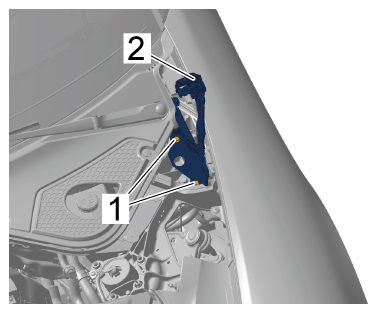

Screws securing hinge bracket to body item 1 Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)
G15864300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing hinge bracket to body
Screw securing upper part of plenum panel at the centre to Astrut Item 1 Tightening torque 8 Nm (6 ftlb.) +/- 15 %
G15864301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut

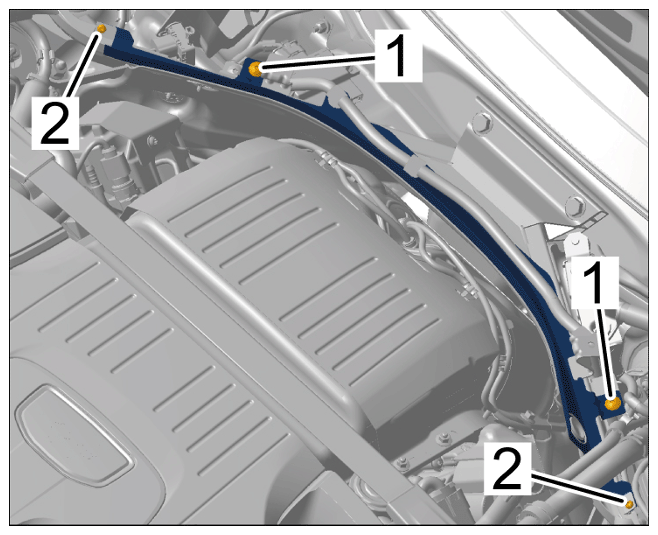

Screw securing upper part of plenum panel at the side to centre plenum panel Item 2 Tightening torque 4 Nm (3 ftlb.) +/- 15 %
G15864302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut

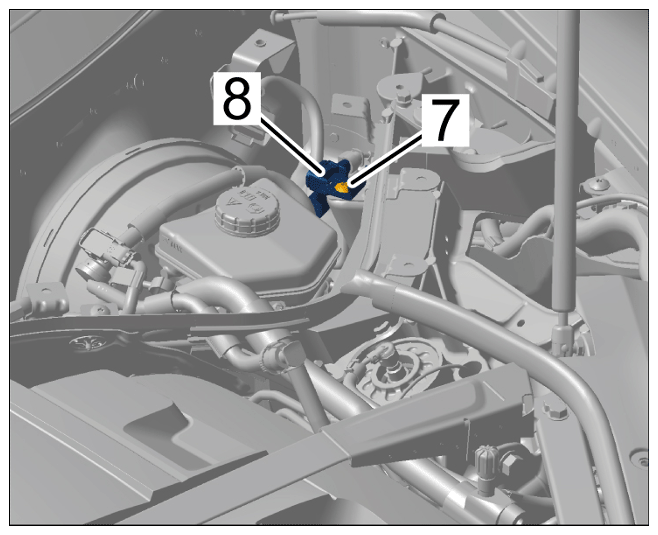

Screw securing upper part of plenum panel at the side to spring strut mount Item 7 Tightening torque 8 Nm (6 ftlb.) +/- 15 %
G15864303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing side plenum panel to spring strut mount

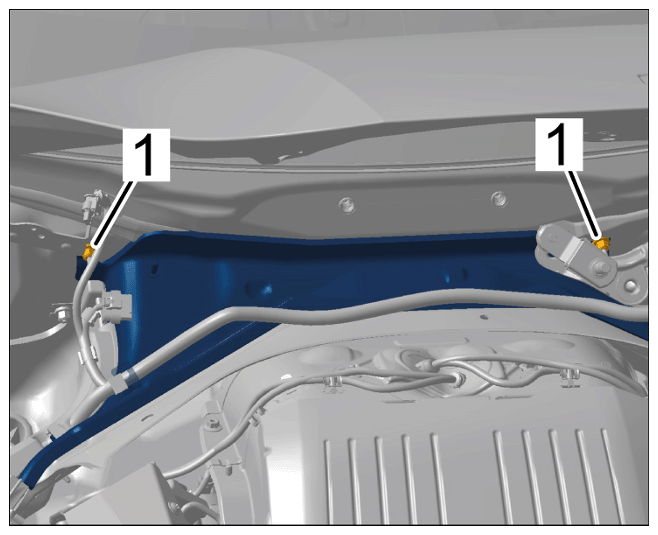

Nut securing cross panel to firewall Item 1 Tightening torque 3.5 Nm (2.5 ftlb.) +/- 10 %
G15864304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut securing cross panel to firewall
Screw securing front wing to bodyshell Item 4 Tightening torque 8 Nm (6 ftlb.)
G15864305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing

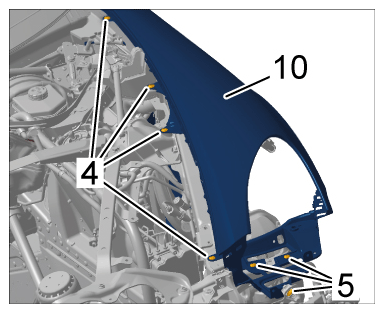

Screw securing front wing to lock carrier Item 5 Tightening torque 8 Nm (6 ftlb.)
G15864306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing
Screw securing front wing to A-pillar Item 9 Tightening torque 8 Nm (6 ftlb.)

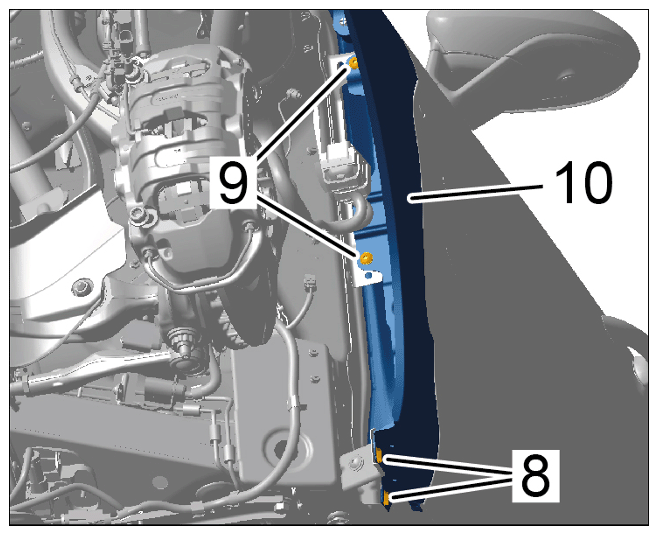

G15864307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing to A-pillar
Nut securing front wing to door sill Item 8 Tightening torque 8 Nm (6 ftlb.)
G15864308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing to door sill

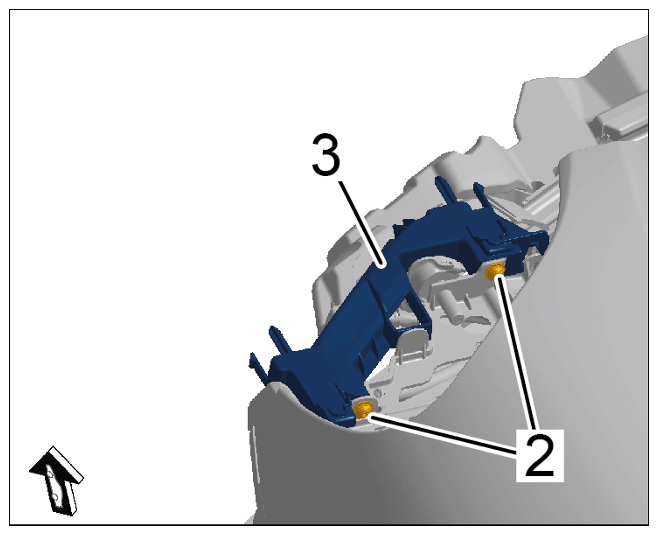

Screws securing headlight mounting to wing Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15864309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing headlight mounting to wing

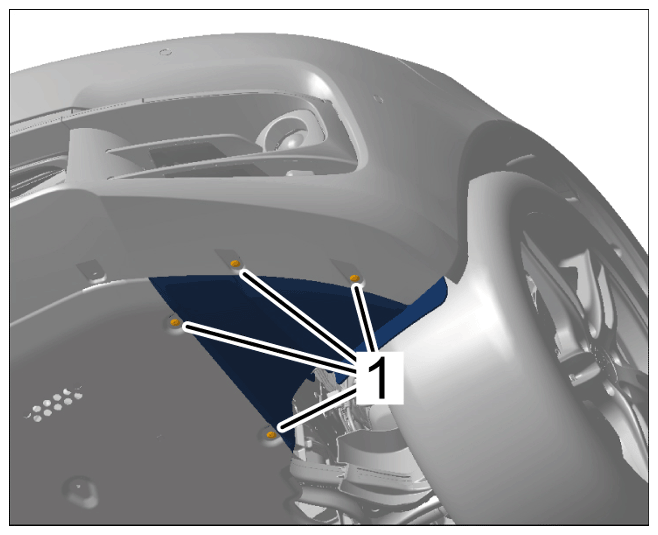

Screws on front part of front wheel housing liner, bottom Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on front part of front wheel housing liner at the bottom

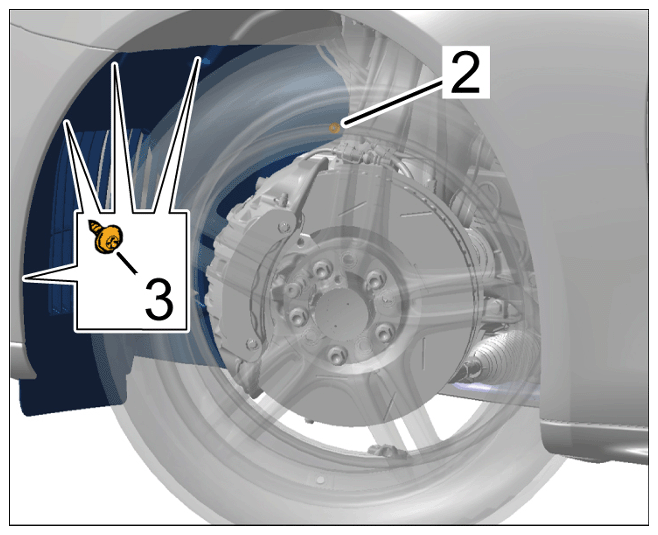

Nut and screws on front part of front wheel housing liner Items 2 and 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front part of front wheel housing liner

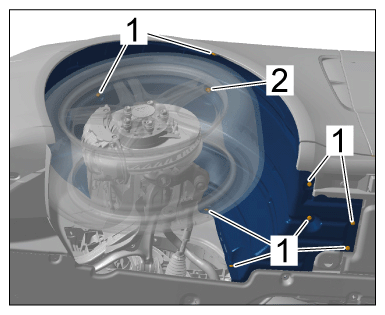

Screws and nut Items 1 and 2 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part of front wheel housing liner

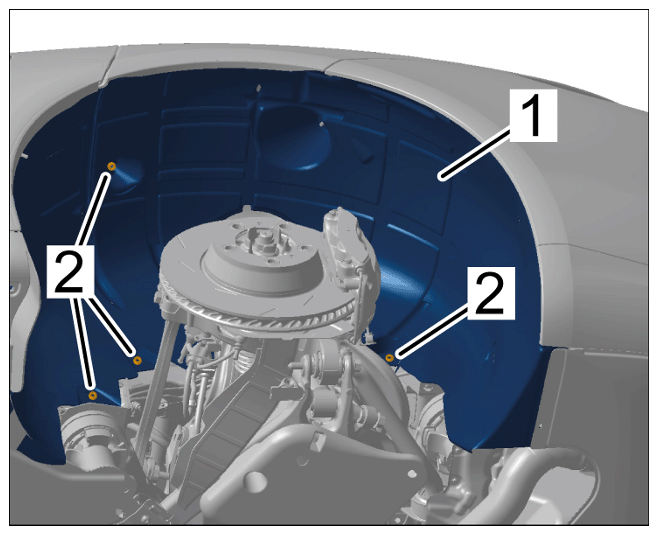

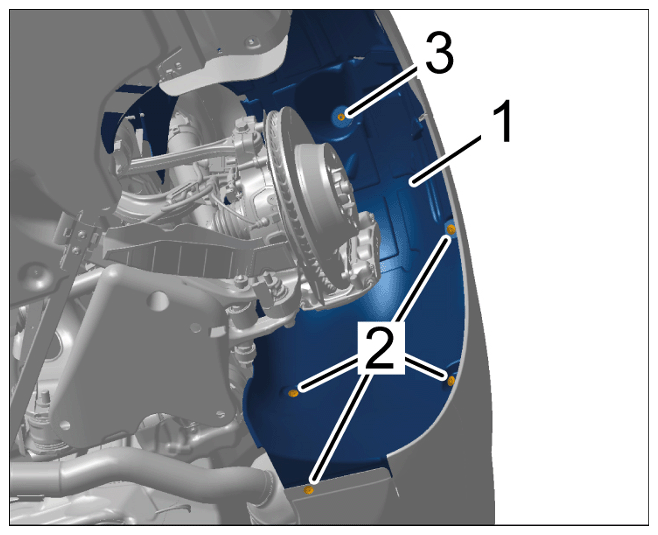

Nuts and screw on rear wheel housing liner Items 2 and 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner
G15864314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner

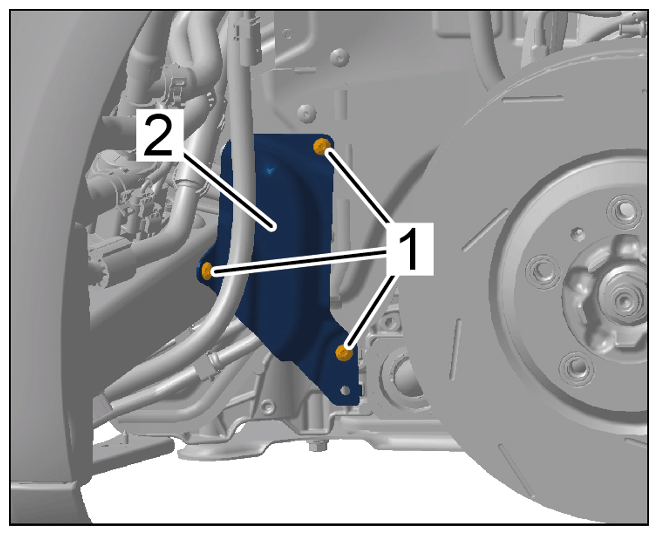

Screws for sheetmetal panel in wheel housing Item 2 Tightening torque 8 Nm (6 ftlb.)
G15864315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for sheetmetal panel in wheel housing

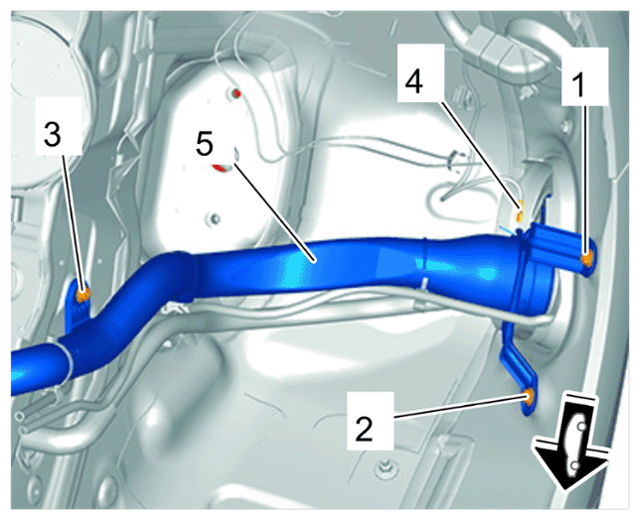

Fuel filler tube screws item. 1; Item. 2; Item. 3 Tightening torque 8 Nm (6 ftlb.)
G15864316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel filler tube holder

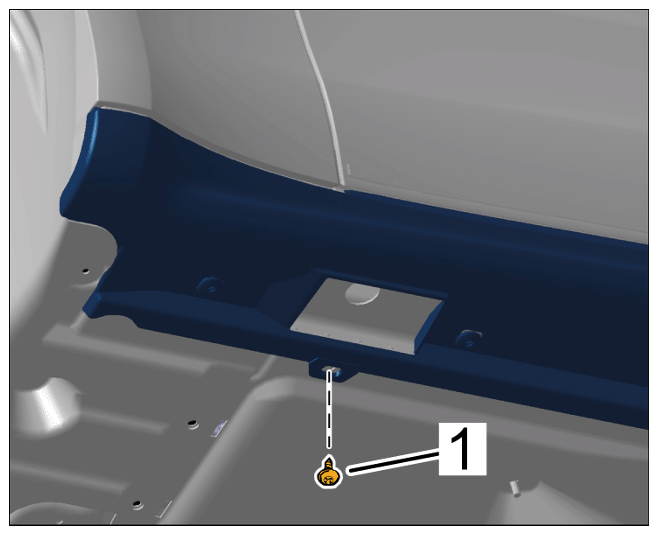

Screw securing side skirts to longitudinal member Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door entry guard

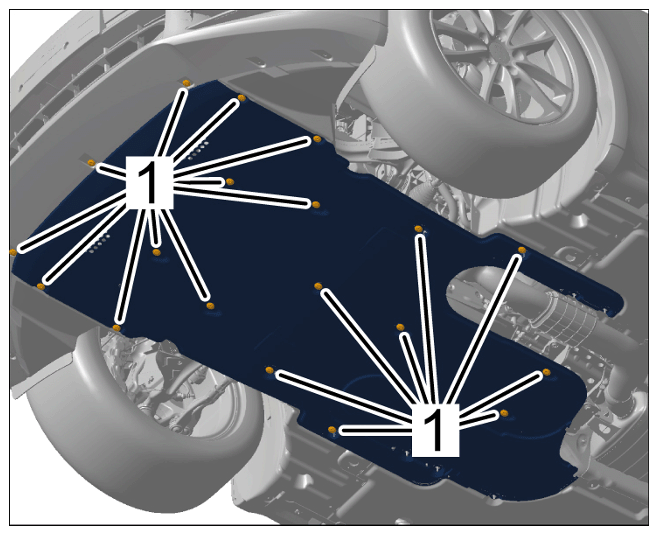

Screws for cover on front underbody Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover on front underbody

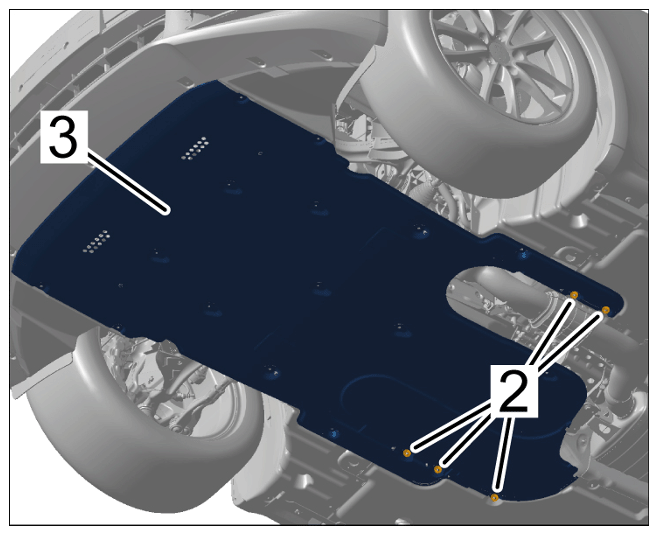

Nuts for cover on front underbody Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for cover on front underbody
Screws for tunnel cover on centre underbody Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for tunnel cover on centre underbody cover

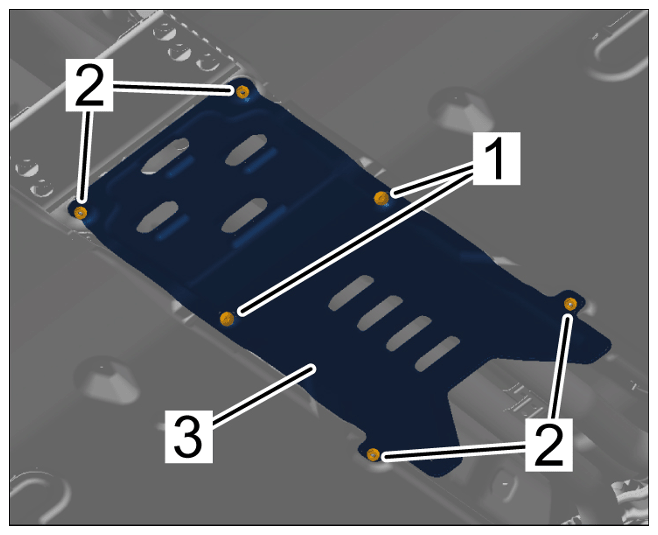

Nuts for tunnel cover on centre underbody cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for tunnel cover on centre underbody cover
Nuts for centre underbody cover (at the sides) Item 4 Tightening torque 2.5 Nm (1.75 ftlb.)

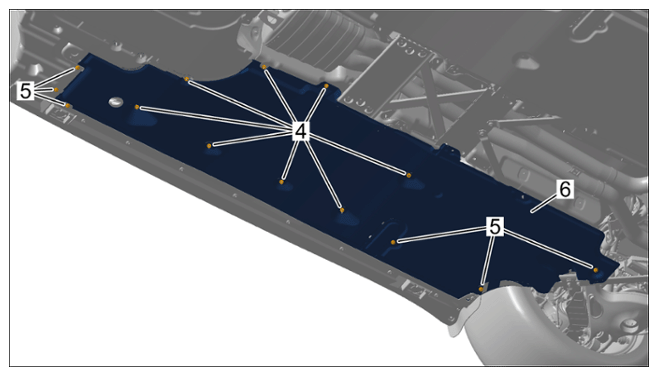

G15864322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for centre underbody cover (at the sides)
Screws for centre underbody cover (at the sides) Item 5 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for centre underbody cover (at the sides)

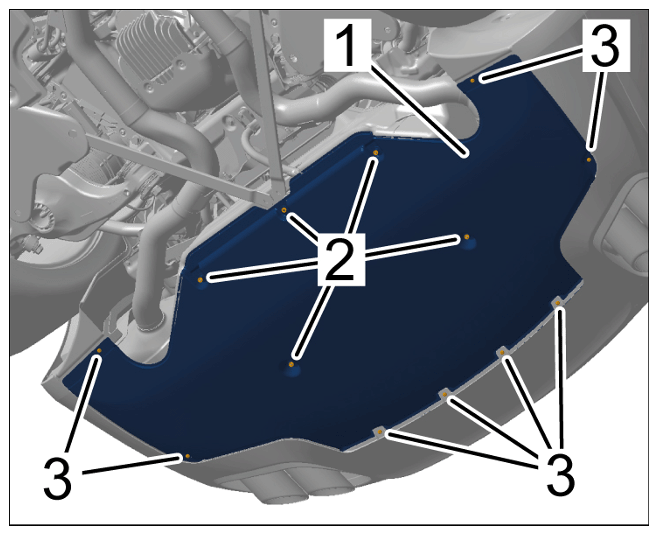

Nuts for rear underbody cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for rear underbody cover
Screws for rear underbody cover Item 3 Tightening torque 2.5 Nm (1.75 ftlb.)
G15864325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear underbody cover

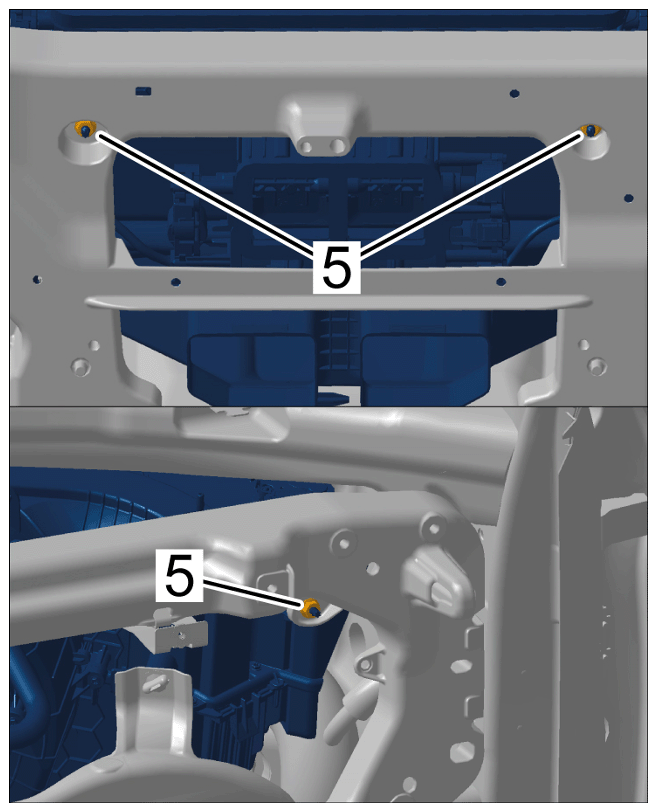

Nuts securing heating/fresh-air unit to dashboard bracket Item 5 Tightening torque 8 Nm (6 ftlb.)
G15864326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing heating/fresh-air unit to dashboard bracket

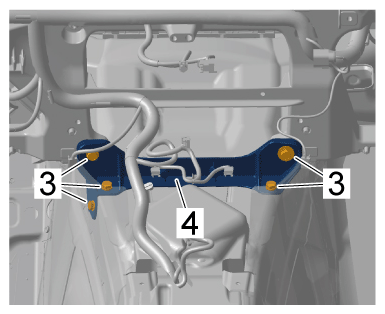

Screw securing centre support to dashboard bracket Item 3 Tightening torque 20 Nm (15 ftlb.)
G15864327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing centre support to dashboard bracket
Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket) Item 6 Tightening torque 20 Nm (15 ftlb.)

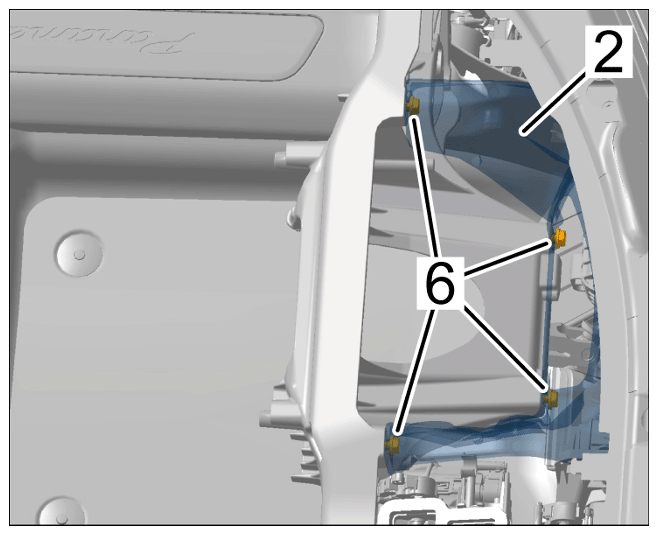

G15864328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)

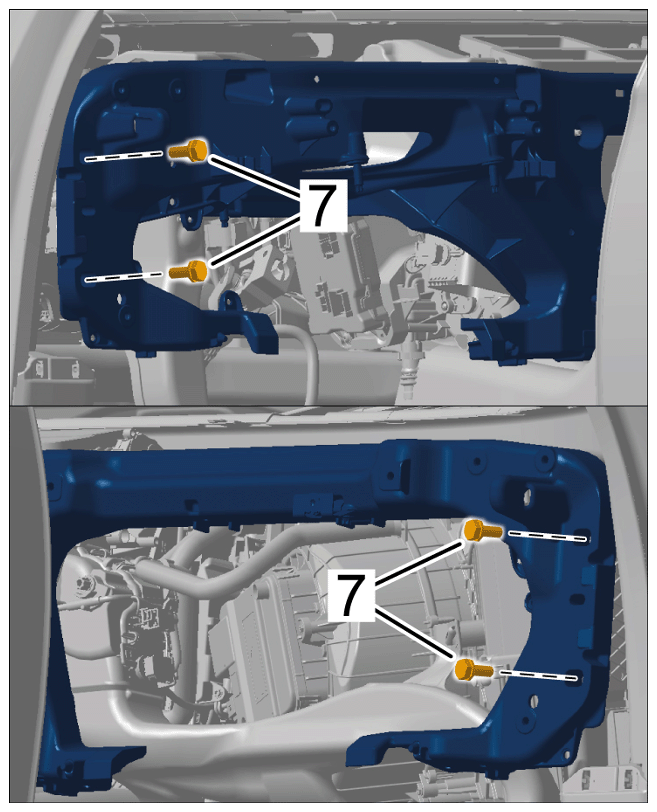

Screw on dashboard bracket (main bracket) Item 7 Tightening torque 13 Nm (9.5 ftlb.)
G15864329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on dashboard bracket (main bracket)

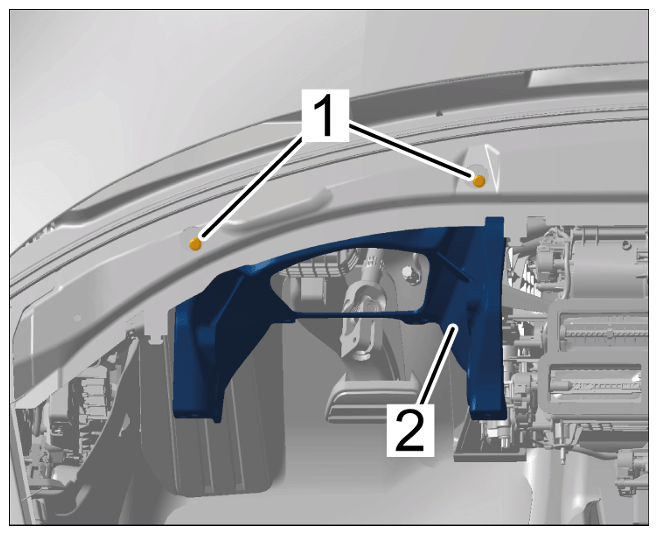

Screw on dashboard bracket (front bracket) Item 1 Tightening torque 16 Nm (12 ftlb.)
G15864330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on dashboard bracket (front bracket)

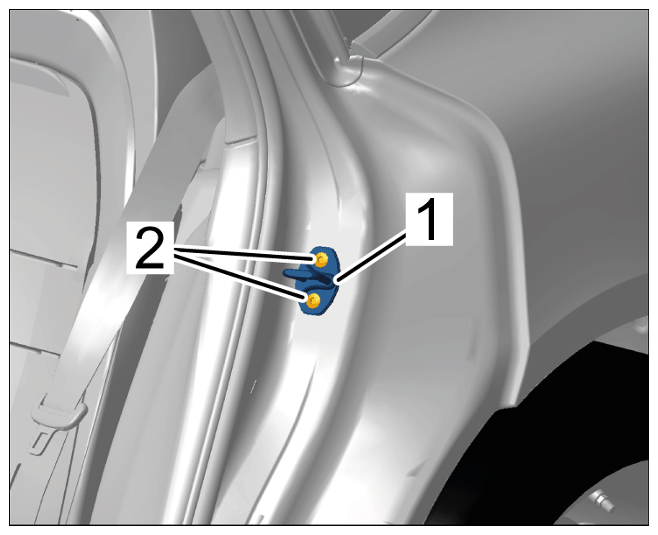

Screw on rear door lock peg Item 2 Tightening torque 25 Nm (19 ftlb.)
G15864331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear door lock peg

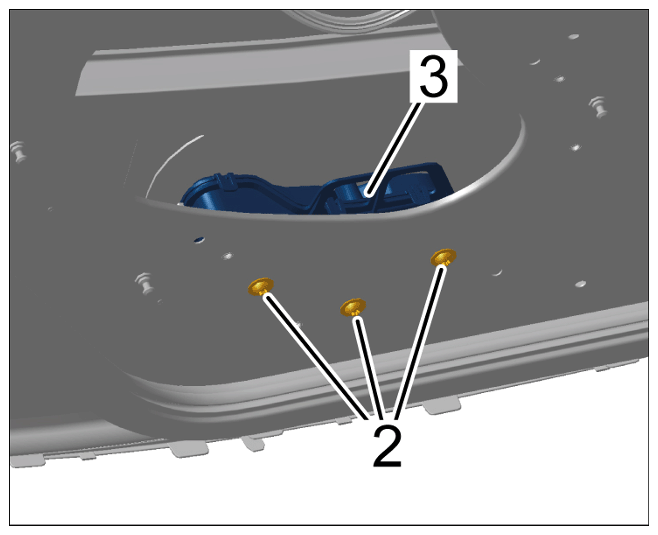

Screw securing closing aid motor to rear door Item 2 Tightening torque 7.4 Nm (5.5 ftlb.)
G15864332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing closing aid motor to rear door

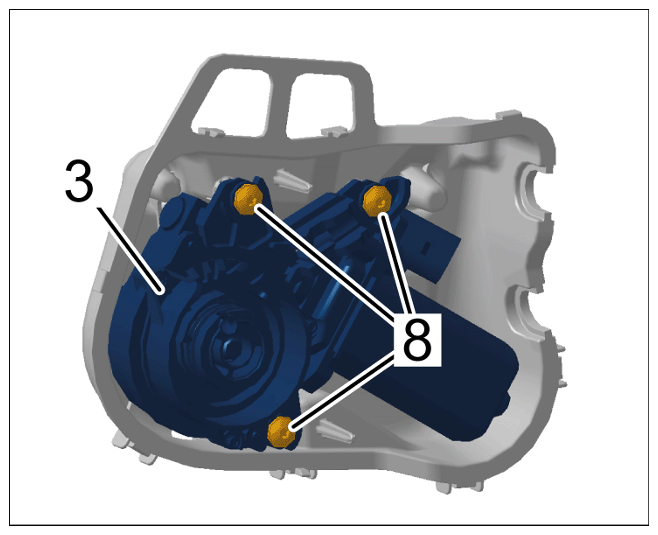

Screw for closing aid motor in housing Item 8 Tightening torque 7.4 Nm (5.5 ftlb.)
G15864333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing motor for closing aid

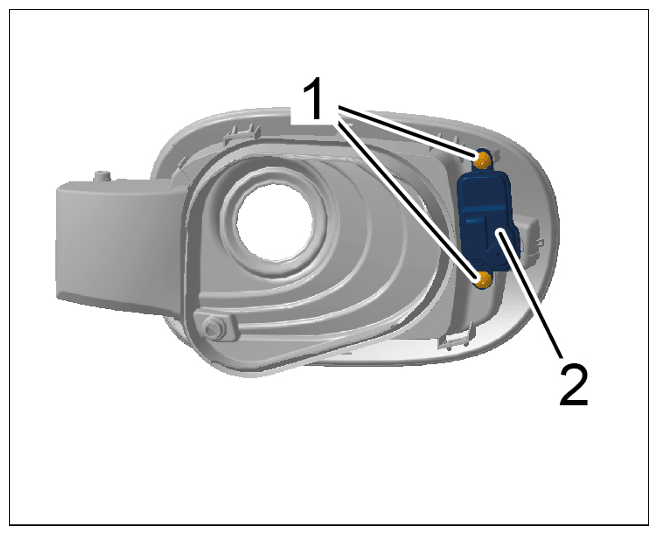

Screw securing filler flap switching element to filler flap Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15864334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing filler flap switching element to filler flap

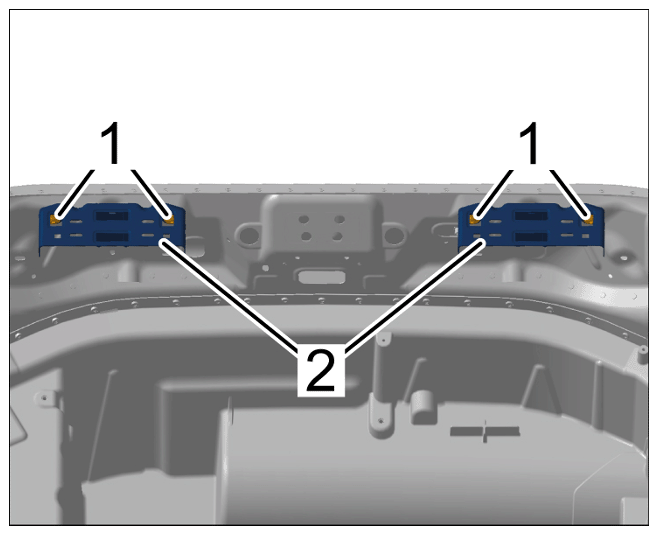

Screws securing holder to lock carrier Item 1 Tightening torque 8 Nm (6 ftlb.)
G15864335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing holder to lock carrier
scientia non olet · About LEMON Manuals
