Door Handle

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

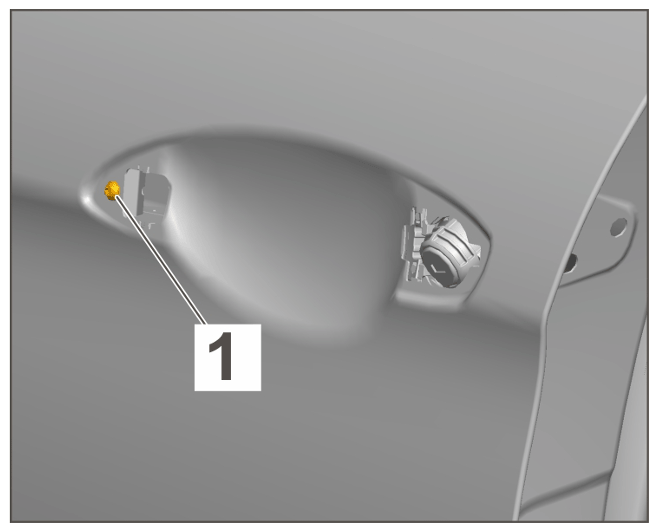

Fastening screw door handle	Pos. 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

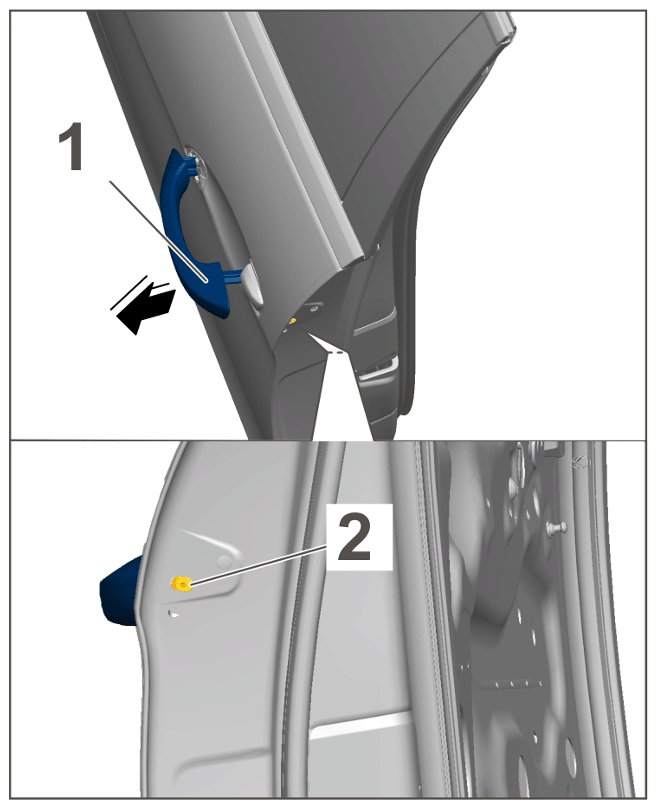

Adjusting bolt for door handle in service position	Pos. 1	Tightening torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position

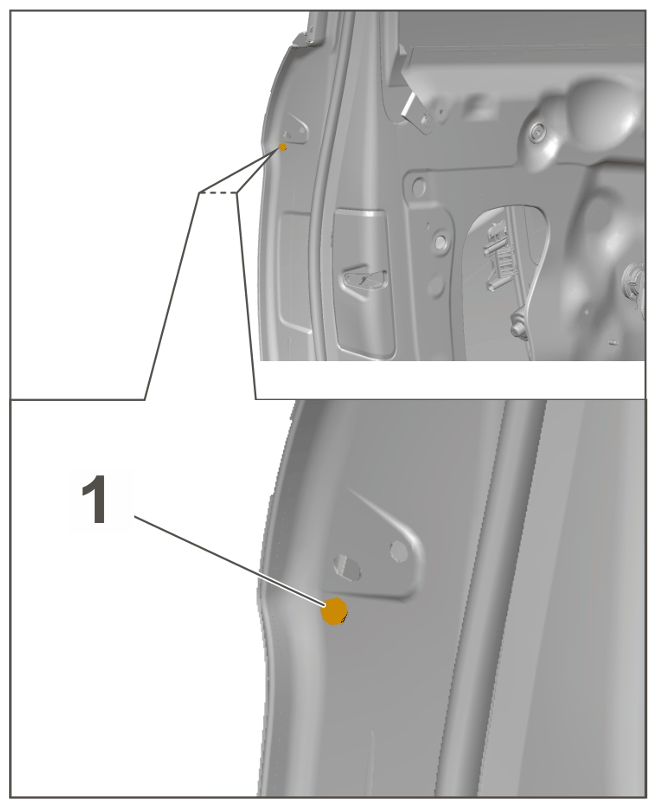

Tighten fastening screw for door handle in service position	Pos. 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

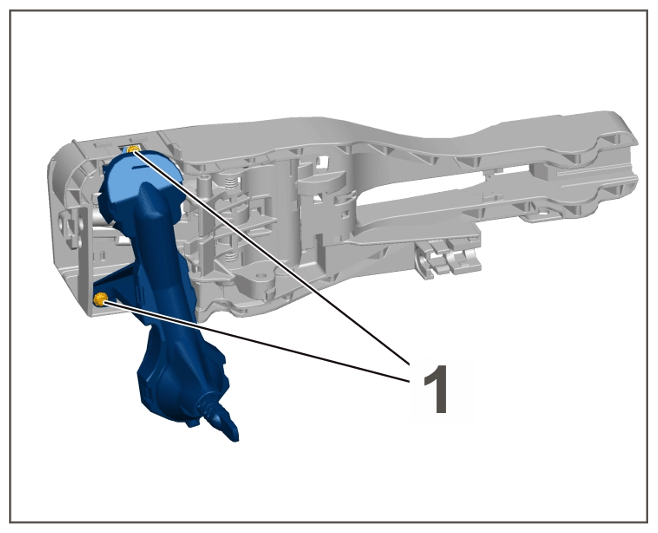

Deflection unit on door handle	Pos. 1	Tightening torque	1.3 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

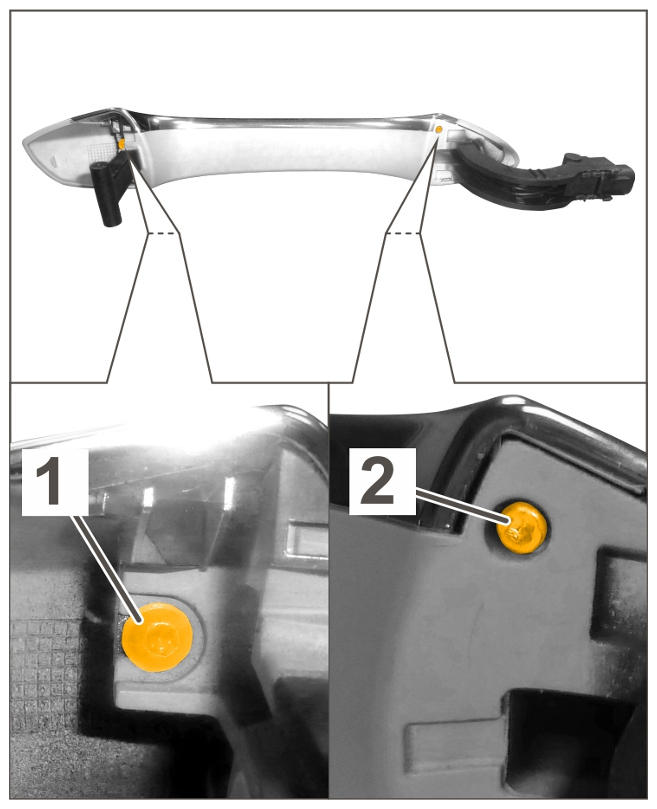

Screw trim panel	Pos. 1	Tightening torque	0.7 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw trim panel	Pos. 2	Tightening torque	0.22 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

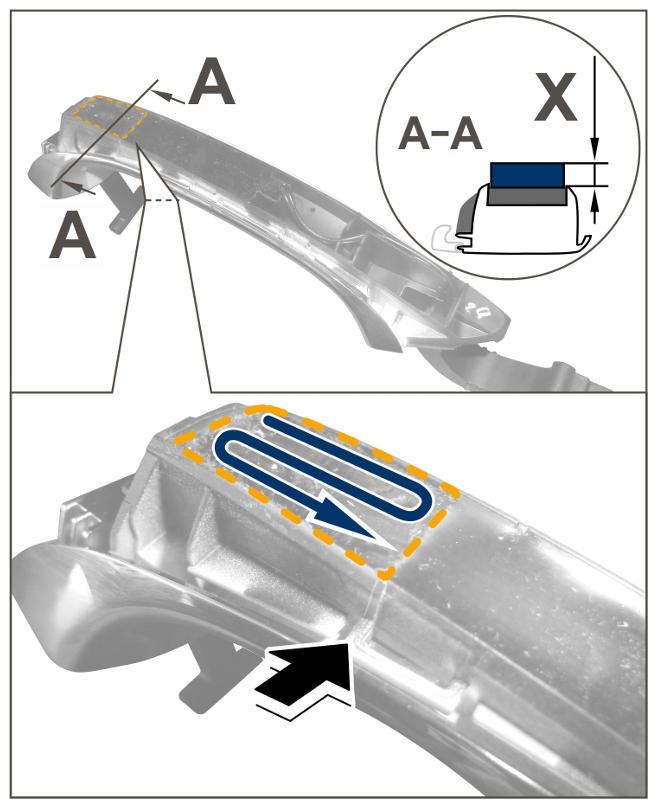

Door handle seal Kessy	Pos. X	Application depth	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle adhesive
