Removing Motor For Seat Adjustment

WARNING: This page is about a different variant/trim than selected.

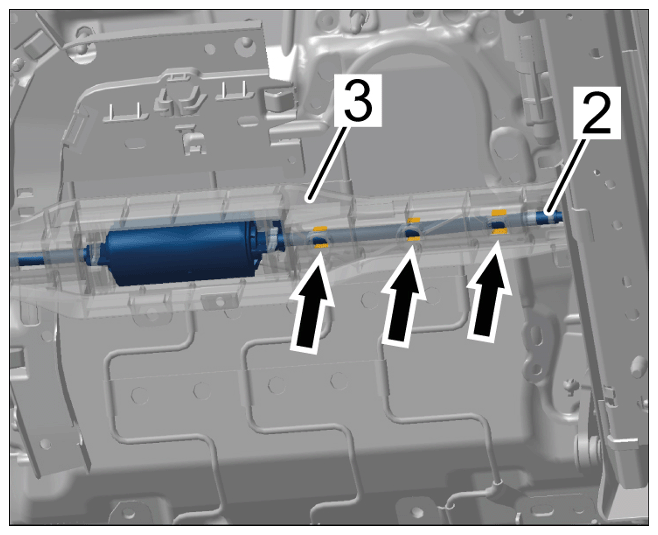

  1. Unclip sleeve -2-  for the long drive shaft for seat adjustment at the holder -3-  (-arrows-  ).
    G15874594Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping sleeve

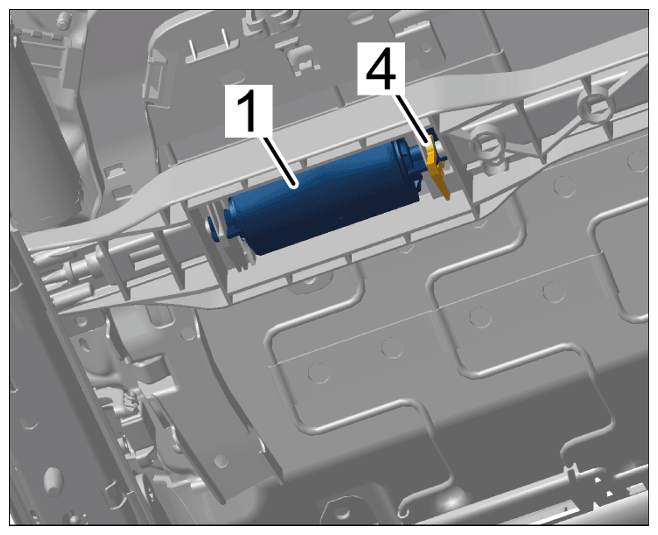

  2. Unclip seat-adjustment motor -1-  from holder -4-  .
    G15874595Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping seat-adjustment motor

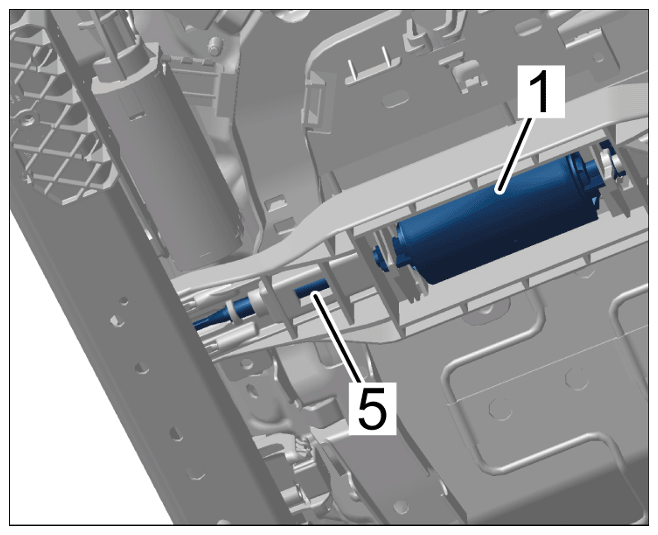

  3. Pull seat-adjustment motor -1-  off the short drive shaft -5-  .
    G15874596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off seat-adjustment motor

  4. Release and disconnect electric plug connection and remove seat-adjustment motor -1-  with long drive shaft.
    G15874597Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing motor for seat adjustment

  5. Pull long drive shaft out of the seat-adjustment motor and check for damage.
  6. Pull short drive shaft out of the transmission mount at the seat and check for damage.
