Removing Motor For Air Cushion
WARNING: This page is about a different variant/trim than selected.
- Loosen motor for air cushion.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

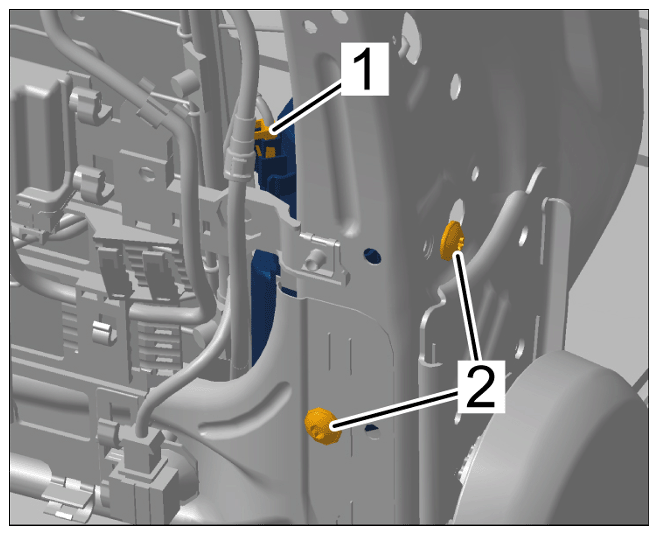

Unscrewing screws
- 1.1 Disconnect electric plug connection -1-
.
- 1.2 Unscrew and remove screws -2-
.
- Remove motor for air cushion -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

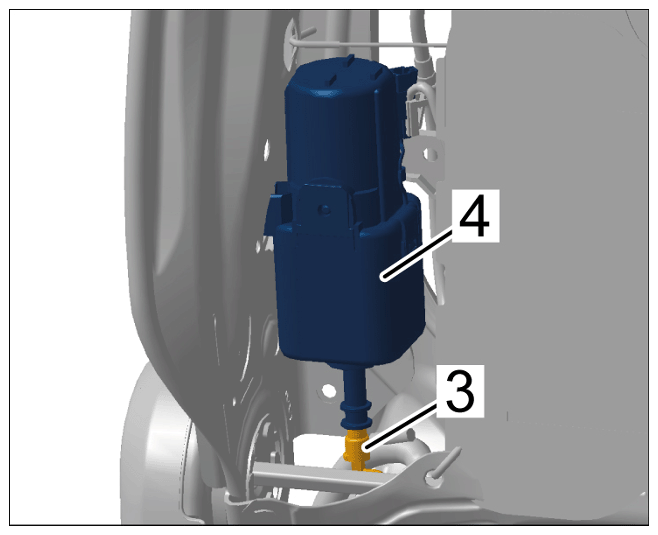

Disconnecting pneumatic line
- 2.1 Release and disconnect pneumatic line -3-
.
- 2.2 Remove motor for air cushion -4-
.
