Removing Backrest Cover

WARNING: This page is about a different variant/trim than selected.

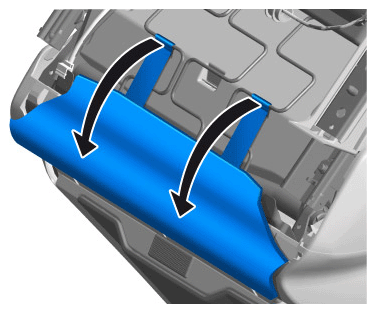

  1. Detach covering on backrest cover at the underside of the front seat -arrows-  .
    G15874486Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening restraining straps

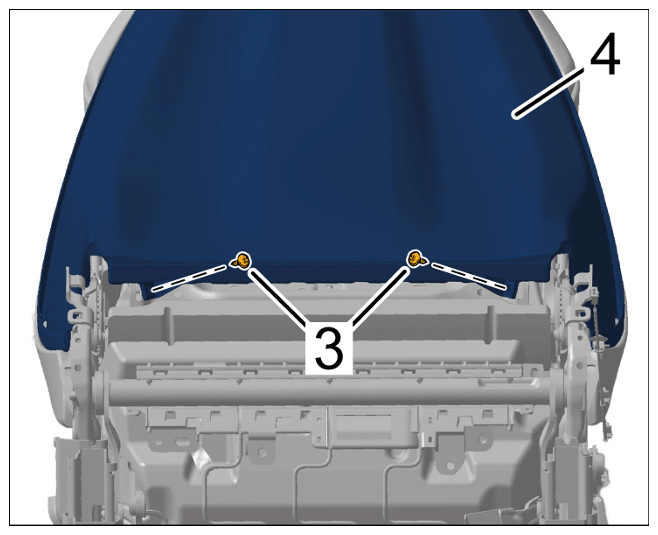

  2. Unscrew screws -3-  at the bottom of the backrest cover -4-  .
    G15874487Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

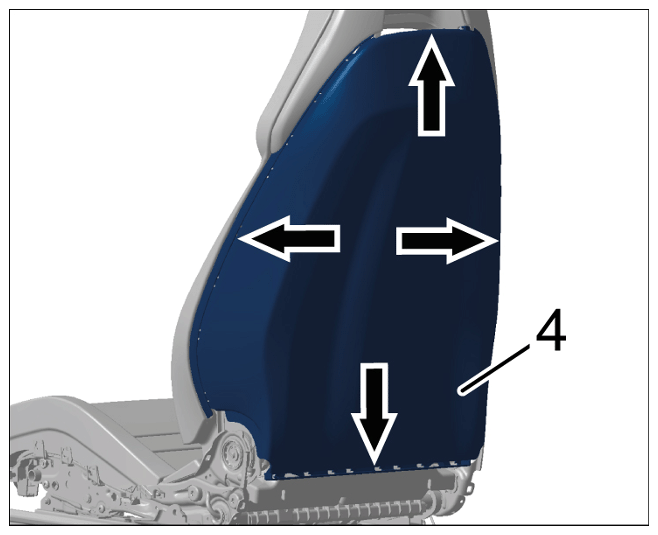

  3. Detach seat backrest cover all the way around using a suitable tool -arrows-  and remove backrest cover -4-  .
    G15874488Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing backrest cover
