Removing Rear Backrest Air Cushion

WARNING: This page is about a different variant/trim than selected.

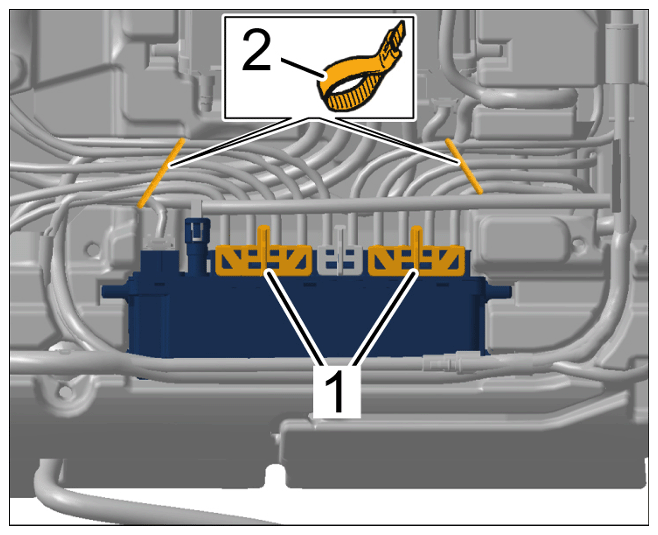

Disconnect pneumatic connections -1- at the control valve.
Cut tie-wrap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pneumatic connections

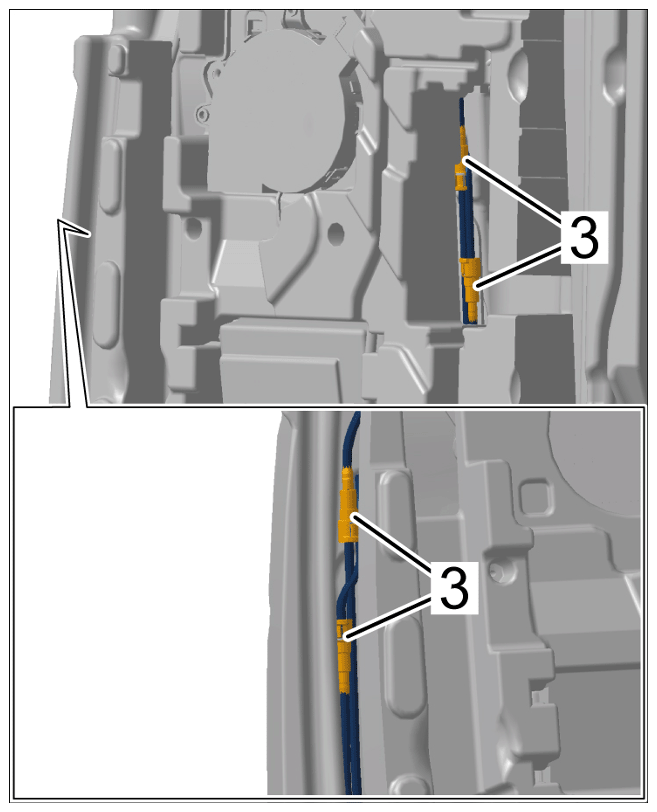

Disconnect pneumatic lines -3- at the connection points.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pneumatic lines

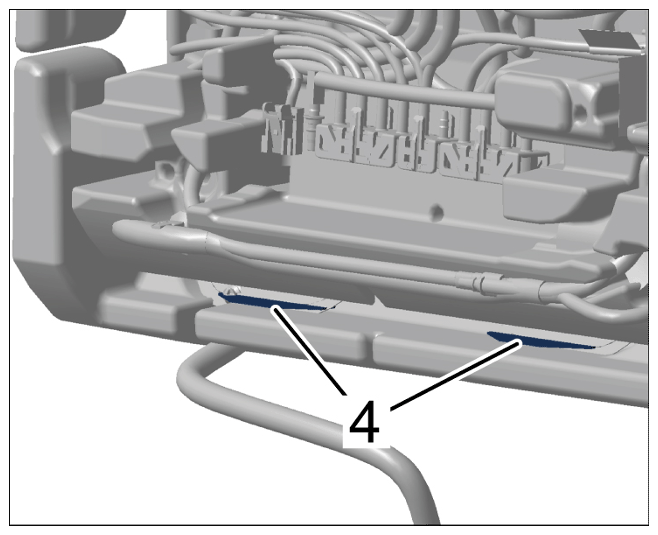

Disengage clips -4- on the cushion and guide them through.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding clips through
Feed pneumatic lines through the backrest cushion.
Remove air cushion for rear backrest.
