Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...
Screws for front outer seat trim panel Item 2 Tightening torque 2.2 Nm (1.6 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

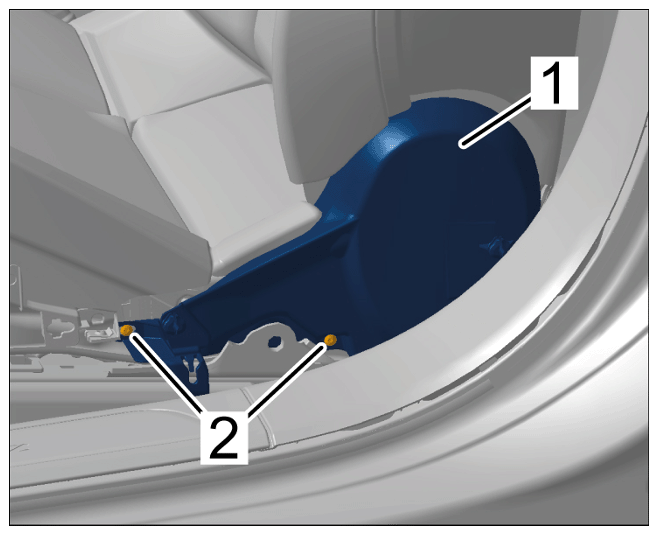

G15874452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front outer seat trim panel
Screws for front inner seat trim panel Item 3 Tightening torque 2.2 Nm (1.6 ftlb.) +/- 0.2 (0.1 ftlb.) mm

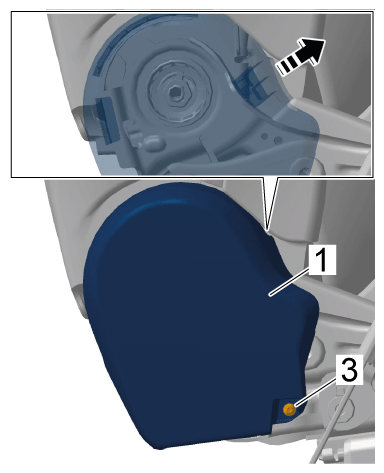

G15874453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for front inner seat trim panel
