Removing Front Seat

WARNING: This page is about a different variant/trim than selected.
  1. Move backrest all the way forward. Move front seat all the way up and all the way forward.
  2. Only for front seat on driver's side:

    Move steering wheel to the very front, uppermost position.

  3. Release rear covers -2-  and pull them off the seat rail -arrows-  .

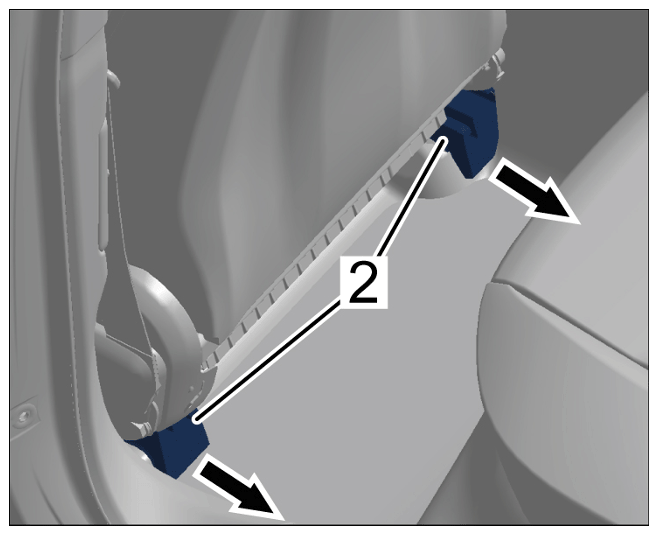

    G15874425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear covers

  4. Unscrew screws -3-  on rear seat rail.

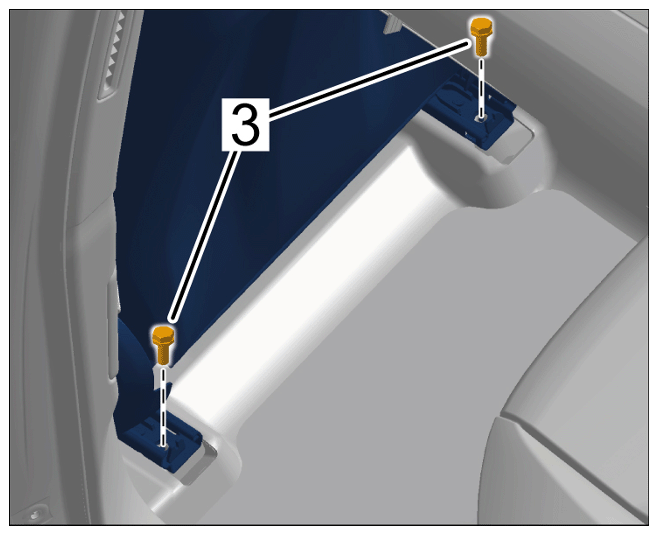

    G15874426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing rear screws

  5. Move the front seat back fully and lower the rear seat surface.
  6. Remove ignition key and disconnect ground strap for the battery.

    > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

  7. Release front covers -4-  and pull them off the seat rail -arrows-  .

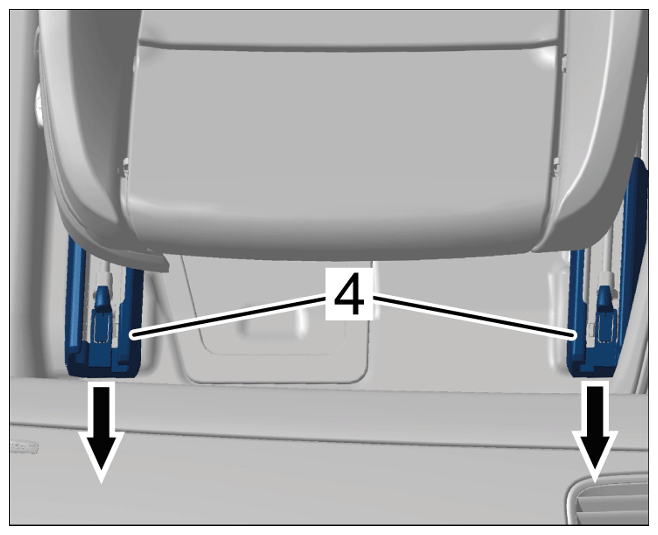

    G15874427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front covers

  8. Unscrew screws -5-  on front seat rail.

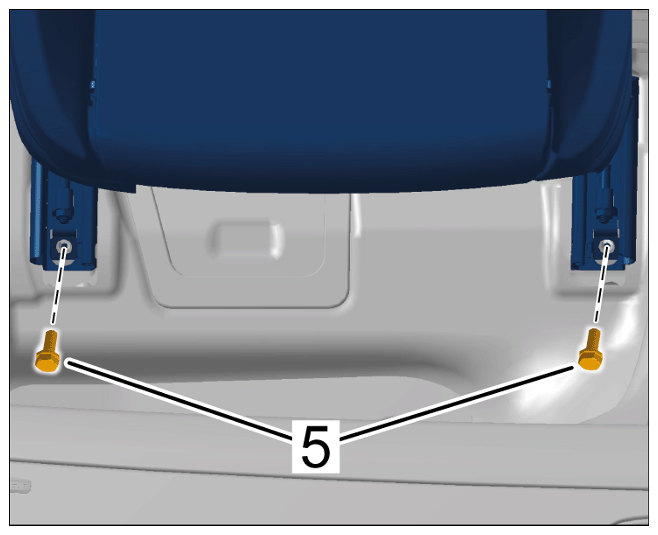

    G15874428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws at the front

  9. Tilt the front seat -1-  to the rear, open up cut-out in the carpet -6-  and release and disconnect electric plug connections from the front seat -1-  .

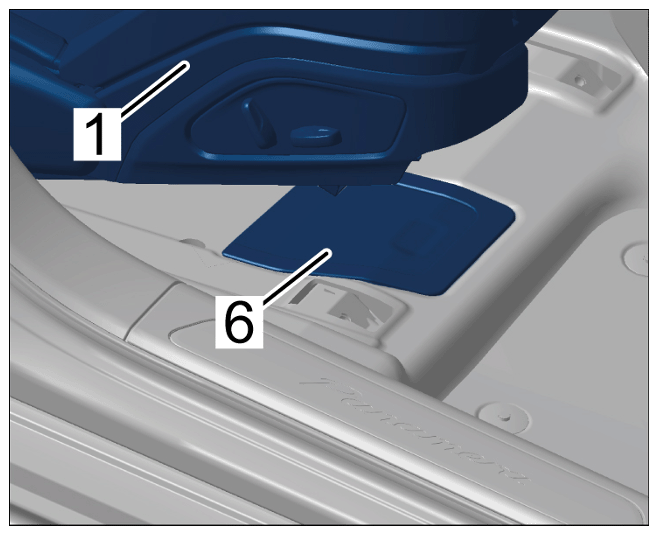

    G15874429Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connections

    Information

    The help of another person is required.

    Information

    Cover the door sill to prevent damage.

  10. Carefully remove the front seat.
