Removing Pressure Pipe

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove pressure pipe -1-  .
    1. 1.1 Loosen screw-type clamp -2-  on the pressure pipe -1-  at the pressure hose -3-  .
    2. 1.2 Loosen screw-type clamp -4-  for the connecting hose -5-  at the pressure pipe.
    3. 1.3 Unscrew screws -6-  .
    4. 1.4 Pull off hoses -3-  and -5-  .
    5. 1.5 Remove pressure pipe -1-  .

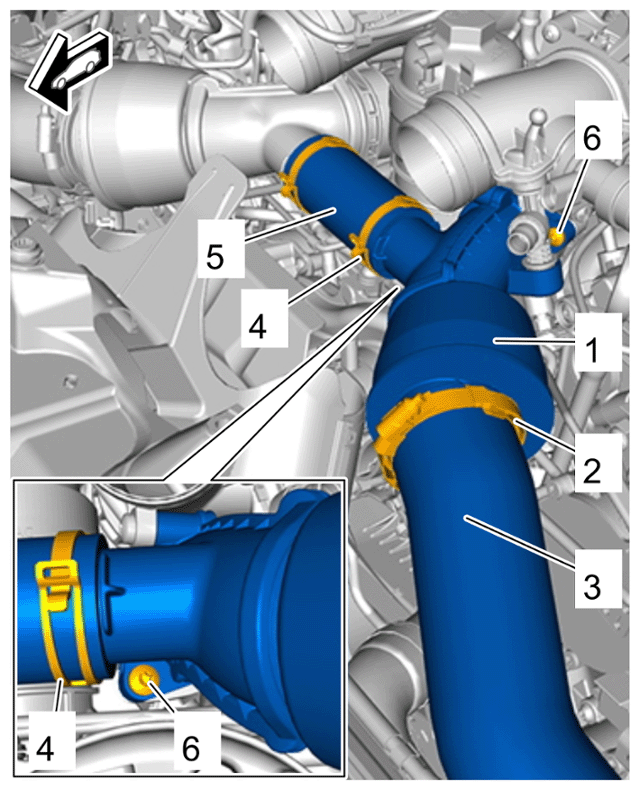

G15880785Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right pressure pipe - V8 biturbo
