Installing Oil Cooler
WARNING: This page is about a different variant/trim than selected.
Information
Risk of contaminating the lubricating system
- Cover open parts of the cylinder head.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1 Fit new seal.

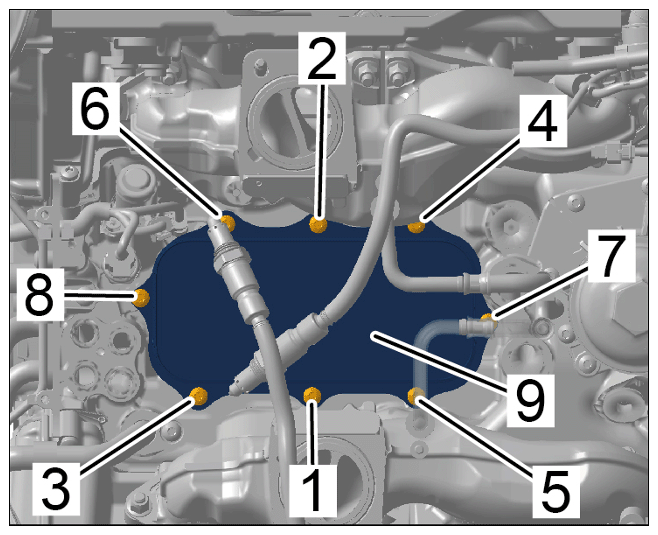

- 1.2 Screw in screws in the sequence -1 to 8- and tighten in steps in the indicated sequence > Initial tightening 5 Nm (3.5 ftlb.) > Final tightening + 9 Nm (6.5 ftlb.)
Tightening sequence
