Removing Oil-Pressure Sender

WARNING: This page is about a different variant/trim than selected.

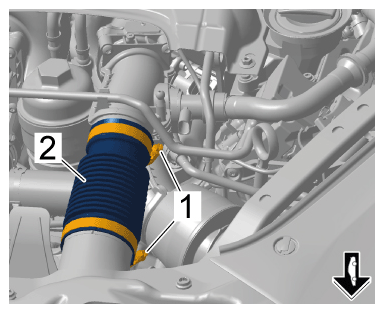

  1. Loosen clamps -1-  and remove suction hose -2-  .
    G15824661Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction hose

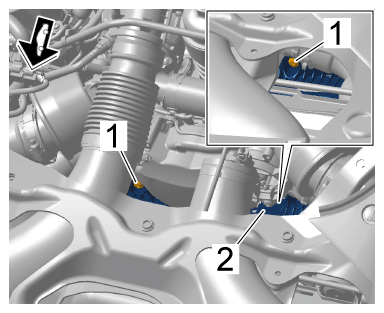

  2. Unscrew screws -1-  and press cable duct -2-  aside.
    G15824662Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

    Information

    Re-install oil-pressure sender as quickly as possible to avoid losing too much oil.

  3. Remove oil-pressure sender.

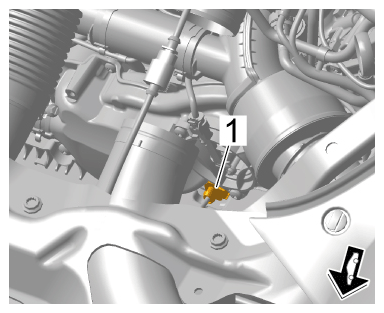

    1. 3.1 Release and unplug electric plug connection -1-  .
      G15824663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection for oil-pressure sender

    2. 3.2 Collect emerging engine oil.

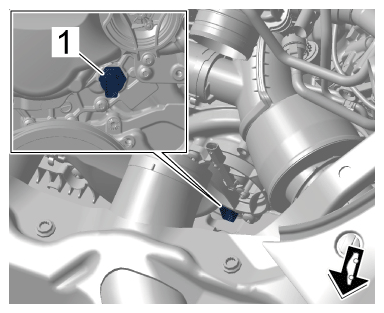

    3. 3.3 Unscrew oil-pressure sender using > T40363 - socket wrench a/f 24  .
    G15824664Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil-pressure sender
