Removing The Generator

WARNING: This page is about a different variant/trim than selected.

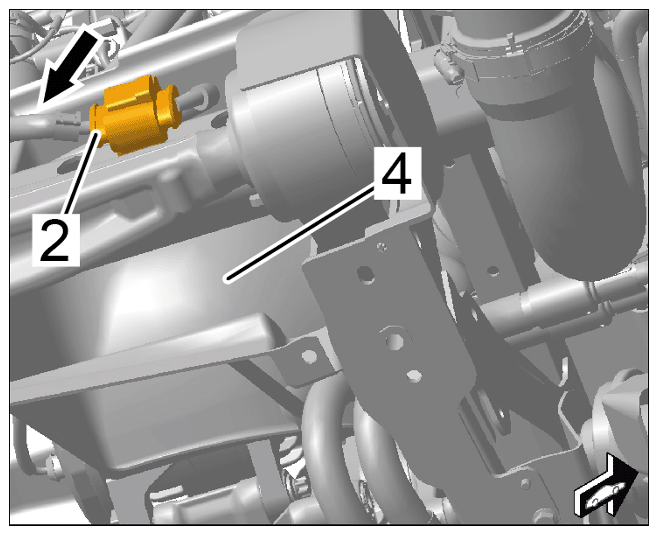

Release and disconnect electric plug connection -2- on the front-axle carrier and guide it through the cover on the generator -4- (- arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection on front-axle carrier

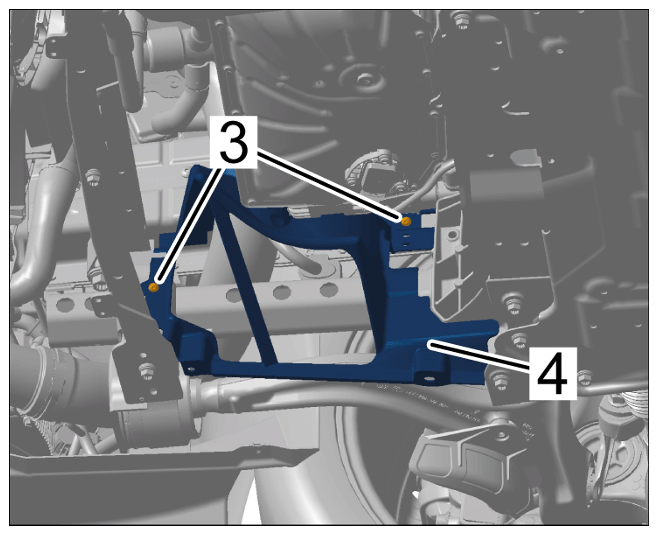

Remove clips -3- and remove cover on generator -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover on generator

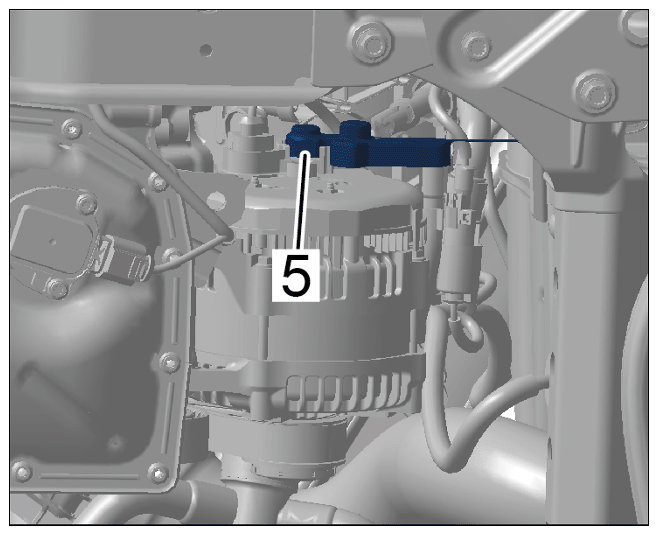

Pull off protection cap -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off protection cap

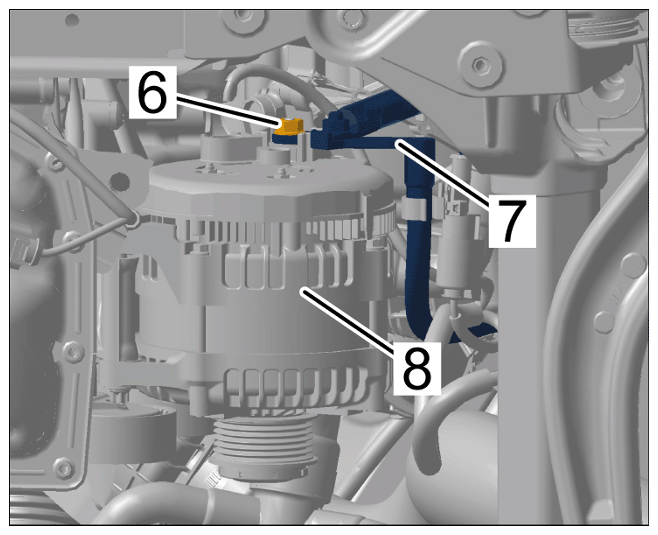

Screw off nut -6- for B+ line -7- on the generator -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening B+ line

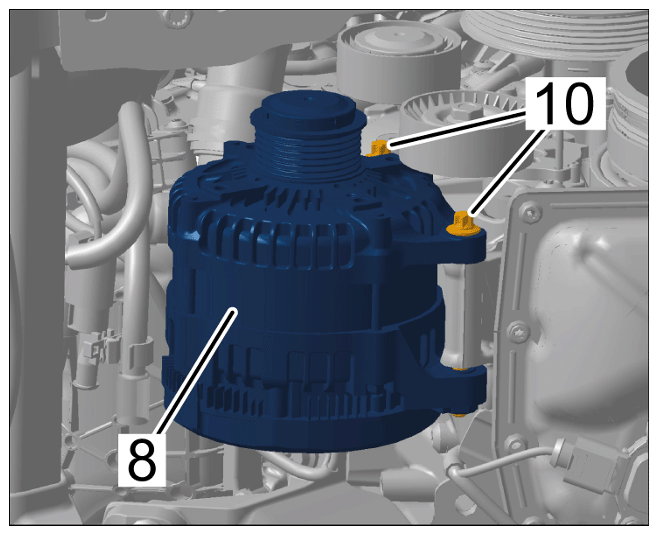

Unscrew screws -10- and loosen the generator -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing the generator

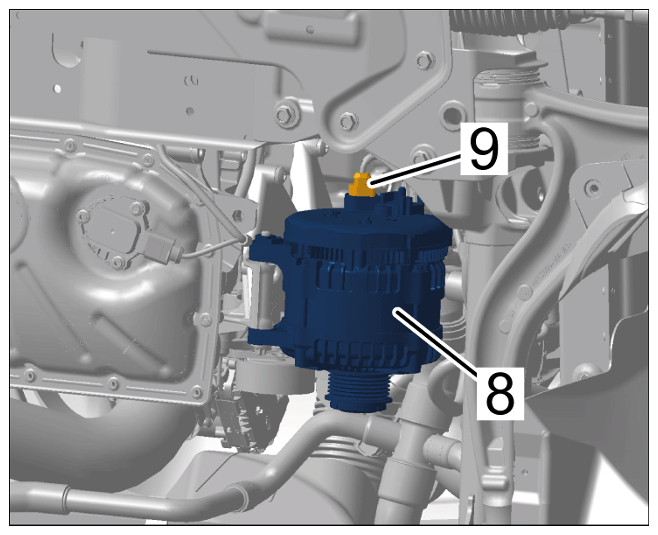

Release and disconnect electric plug connection -9- on the generator -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection
Remove B+ line and remove generator.
