Installing Generator

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tightening torque for screw securing generator to crankcase: > Tightening torque 23 Nm (17 ftlb.)

   Tightening torque for nut securing B+ line to generator: > Tightening torque 20 Nm (15 ftlb.)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

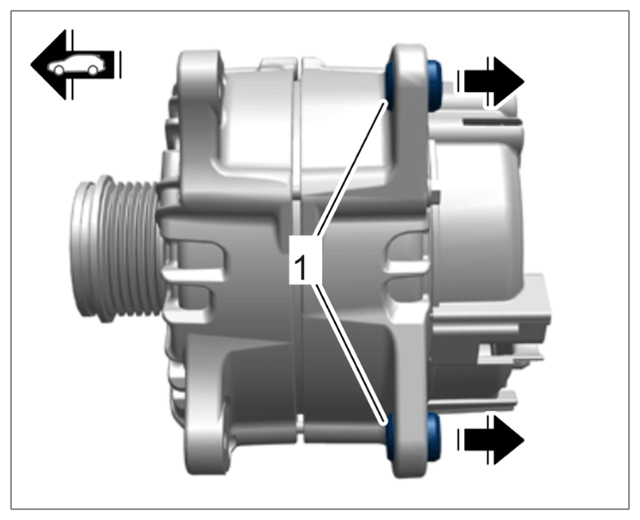

Generator bushes

• Before installing the new generator, push the threaded bushes -1- out by approx. 4 mm.
