Removing Rear Skirt

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

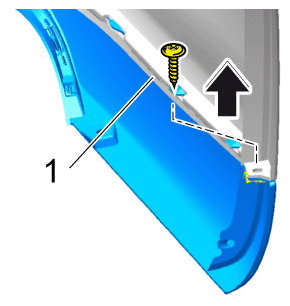

1. Unscrew and remove screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw

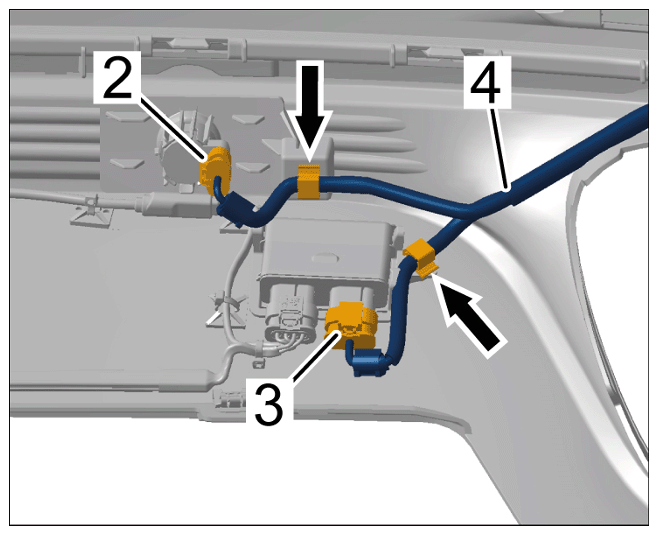

2. Release and disconnect electric plug connection for ParkAssist sensor -2-  on the rear skirt.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection for ParkAssist sensor

3. Only for vehicles with KEYLESS ENTRY (I-no. 4F2 or 4F6):

   Release and disconnect electric plug connection -3-  on VIP control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection on VIP control unit

4. Open line bracket -arrows-  and move wire harness -4-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Moving wire harness aside

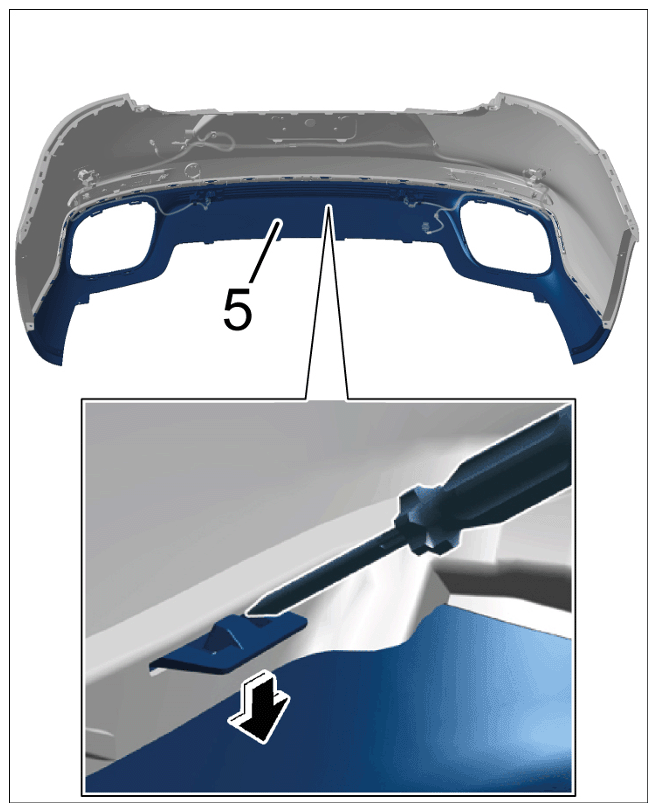

5. Release locking lugs all the way around -arrow-  and remove rear skirt -5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear skirt
