Removing Retaining Strip On Wing
WARNING: This page is about a different variant/trim than selected.

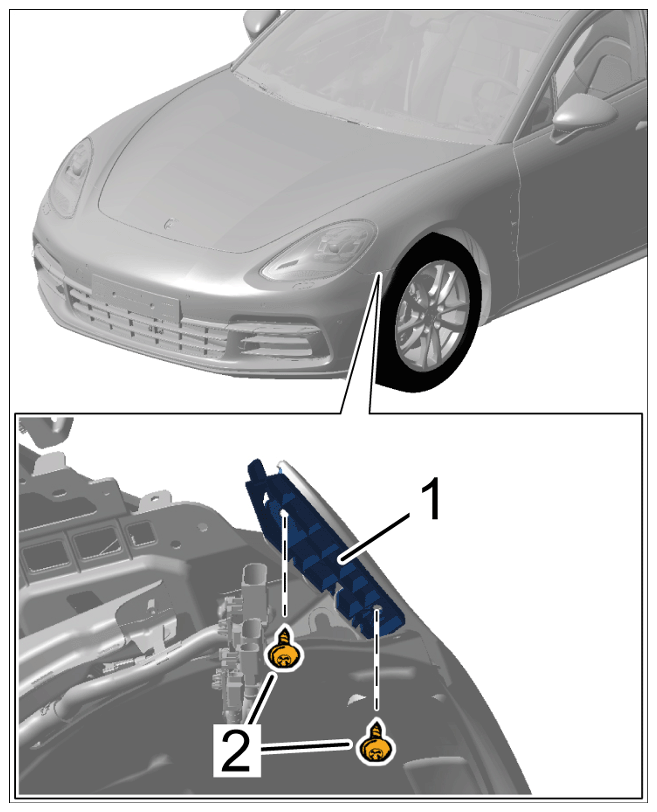

- Unscrew screws -2-
on retaining strip on the wing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

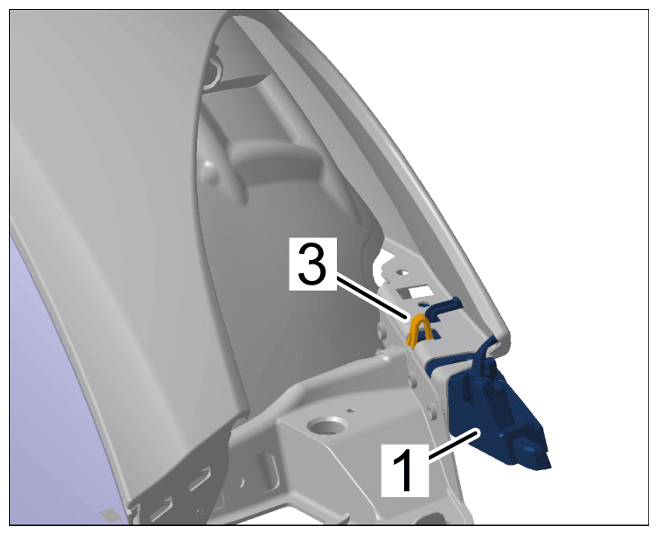

- Release holder -3-
and remove retaining strip on the wing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing retaining strip on wing
