Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

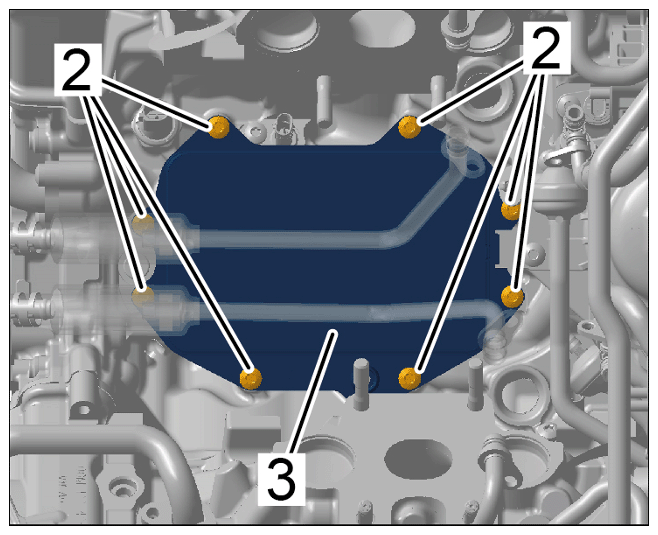

| Screw on oil/water heat exchanger |
Item 2 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing oil/water heat exchanger |
|
|
|
|
|
| Sealant bead application depth |
|
Application depth |
3 mm |
|
|
