Installing Oil/Water Heat EXCHANGER
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of damage or injury from foreign bodies flying around during grinding, drilling and milling
- Risk of eye injuries
→ Wear protective goggles.
Information
Risk of contaminating the lubricating system
- Cover open parts of the cylinder head.
- Install new

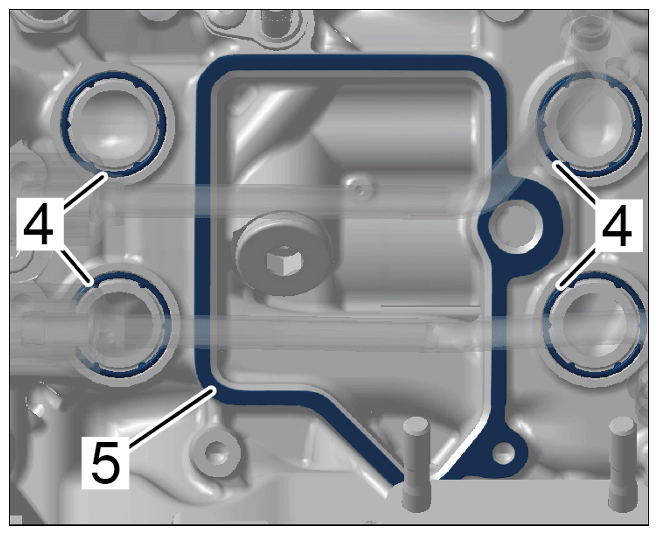

seals -4-
.
Replace seals
- Remove residual sealant from oil/water heat exchanger and cylinder block using a rotating plastic brush.
- Cut off the nozzle on the tube at the front marking (nozzle diameter is approx. 1.5 mm).
Information
Install oil cooler within 5 minutes.
- Apply a bead of sealant all around the cleaned and degreased sealing face -5-
> Application depth 3 mm
Applying sealant
- Further installation is performed in reverse order.
- Screw in and tighten screws > Tightening torque 9 Nm (6.5 ftlb.)
