Removing Oil Pressure Control Valve (V6 Turbo)

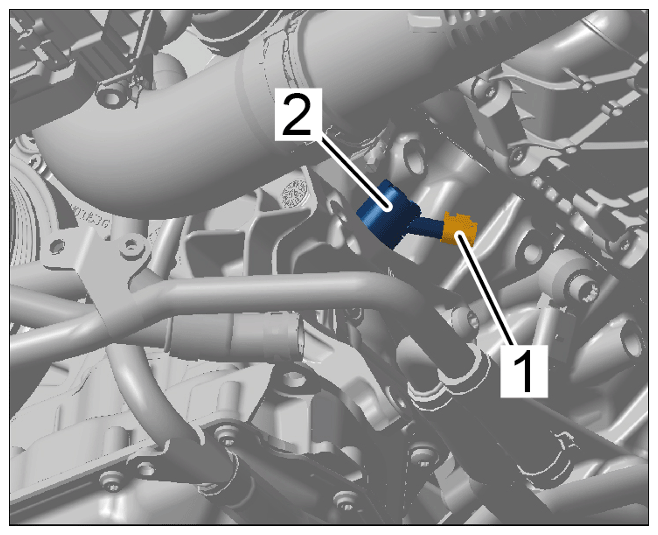

1. Release and disconnect electric plug connection -1-  on the oil pressure control valve -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on oil pressure control valve

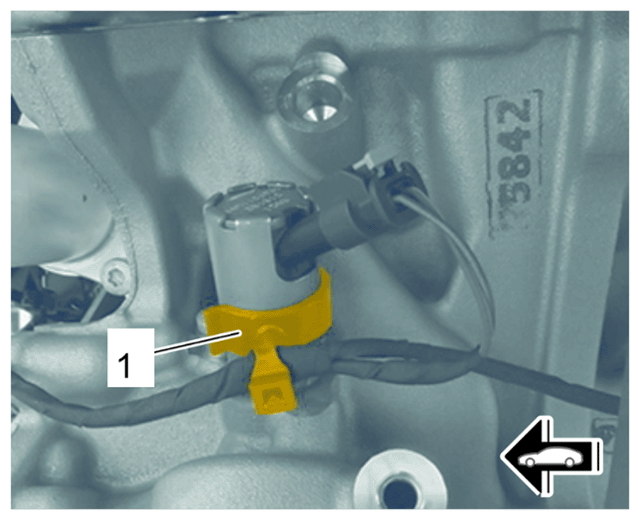

2. Unclip holder -1-  for electric line from oil pressure control valve.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clip for electric line for oil pressure control valve

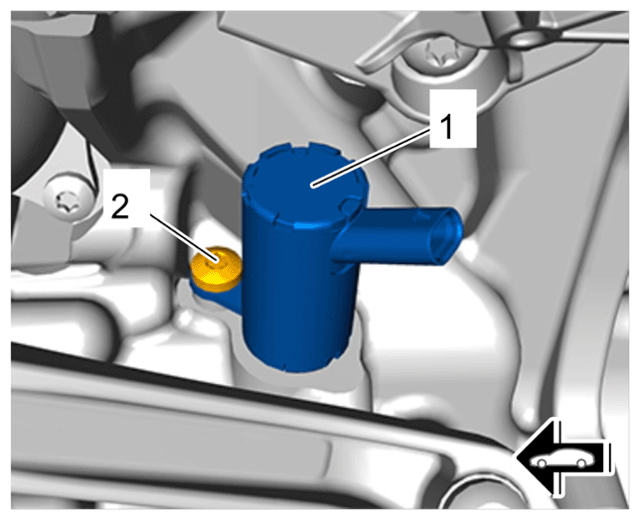

3. Remove oil pressure control valve -1-  .
   1. 3.1 Unscrew and remove screw -2-  .
   2. 3.2 Remove oil pressure control valve -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure control valve screws
