Removing Oil Pump

1. Disconnect sprocket -2-  from oil pump.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

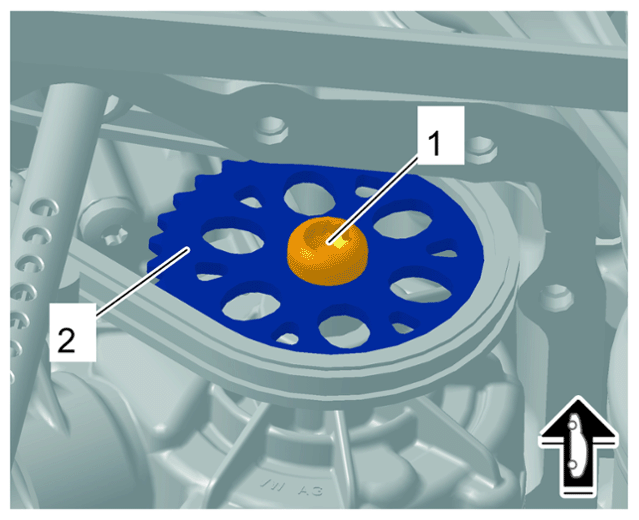

   Mounting for sprocket on oil pump

   1. 1.1 Counter at the sprocket -2-  using > T10172A - counter-hold tool  and unscrew screw -1-  .
   2. 1.2 Pull sprocket -2-  off the oil pump and leave it in installation position.
2. Unscrew screws -1-  and remove oil pump -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

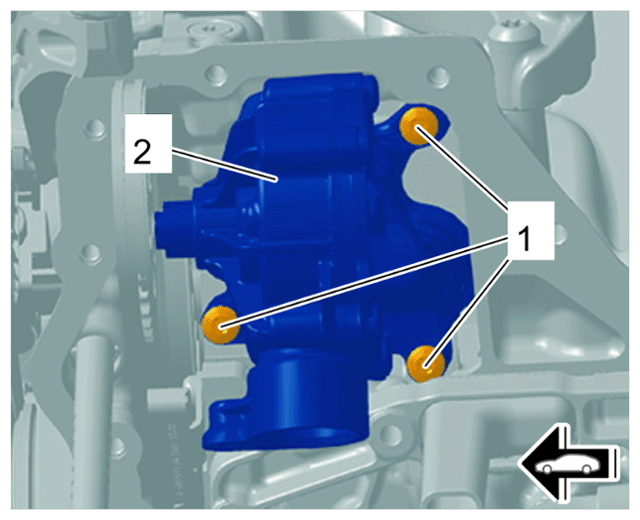

Oil pump threaded joint
