Removing Switch For Height And Fore-And-Aft Adjustment

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The switch for height and fore-and-aft adjustment is located on the underside of the steering column casing.

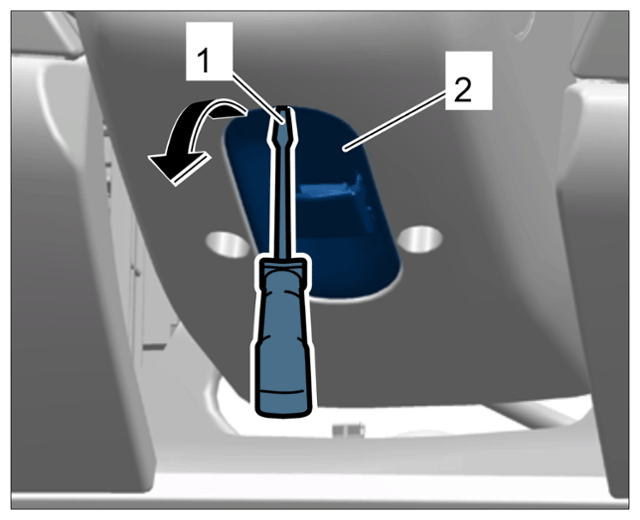

  1. Loosen switch for height and fore-and-aft adjustment -2-.
    1. 1.1 Insert screwdriver -1-  into the slit.
    2. 1.2 Press clip back using the screwdriver -1-.
    3. 1.3 Pull switch for height and fore-and-aft adjustment -2-  away in a downward direction -arrow-.
    G15857079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening switch for height and fore-and-aft adjustment

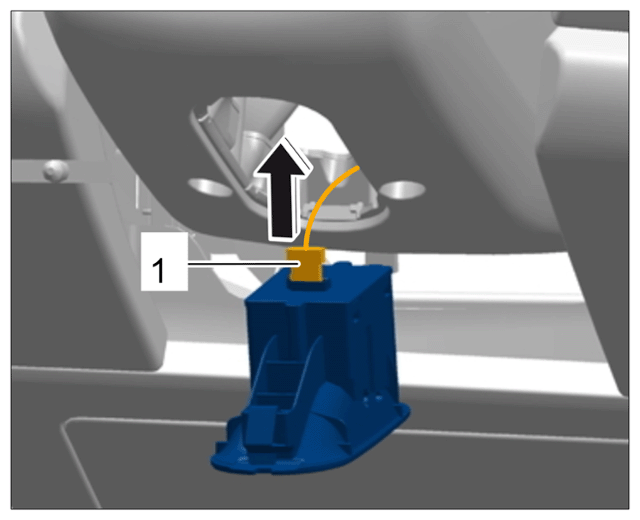

  2. Release electric plug connection -1-  and pull it off -arrow-.
    G15857080Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection
