Technical Values - Trailer Hitch

Location	Description	Type	Basic value
Screw on trailer hitch	Item 1, always replace following removal	Initial tightening	50 Nm (37 ftlb.)

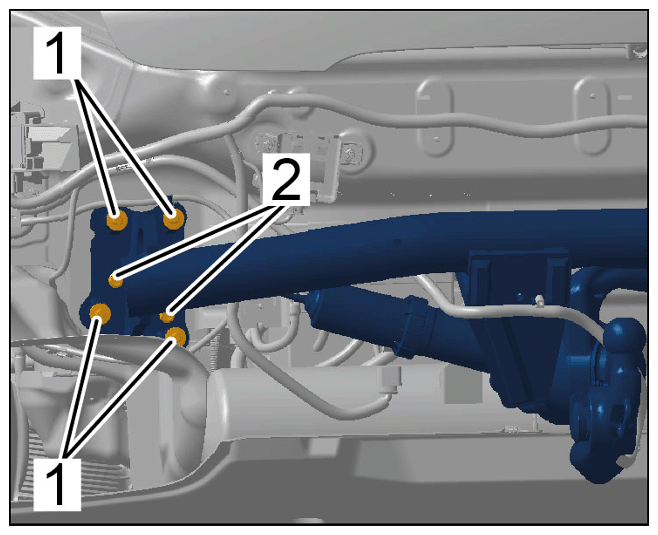

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on trailer hitch
Screw on trailer hitch	Item 1, always replace following removal	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on trailer hitch
Screw on trailer hitch	Item 2, always replace following removal	Initial tightening	16 Nm (12 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on trailer hitch
Screw on trailer hitch	Item 2, always replace following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on trailer hitch
Nuts for trailer hitch control unit holder	Item 3	Tightening torque	4.7 Nm (3.5 ftlb.)
Screw for trailer hitch control unit holder	Item 4	Tightening torque	4.7 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailer hitch control unit holder
Screw on trailer hitch housing	Item 1	Tightening torque	5 Nm (3.5 ftlb.)

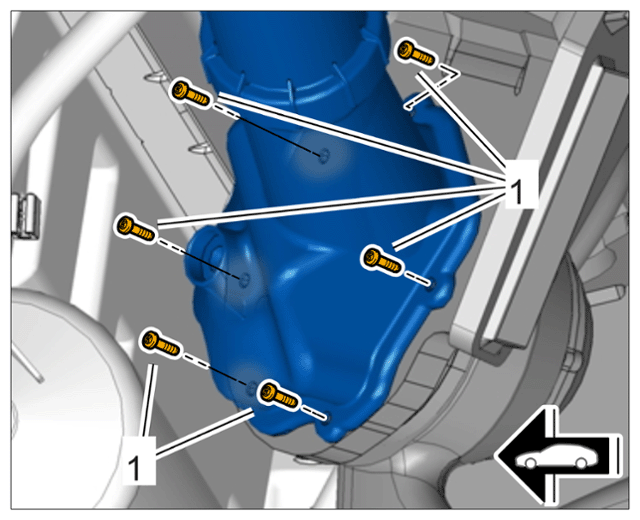

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on trailer hitch housing
Nut on trailer hitch bevel gear bolt		Tightening torque	6 Nm (4.5 ftlb.)

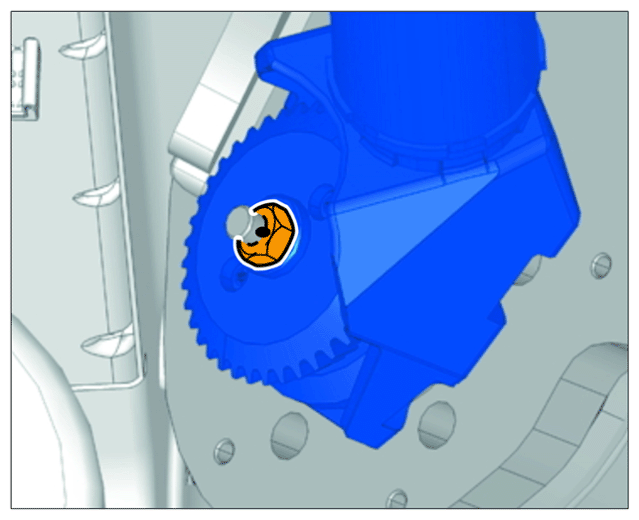

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on trailer hitch bevel gear bolt
Screw on trailer hitch motor	Item 1	Tightening torque	3 Nm (2 ftlb.)

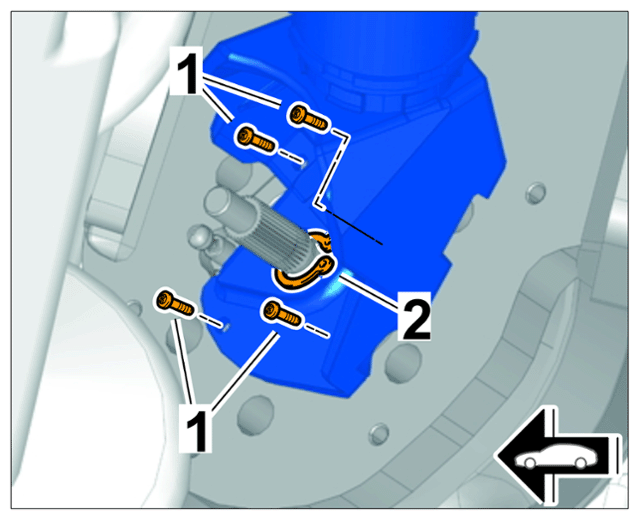

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screwing off motor
