Technical Values - Rear Spoiler, Spoiler Drive

Location	Description	Type	Basic value

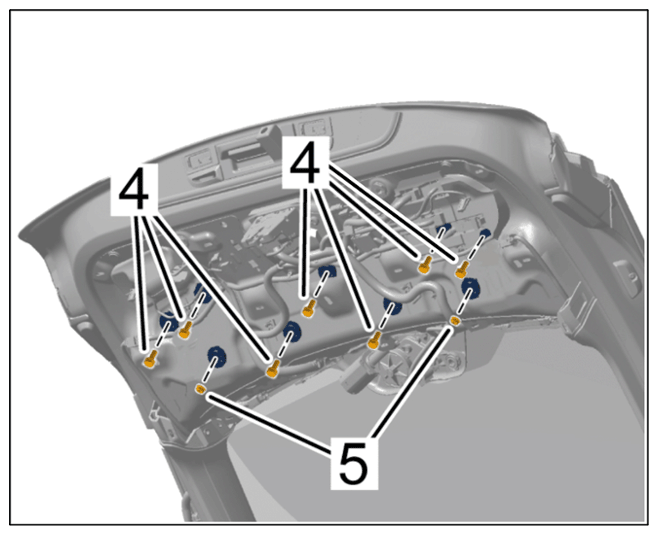

Nuts on rear spoiler	Item 5	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on spoiler drive
Screws on rear spoiler	Item 4	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on spoiler drive

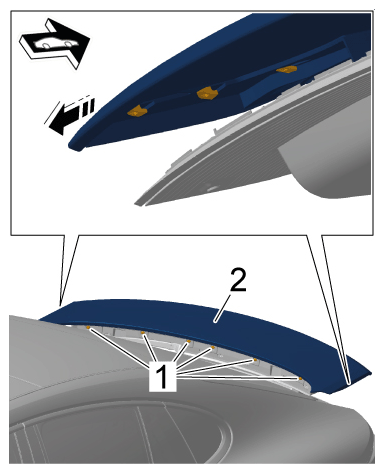

Screws securing trim to rear spoiler	Item 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing trim to rear spoiler

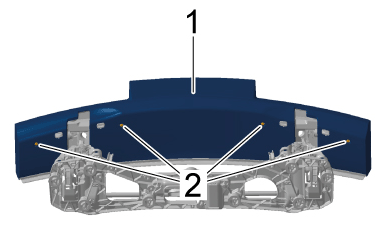

Screws securing rear spoiler closing element to spoiler drive	Item 2	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear spoiler closing element to bracket

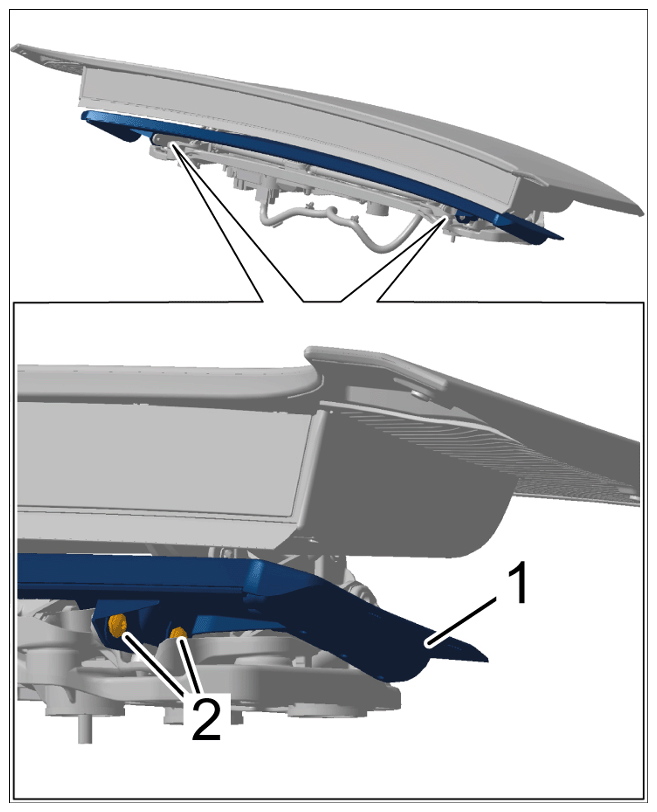

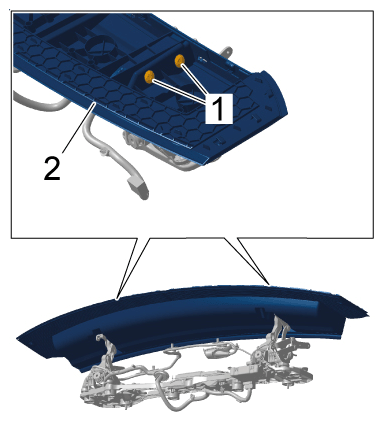

Screws securing lower part of spoiler to spoiler drive	Item 1	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing lower part of spoiler to bracket

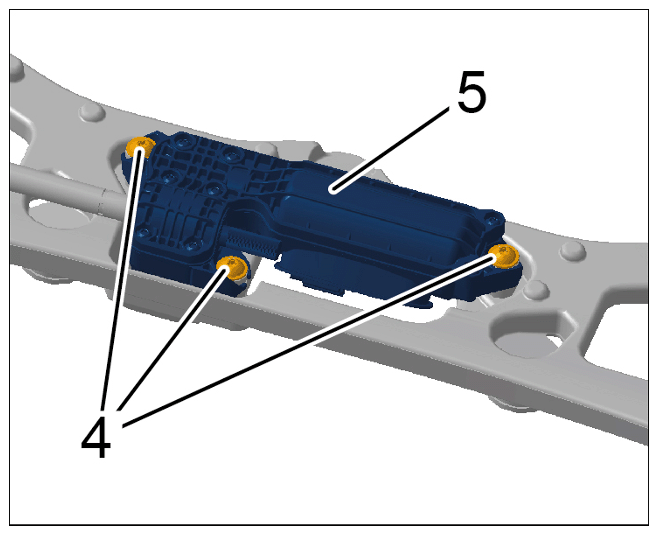

Screw securing rear spoiler motor to bracket	Item 4	Tightening torque	0 Nm (0 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrew screws.

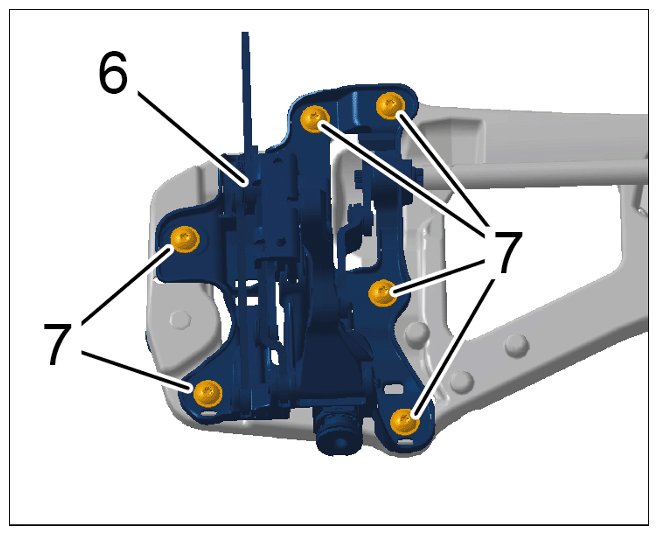

Screws securing spoiler drive to bracket	Item 7	Tightening torque	0 Nm (0 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing spoiler drive to bracket

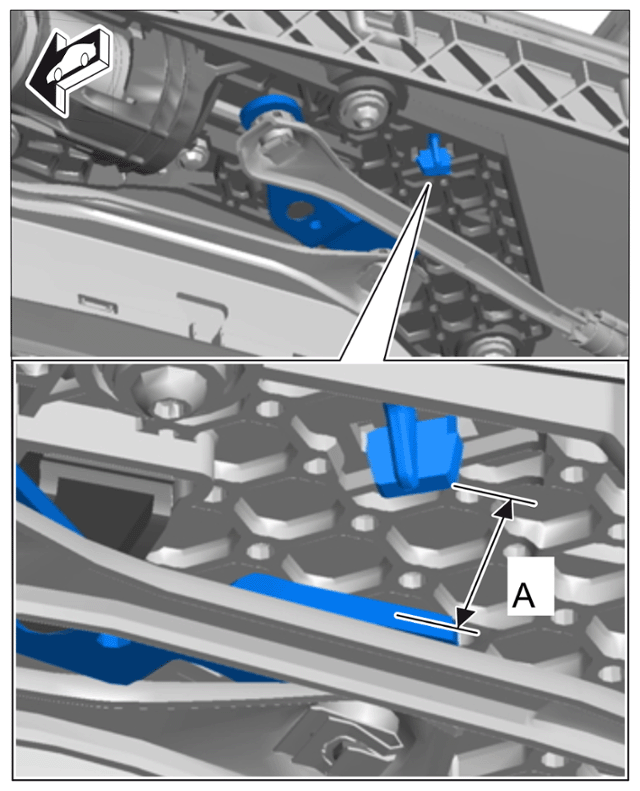

Gap between deflection lever and limit stop	Dimension A	Gap	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Moving motor for spoiler drive into adjustment position

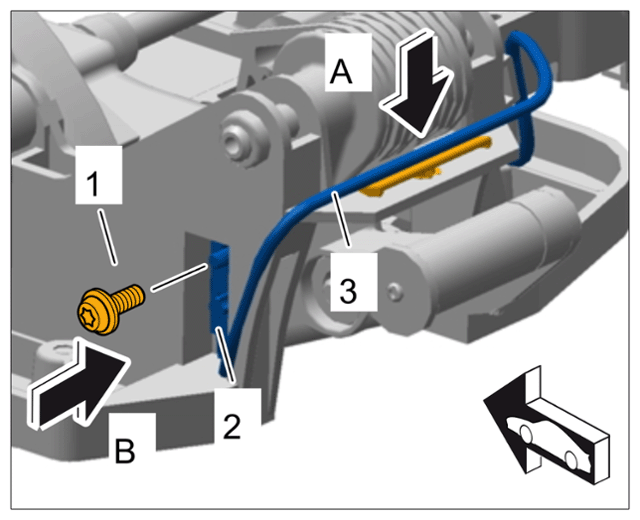

Screw securing rear-spoiler microswitch to spoiler drive	Item 1	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear spoiler microswitch to spoiler drive

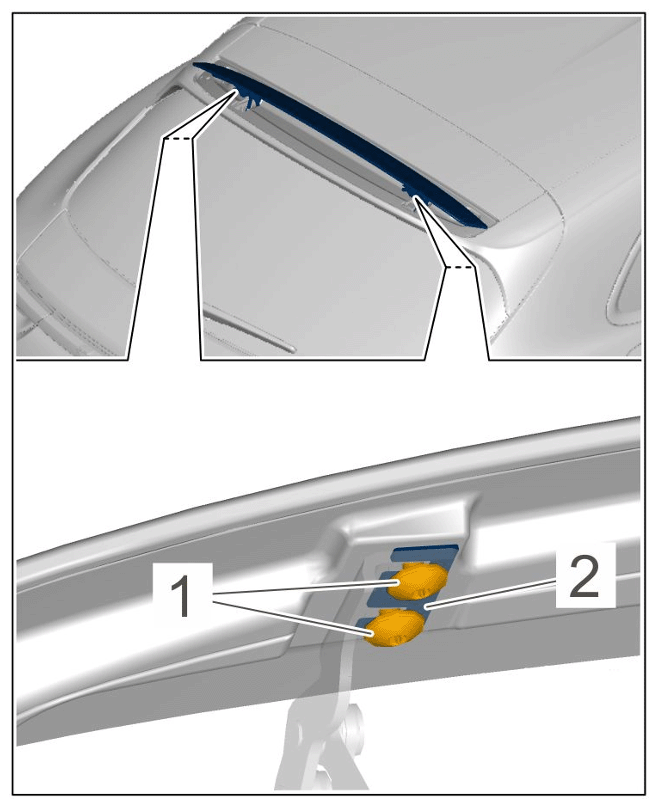

Screw securing trim to lower part of spoiler (wing)	Item 2	Tightening torque	1.3 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing trim to lower part of spoiler (wing)
Screw securing rear spoiler to bracket	M6 x 32	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear spoiler to bracket

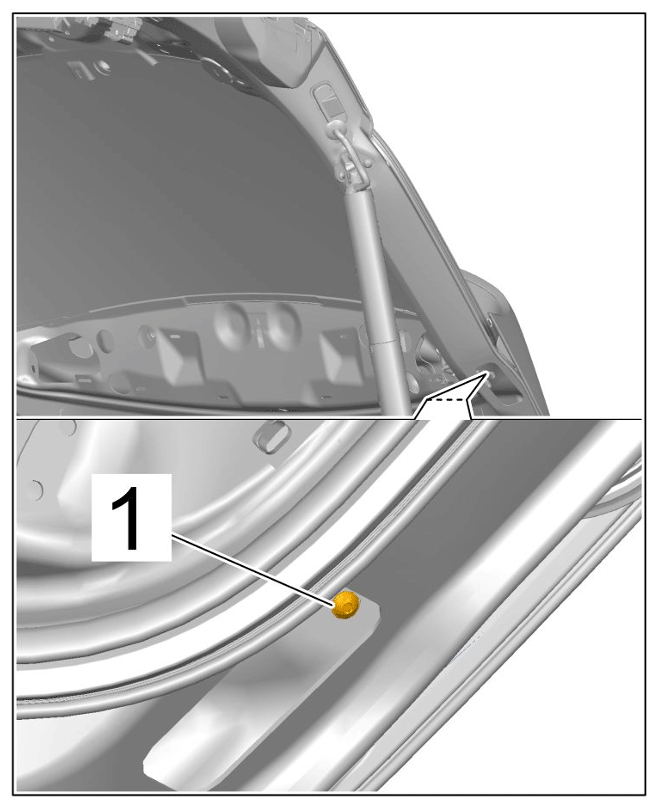

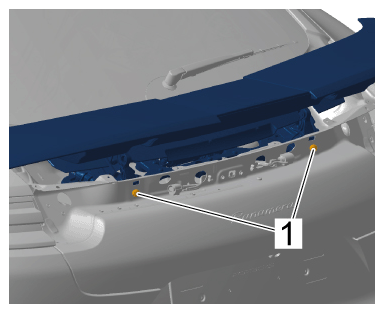

Screws securing rear spoiler to rear lid, side	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

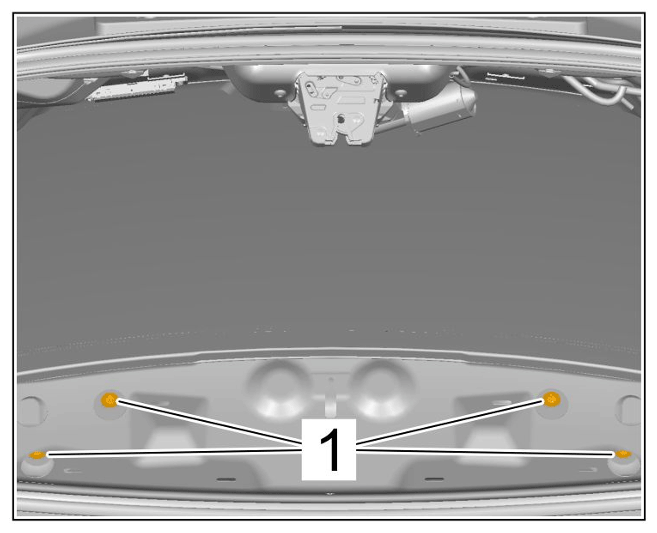

Screws securing rear spoiler to rear lid	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Rear spoiler (wing)	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler (wing)

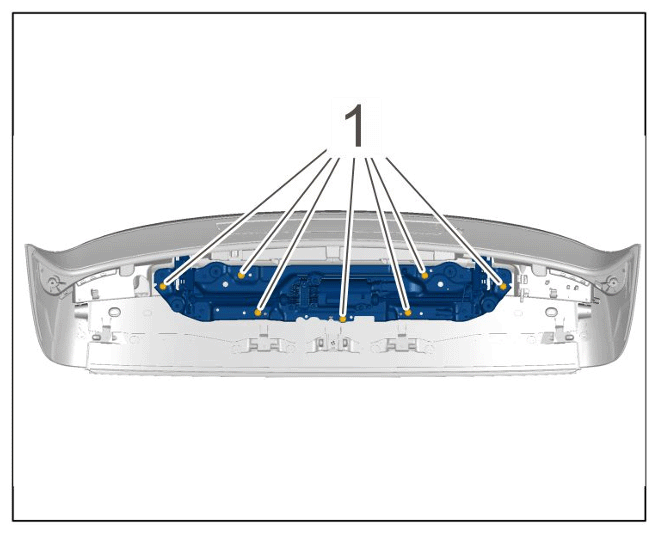

Spoiler drive	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

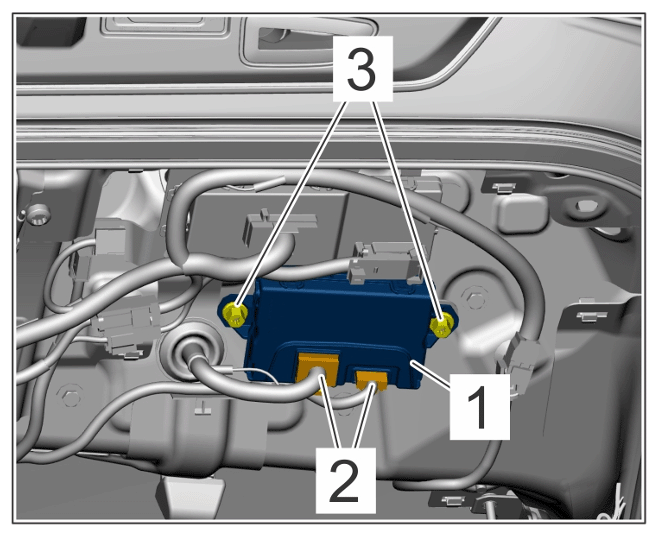

Nuts securing control unit for rear spoiler to rear lid	Item 3	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit for rear spoiler
