Removing Rear Wheel Housing Liner

  1. Unscrew screw -3-  and nuts -2-  on rear wheel housing liner -1-  .
    Fig 1: Rear Wheel Housing Liner Component Location
    G16370929

    Releasing rear wheel housing liner

  2. Unscrew nuts -2-  on rear wheel housing liner -1-  .

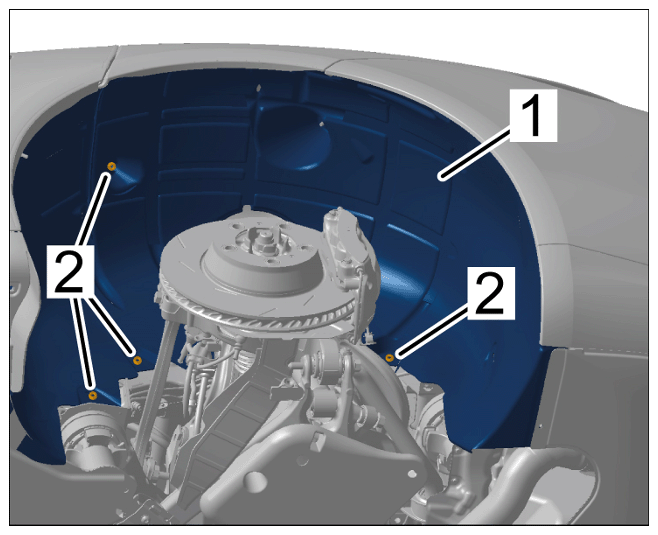

    G16370930

    Releasing rear wheel housing liner

  3. Remove rear wheel housing liner -1-  .

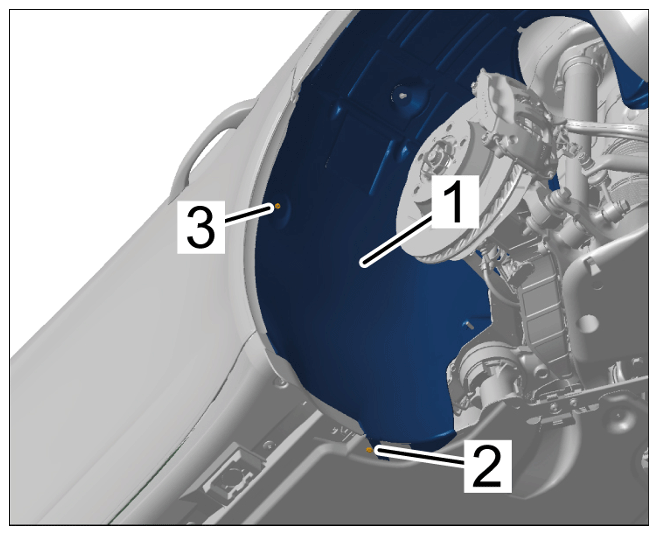

    G16370931

    Removing rear wheel housing liner

    1. 3.1 Unscrew screw -2-  and nut -3-  .
    2. 3.2 Remove rear wheel housing liner -1-  .
