WM, 536855 Replacing (Outer) Wheel Housing Rear: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16370868

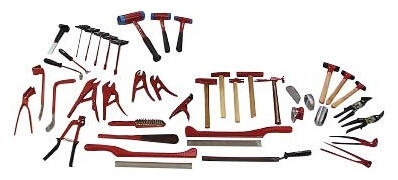

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16370869

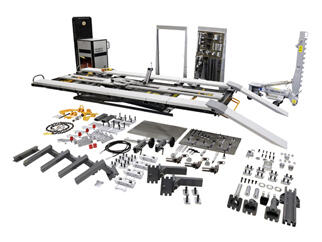

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16370870

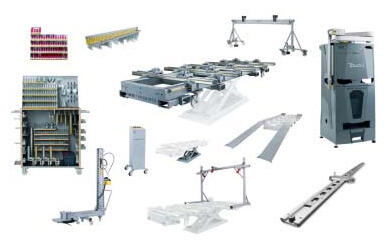

Measuring and straightening system General workshop equipment > VAS 811 017
G16370871

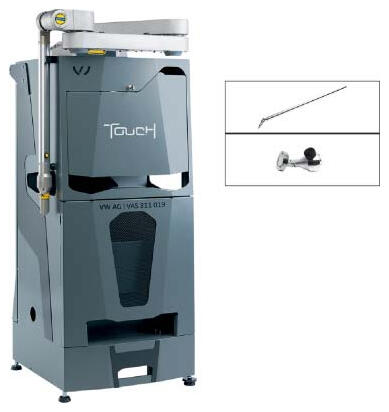

Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16370872

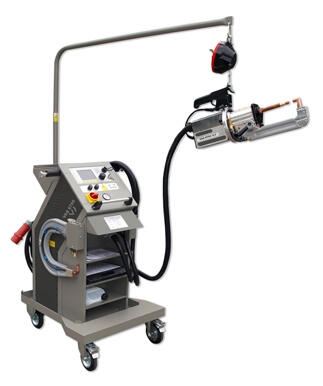

Resistance spot-welding equipment General workshop equipment > VAS 6755
G16370873

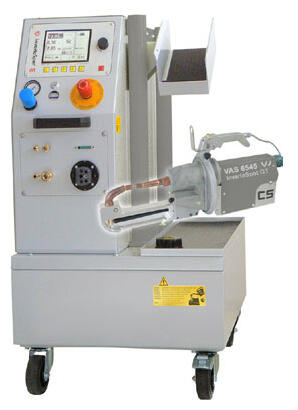

Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16370874

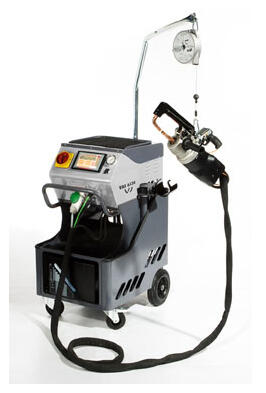

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16370875
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16370876
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16370877

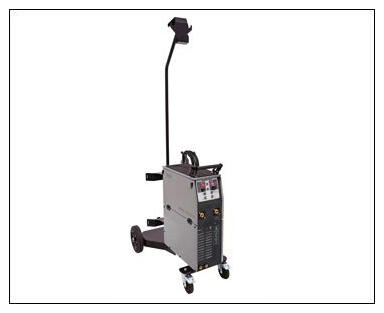

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16370878

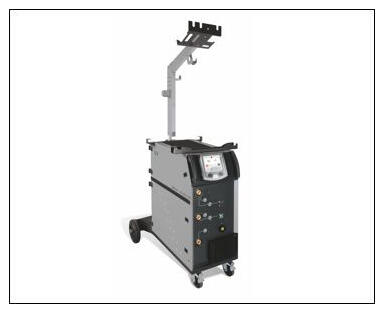

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16370879

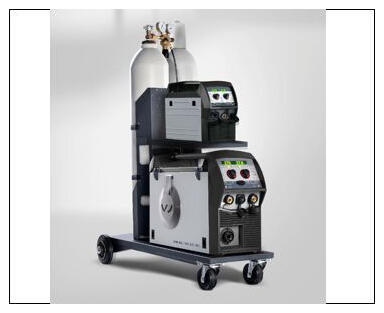

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16370880
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16370881
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16370882
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866

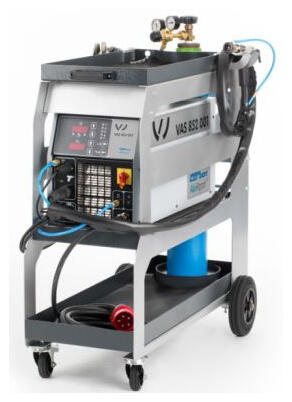

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16370883
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16370884
Extraction system, steel General workshop equipment > VAS 6571/1
G16370885

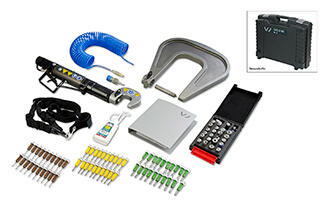

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16370886
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16370887

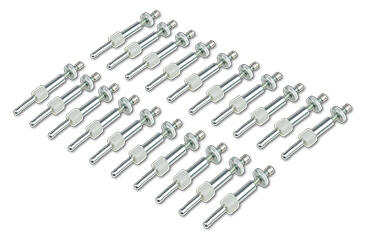

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16370888

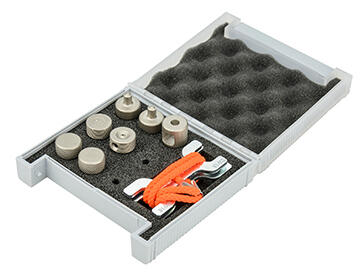

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16370889

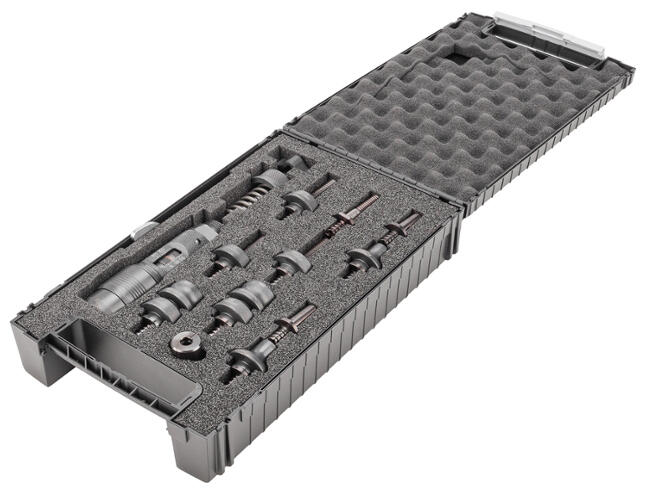

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16370890

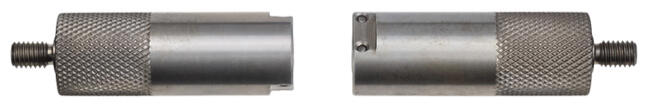

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16370891

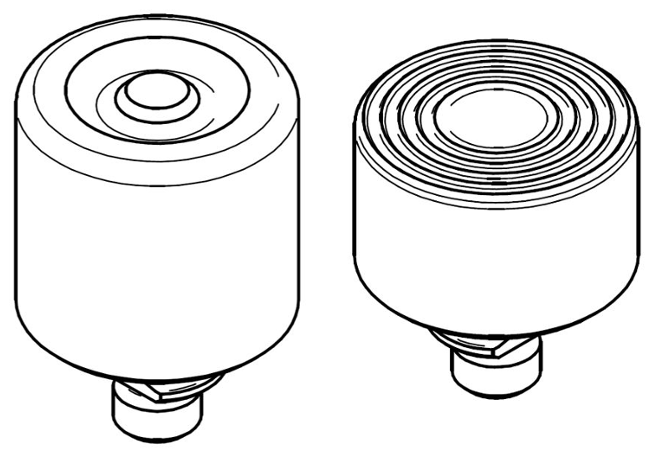

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16370892

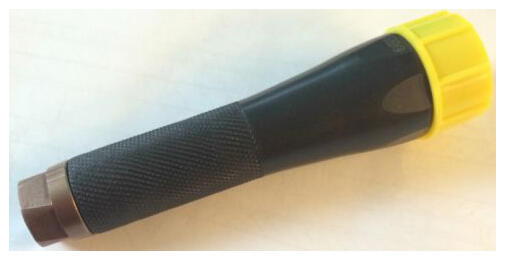

Extension Vehicle-specific workshop equipment > VAS 6792/2
G16370893

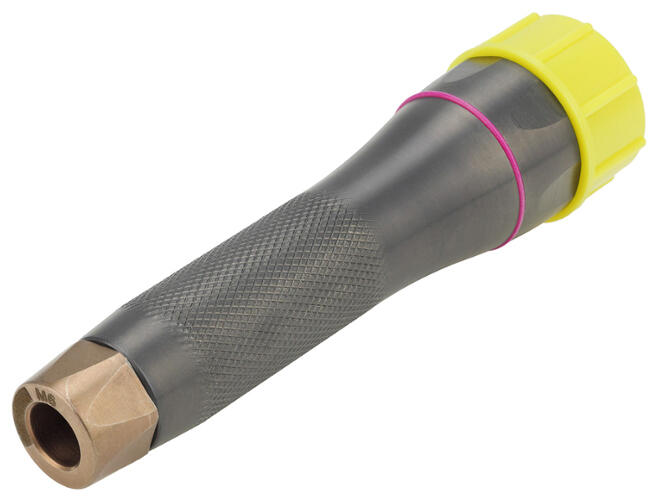

Extension Vehicle-specific workshop equipment > VAS 6792/28
G16370894
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16370895
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16370896

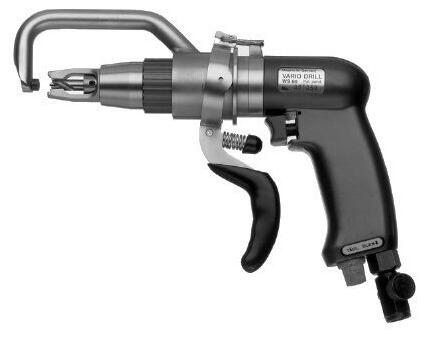

Spot-weld remover General workshop equipment > VAS 882 001
G16370897

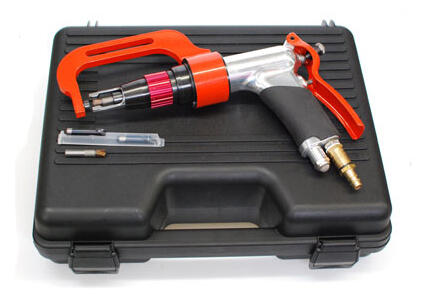

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16370898

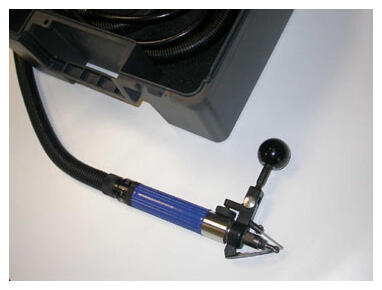

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16370899

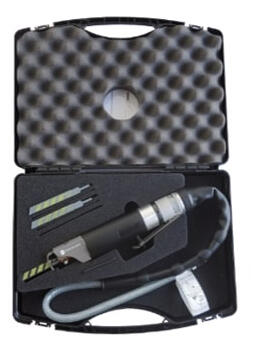

Body saw General workshop equipment > VAS 882 003
G16370900

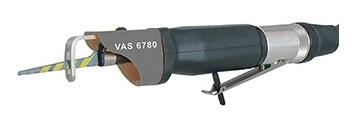

Body saw General workshop equipment > VAS 6780
G16370901
Body saw General workshop equipment > VAS 6598A
G16370902

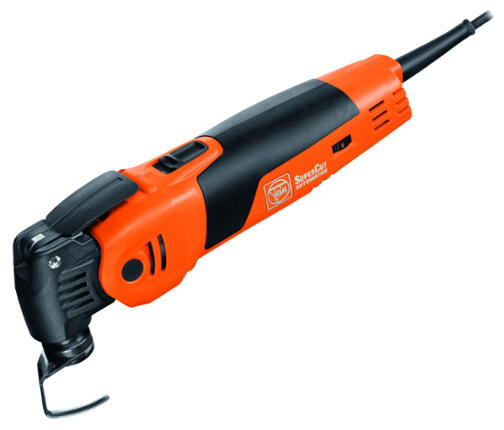

Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16370903

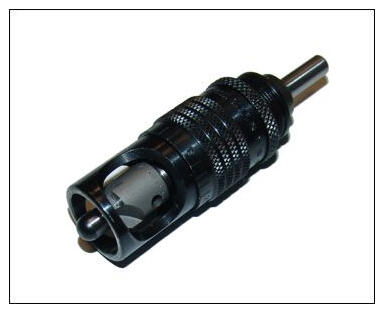

100° countersink Vehicle-specific workshop equipment > VAS 6957
G16370904

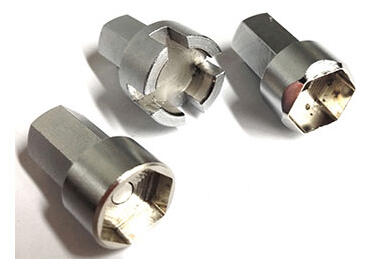

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16370905

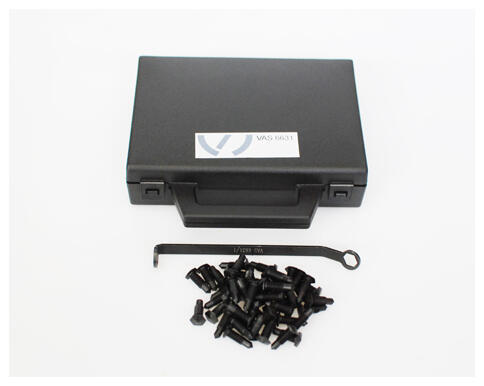

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16370906
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11

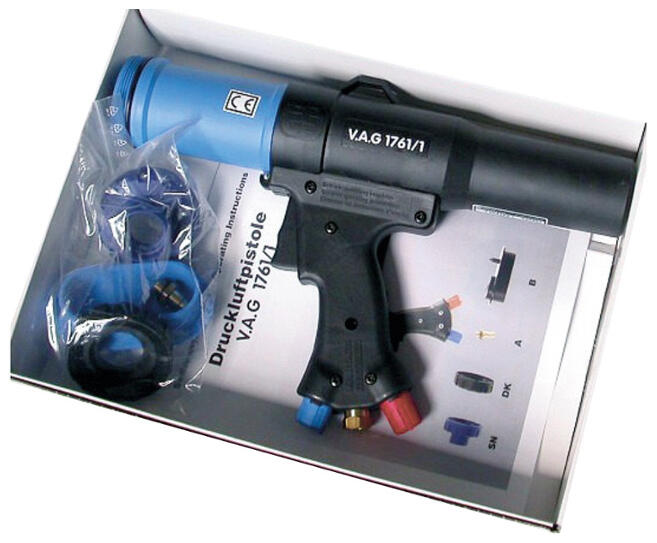

Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16370907

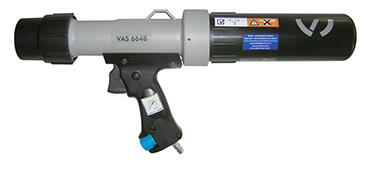

Compressed-air gun General workshop equipment > VAS 6648
G16370908

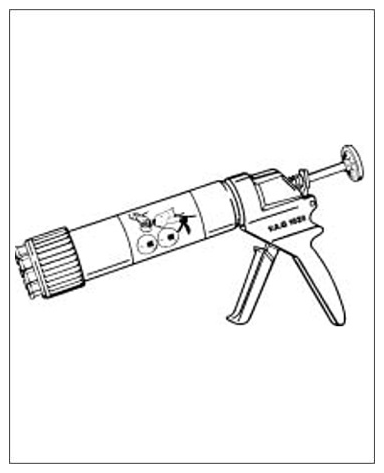

Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16370909

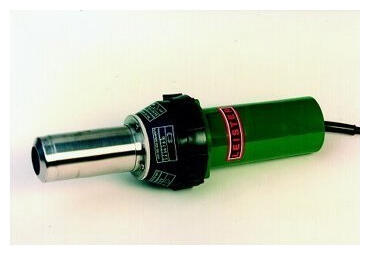

Hot-air blower General workshop equipment > V.A.G 1416
G16370910

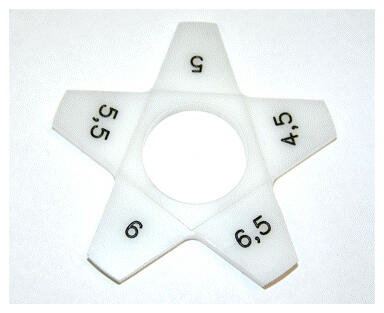

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16370911
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16370912

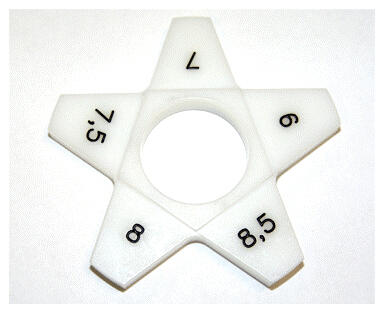

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16370913
