Preparing Connection Areas Of The Body For Installing The Outer Wheel Housing Rear

  1. Align the sealing surface and connections of the body.
  2. Prepare connection areas for bonding.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

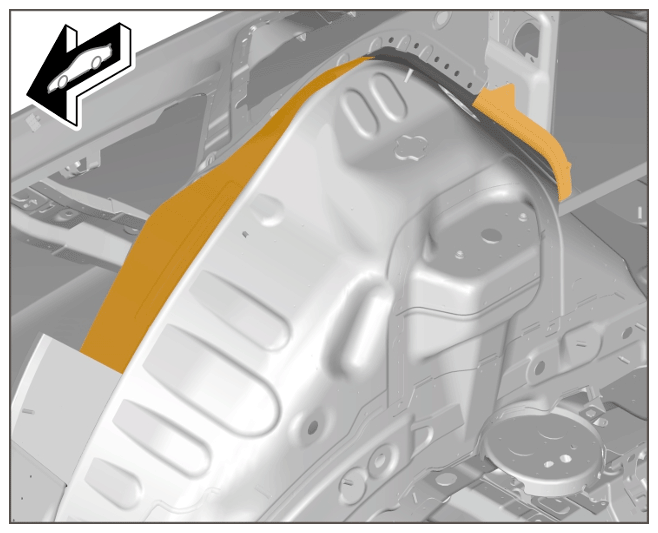

    G16370921

    Connection areas

  3. Prepare connection areas for bonding.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

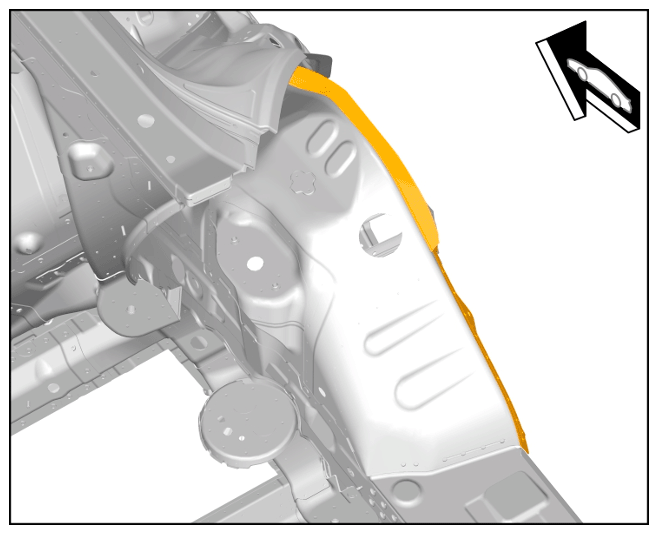

    G16370922

    Connection areas
