Removing Side Section - Lower Part

  1. Roughly cut out side section lower part.

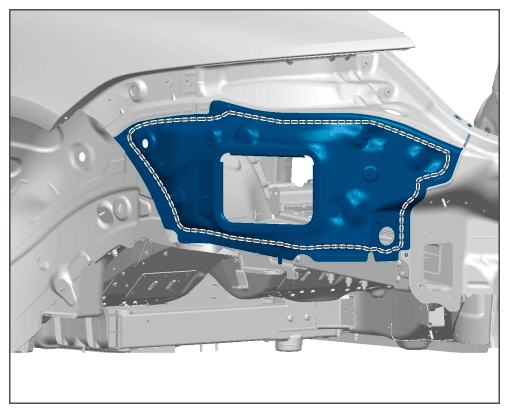

    G16370630

    Side section lower part

  2. Only for Panamera Saloon

    Drill through clinch points in area -A-  . > Diameter 6.6 mm

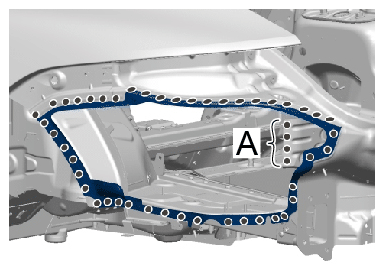

    G16370631

    Clinch points

  3. Drill through clinch points. > Diameter 6.6 mm
    G16370632

    Clinch points

  4. Heat bonding surfaces. > V.A.G 1416 - Hot-Air Blower

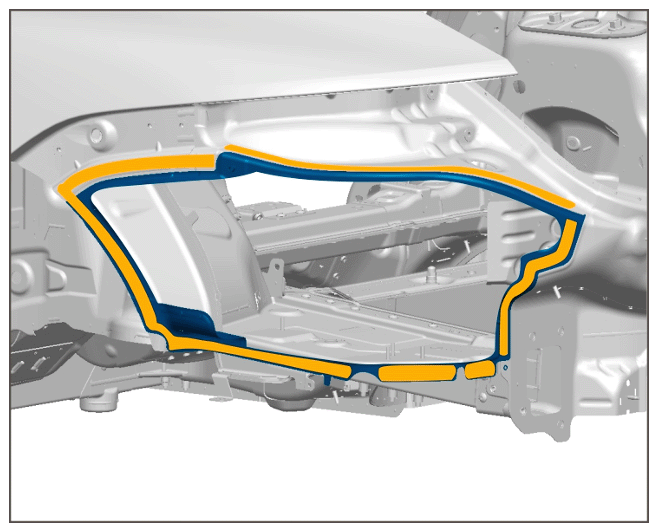

    G16370633

    Bonding surfaces

    Information

    Carefully remove remaining pieces using a suitable tool. Connection points are needed for rivet joints.

  5. Remove remaining sheetmetal parts and rear section of inner rear wheel housing.
