Removing Rear Side Member (Section)

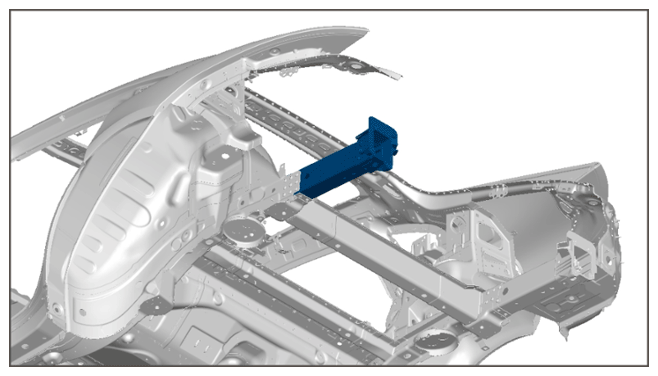

Fig 1: Rear Side Member Component Location (Section)
G16370351

Installation position of rear side member (section)

  1. Unscrew self-tapping screws.

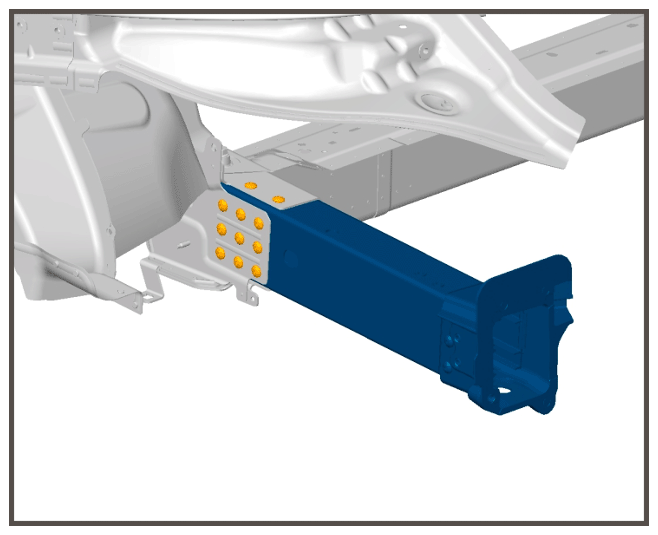

    G16370352

    Unscrewing self-tapping screws

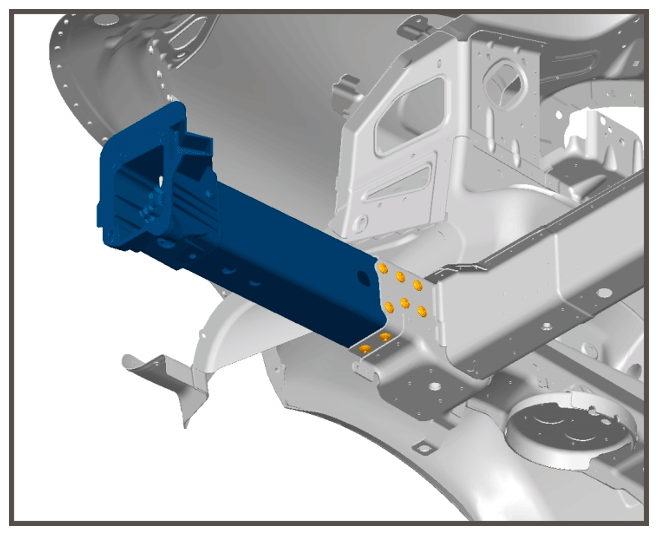

    G16370353

    Unscrewing self-tapping screws

  2. Heat up bonding areas.

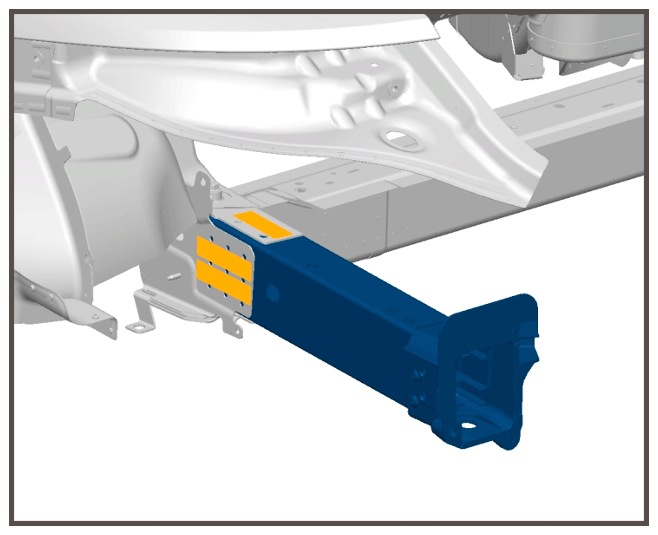

    G16370354

    Heating up bonding areas

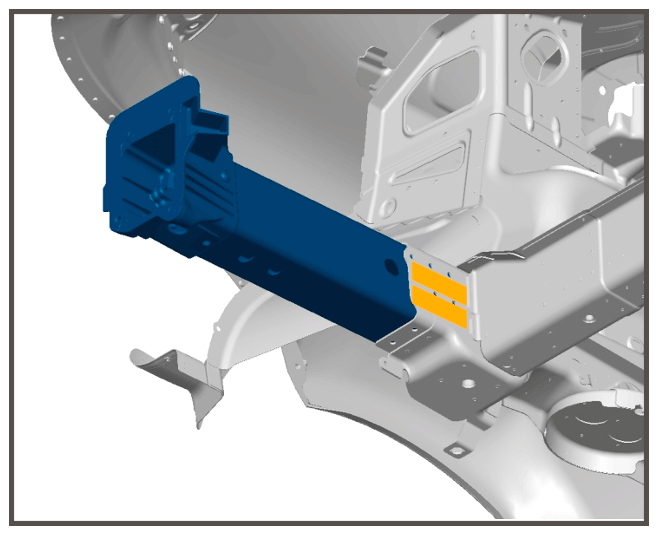

    G16370355

    Heating up bonding areas

  3. Remove rear side member (section).
