Preparing Rear Side Member (Section)

  1. Fit in rear side member (section) and secure it to the body.
  2. Drill bores for screws through the existing holes. > Diameter 3.5 mm

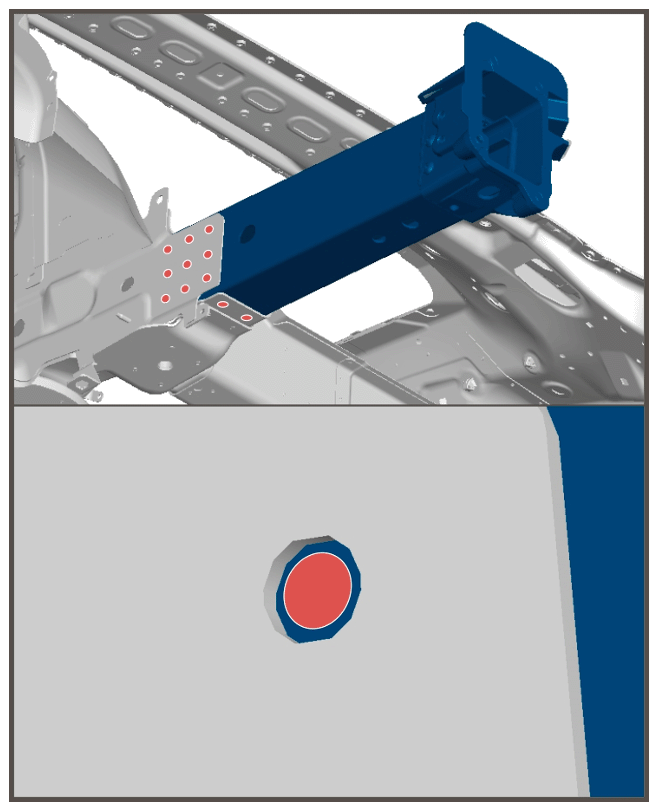

    G16370356

    Drilling holes

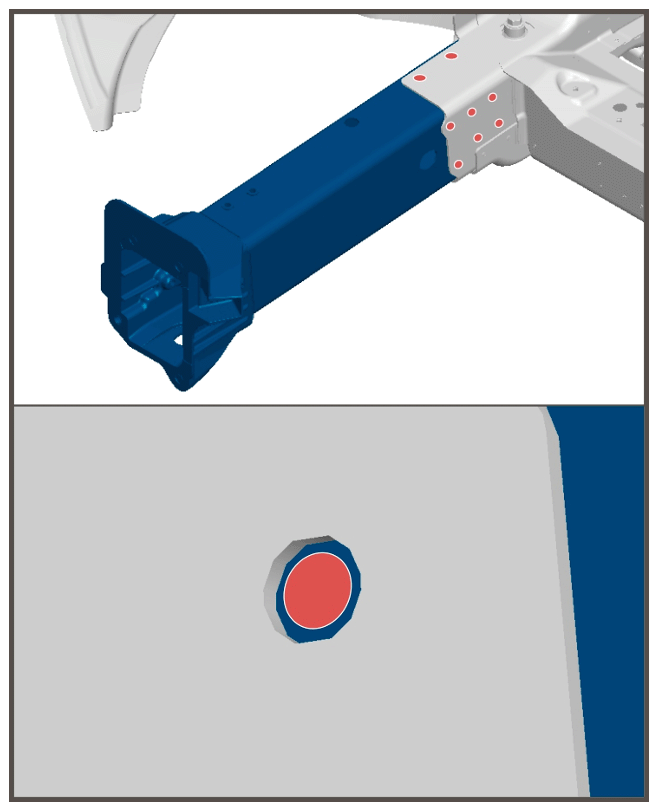

    G16370357

    Drilling holes

  3. Remove rear side member (section).
  4. Prepare rear side member (section) for bonding.

    > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

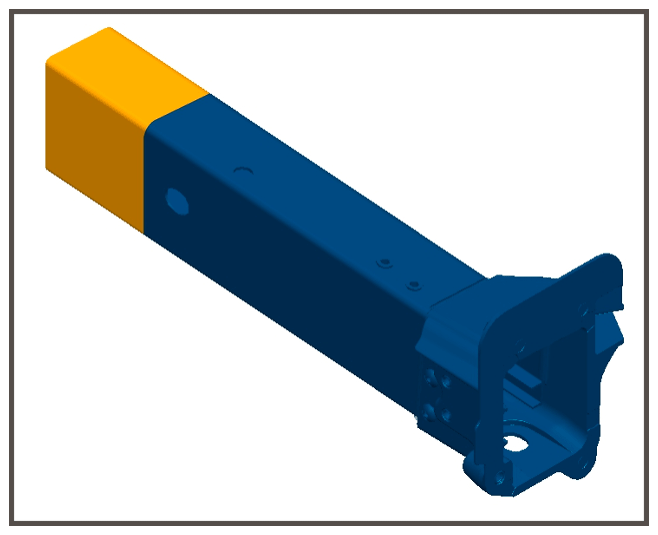

    G16370358

    Preparing rear side member (section)

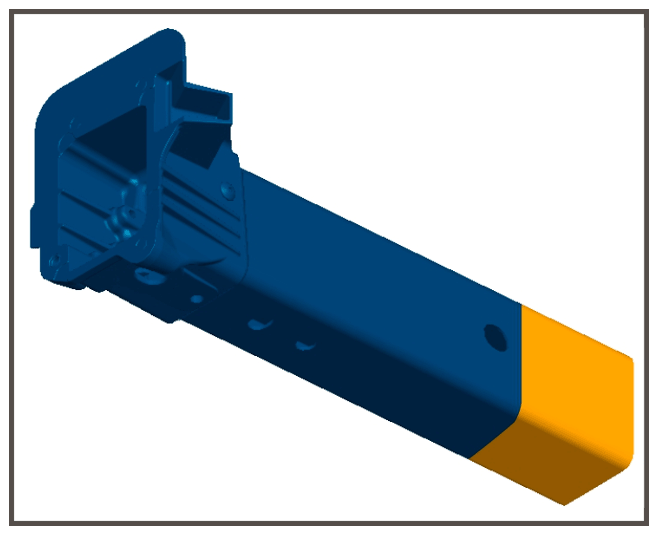

    G16370359

    Preparing rear side member (section)
