Preparing Connection Areas Of Body For Installing Rear Side Member (Section)

  1. Drill out thread.

    > Diameter 7.0 mm

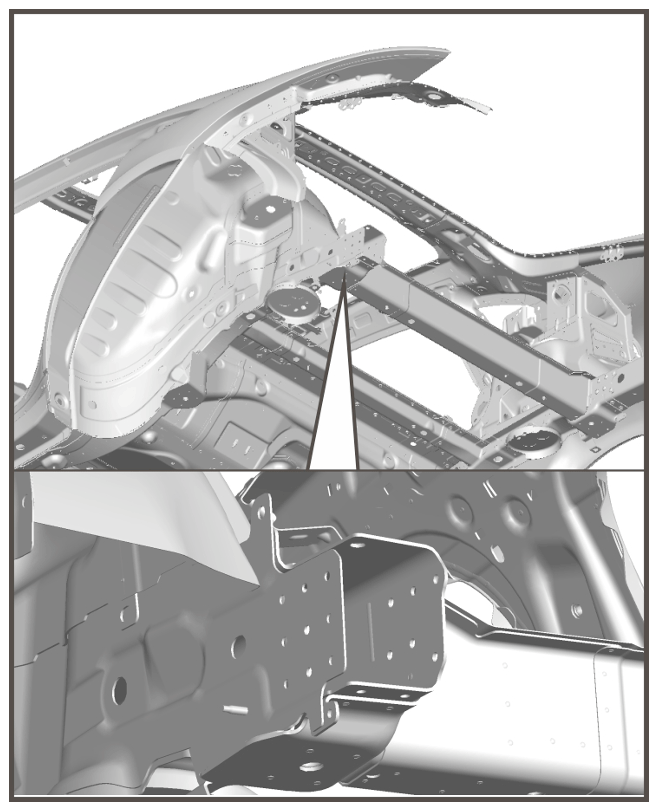

    G16370360

    Drilling out thread

  2. Prepare connection areas for bonding.

    > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

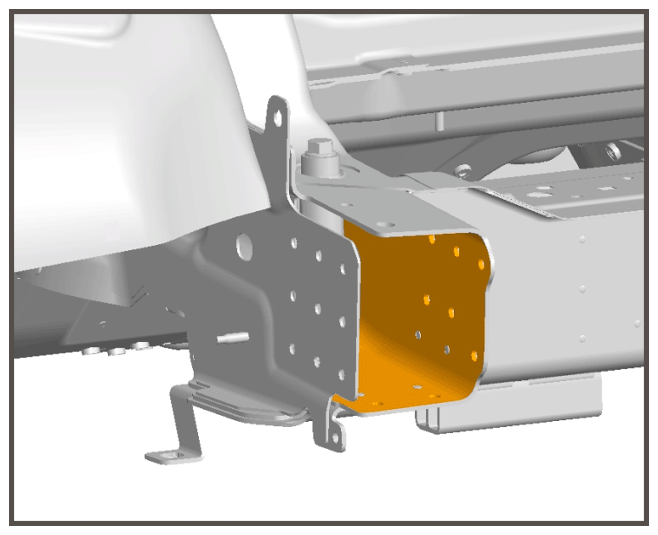

    G16370361

    Preparing connection areas for bonding

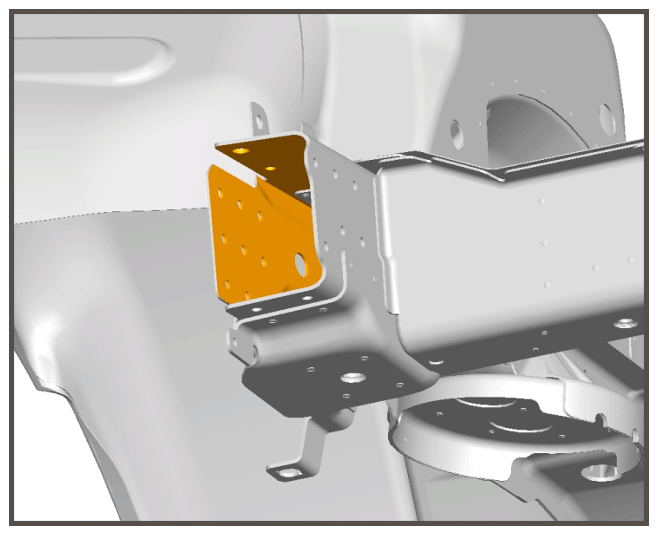

    G16370362

    Preparing connection areas for bonding
