WM, 532955 Replacing C-Pillar Reinforcement: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16370090

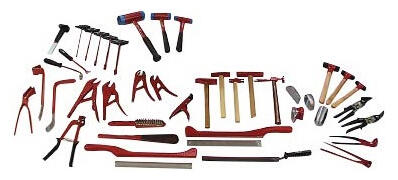

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16370091
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16370092
Measuring and straightening system General workshop equipment > VAS 811 017
G16370093
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16370094
Resistance spot-welding equipment General workshop equipment > VAS 6755
G16370095
Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16370096

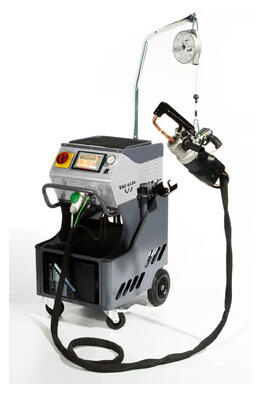

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16370097
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16370098
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16370099
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16370100
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16370101
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16370102
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16370103
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16370104
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16370105
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16370106
Extraction system, steel General workshop equipment > VAS 6571/1
G16370107
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16370108
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16370109
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16370110
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16370111
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16370112
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16370113
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16370114
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16370115
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16370116
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16370117
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16370118
Spot-weld remover General workshop equipment > VAS 882 001
G16370119
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16370120

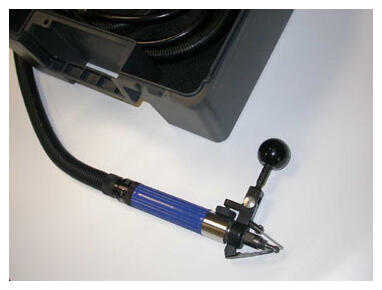

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16370121

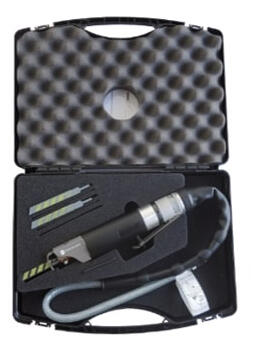

Body saw General workshop equipment > VAS 882 003
G16370122

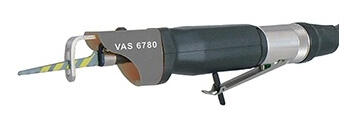

Body saw General workshop equipment > VAS 6780
G16370123
Body saw General workshop equipment > VAS 6598A
G16370124
Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16370125
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16370126
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16370127
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16370128
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16370129
Compressed-air gun General workshop equipment > VAS 6648
G16370130
Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16370131

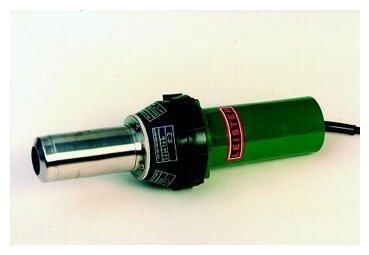

Hot-air blower General workshop equipment > V.A.G 1416
G16370132

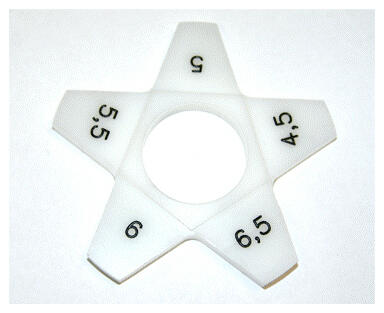

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16370133
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16370134

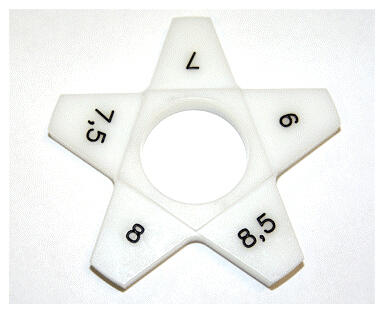

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16370135
