Removing Rear Rear-End Well

  1. Unscrew screws -1-  and remove holder -2-  on the lock carrier.

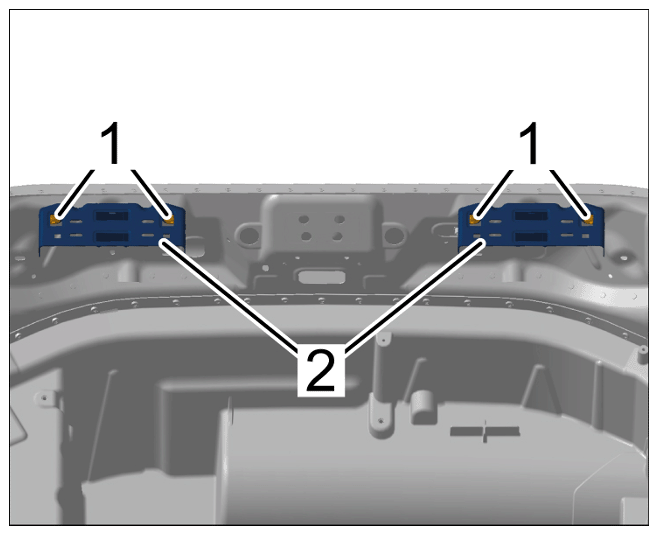

    G16370073

    Holder on lock carrier

  2. Remove rear rear-end well -1-  .
    1. 2.1 Cut out rear rear-end well -1-  using > V.A.G 1561B - Electric cutter  at bonding surface -2-  .
    2. 2.2 Remove rear rear-end well -1-  .

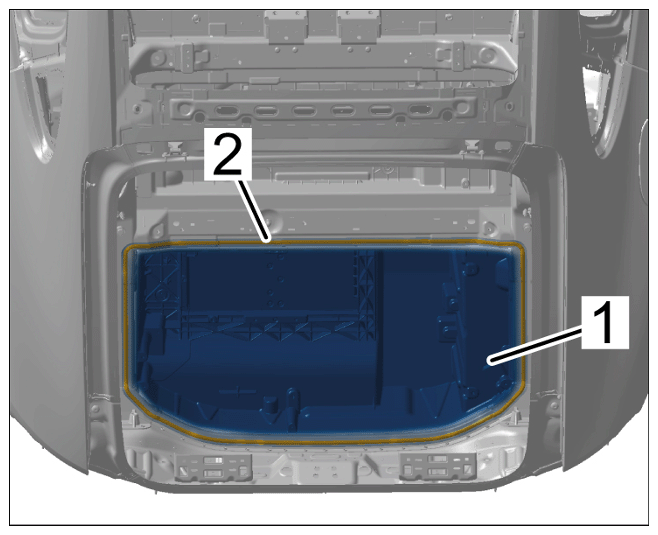

    G16370074

    Rear rear-end well
