Installing Front Rear-End Well

Information

• When applying adhesive, always make sure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Prepare 2-component adhesive for processing. Read and follow the processing instructions!

   > 6X00IN Working with Porsche 2-component window adhesive

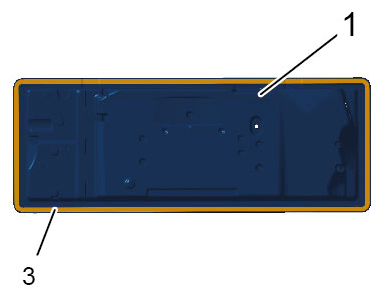

2. Using the bonding gun, apply 2-component adhesive to the front rear-end well -1-  along the cut-back adhesive bead in the form of a triangular bead of adhesive -3-  . > Application depth 15 mm

   Front rear-end well

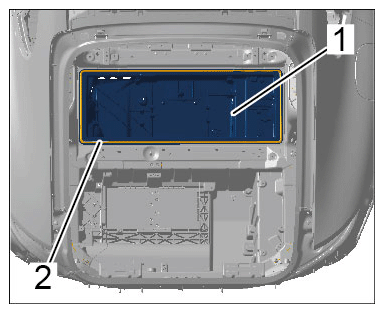

3. Fit front rear-end well -1-  on the body from above.

   Front rear-end well

4. Weigh down the front rear-end well -1-  evenly using weights.

Front rear-end well
