Removing Closing Cross Member (Sport Turismo)

  1. Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

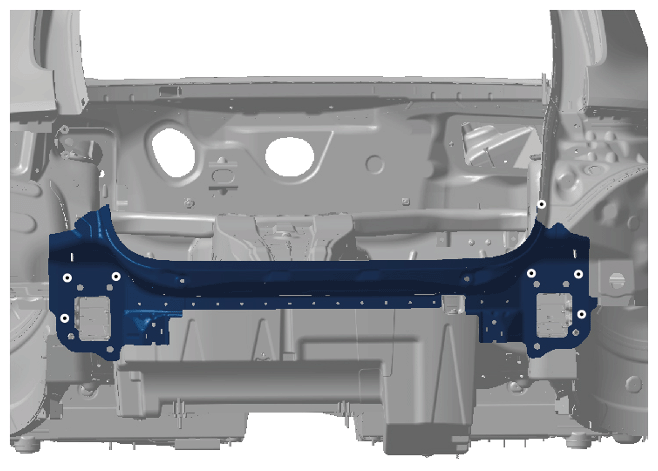

    G16370046

    Punch rivets

  2. Drill through clinch points in area -A-  . > Diameter 6.6 mm

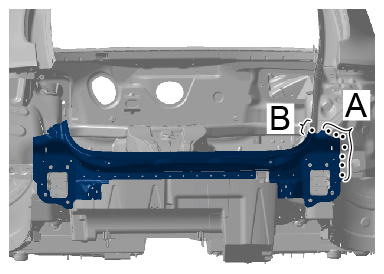

    G16370047

    Clinch points

  3. Drill through clinch point in area -B-  . > Diameter 4 mm
    G16370048

    Clinch point

  4. Cut welded seam -1-  on the closing cross member (Sport Turismo).

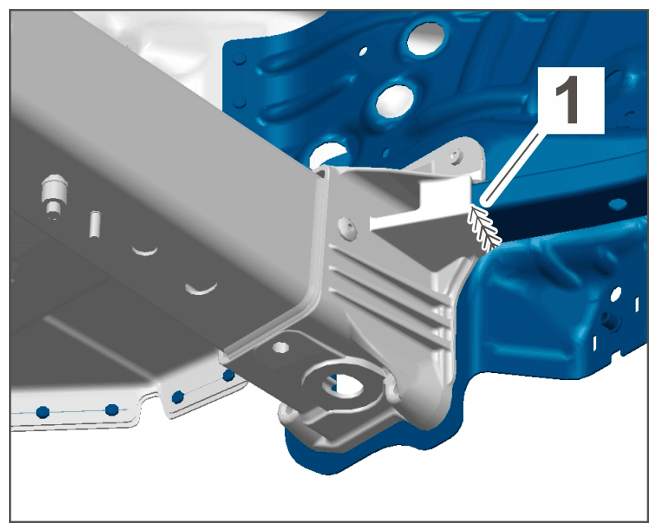

    G16370049

    Welded seam

  5. Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

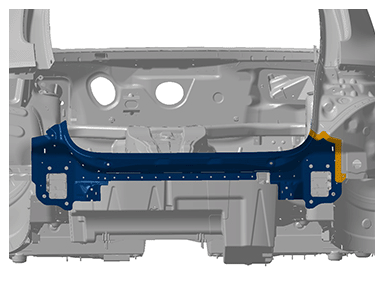

    G16370050

    Bonding area

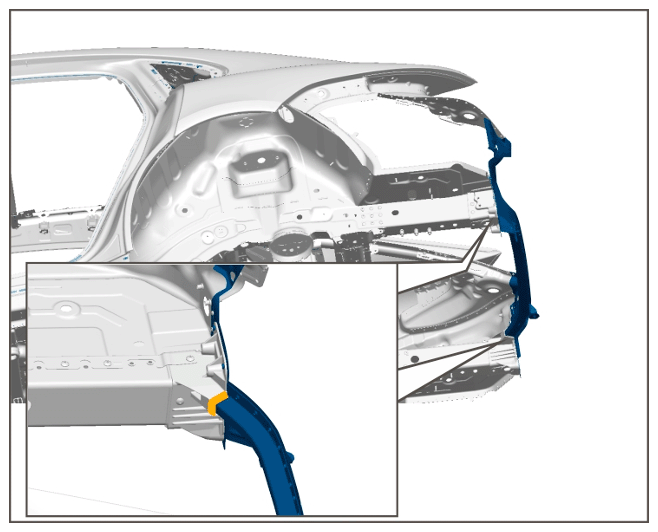

    G16370051

    Bonding areas

  6. Remove rear closing panel (Sport Turismo) with closing cross member (Sport Turismo).
