Installing Rear Side Window Pane

1. Clean the body in the front sealing lip area using isopropyl.
2. Insert the rear side window pane into the window aperture.
3. Set a uniform gap dimension by moving the side window.
4. Screw in and tighten nuts -5-  > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

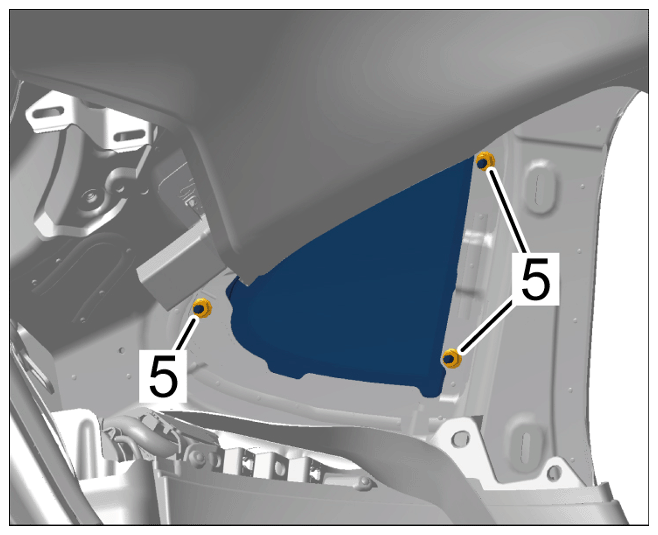

   Tighten nuts

5. Clip in trim frame -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

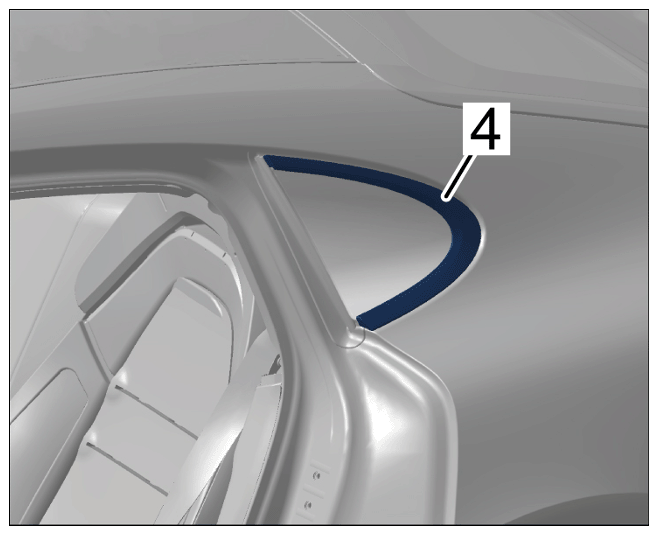

   Clipping in trim frame

6. Affix sealing lip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

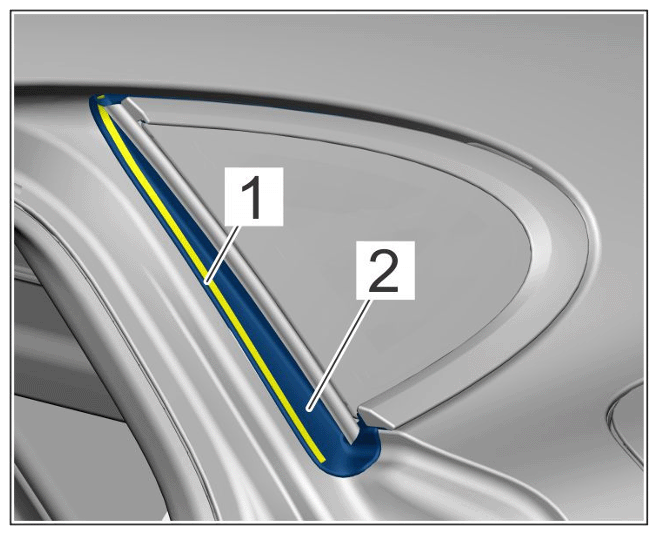

Bonding

1. 6.1 Pull off protective film -1-  on the back of the sealing lip -2-  .
2. 6.2 Press sealing lip -2-  on evenly from the bottom up.
