Removing (Front) Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

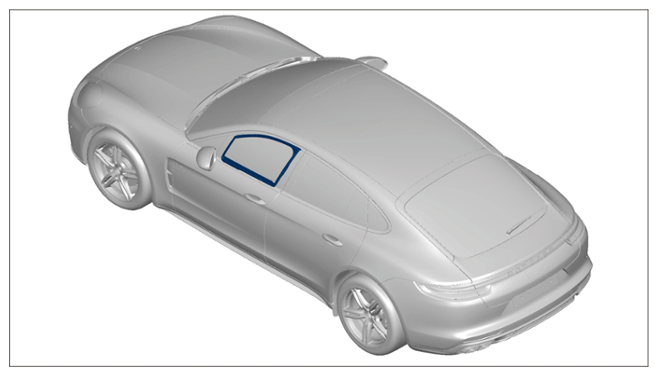

Installation position of (front) seal

1. Pull off (front) seal -1-  at the corner window pane. -arrow A-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing (front) seal

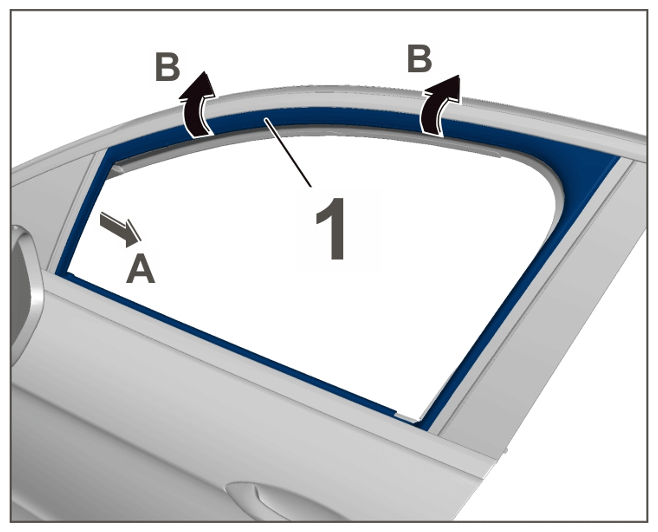

2. Unclip (front) seal -1-  in an upward direction. -arrows B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing (front) seal

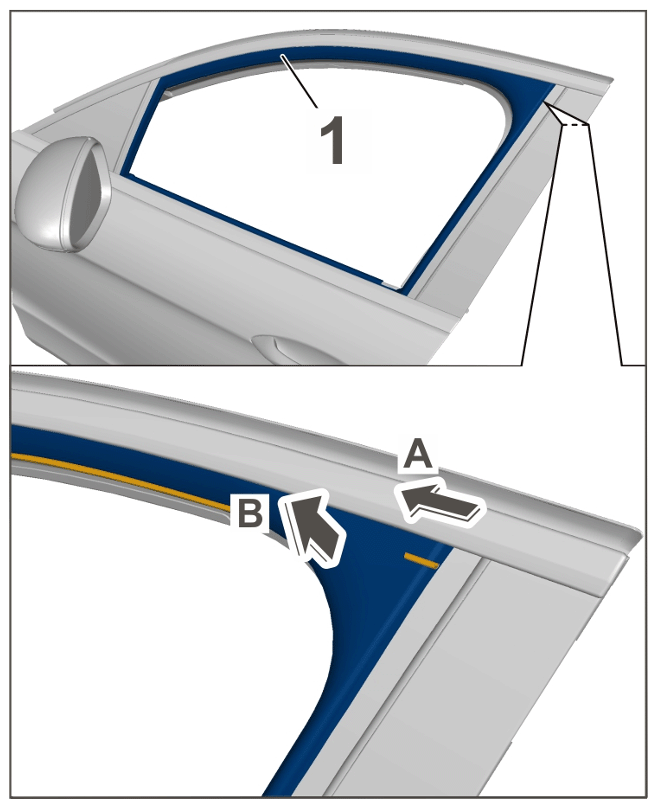

3. Push upper corner of (front) seal -1-  in direction -arrow A-  and pull it off in direction -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing (front) seal

4. Pull off rear part of (front) seal -1-  in direction -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing (front) seal

5. Remove (front) seal -1-  in direction -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (front) seal
