Removing Rear Closing Panel (Sport Turismo)

  1. Unscrew self-tapping screws -1-  .

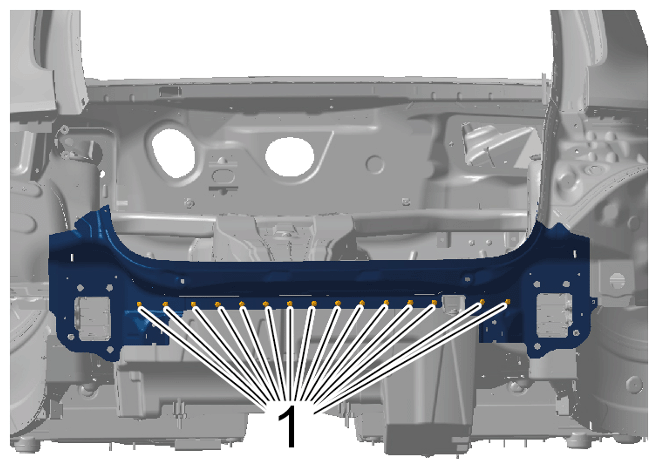

    G16369928

    Self-tapping screws

  2. Drill through clinch points. > Diameter 4 mm
    G16369929

    Clinch points

  3. Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

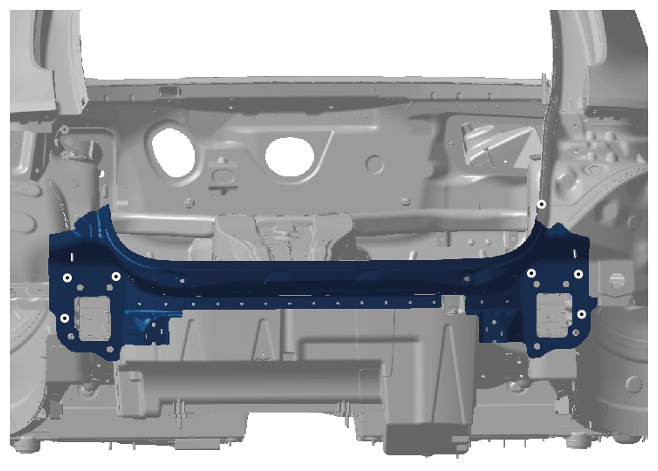

    G16369930

    Punch rivets

  4. Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

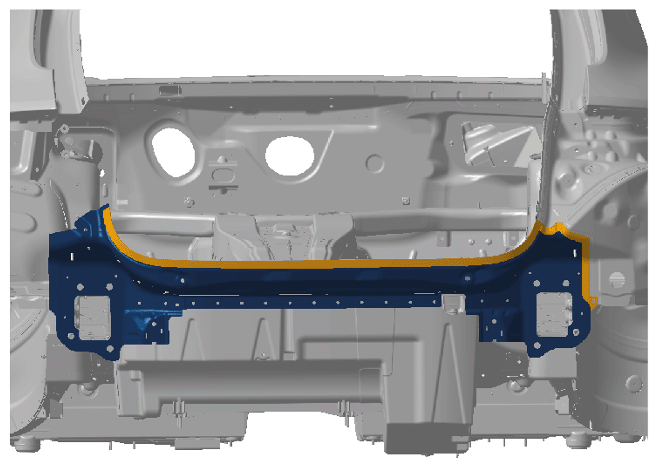

    G16369931

    Bonding areas

  5. Remove rear closing panel (Sport Turismo).
