Preparing Rear Wheel Housing (Inner Section)

1. Cut rear wheel housing (inner section) according to the cut-out in the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting rear wheel housing (inner section)

2. Remove remaining piece -1-  on the spare part -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

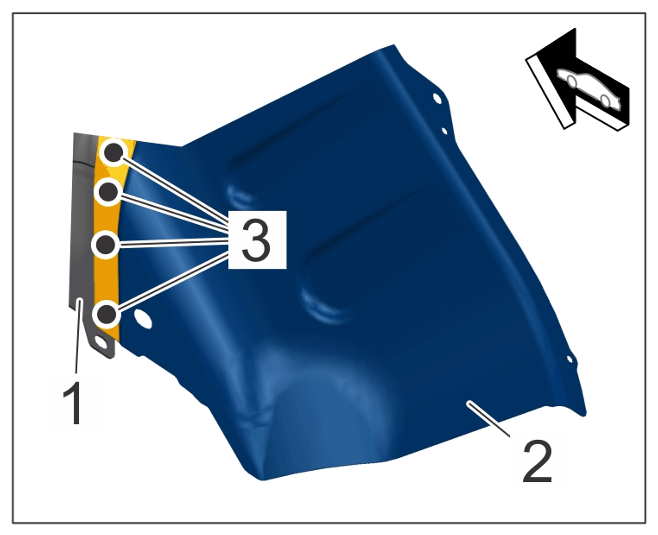

   Remaining piece

   1. 2.1 Remove spotwelds -3-  and drill holes for plug-welding.
   2. 2.2 Heat adhesive in the marked area using > V.A.G 1416 - Hot-Air Blower  .
   3. 2.3 Remove remaining piece -1-  from the spare part -2-  .
3. Secure rear wheel housing (inner section) to the body.
4. Drill holes for blind rivets through both sheetmetal plates. > Diameter 6.6 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

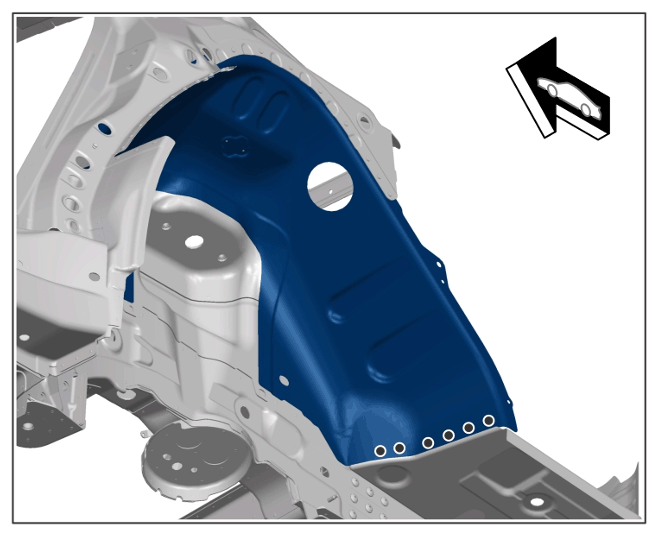

   Holes for blind rivets

5. Remove rear wheel housing (inner section).
6. Prepare surfaces on the rear wheel housing (inner section) on the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

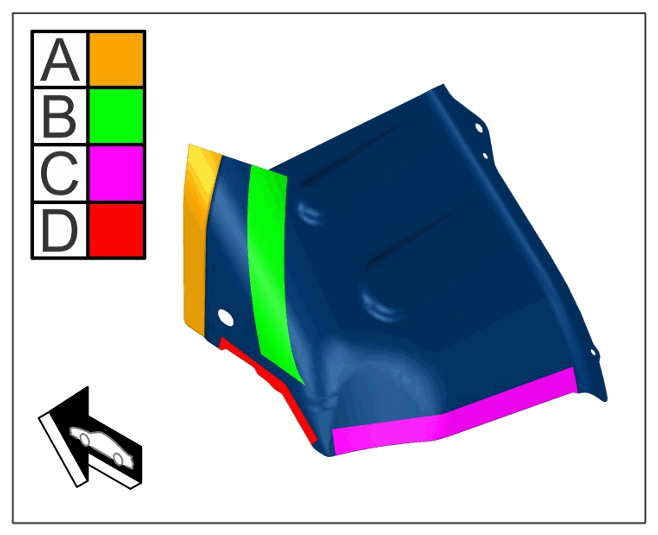

   Preparing inner surfaces

   A	Preparation for plug-welding.
   B	Preparation for bonding and resistance spot-welding. > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
   C	Preparation for bonding and riveting. > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
   D	Preparation for applying a full weld using inert gas.

7. Prepare surfaces on the rear wheel housing (inner section) on the outside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

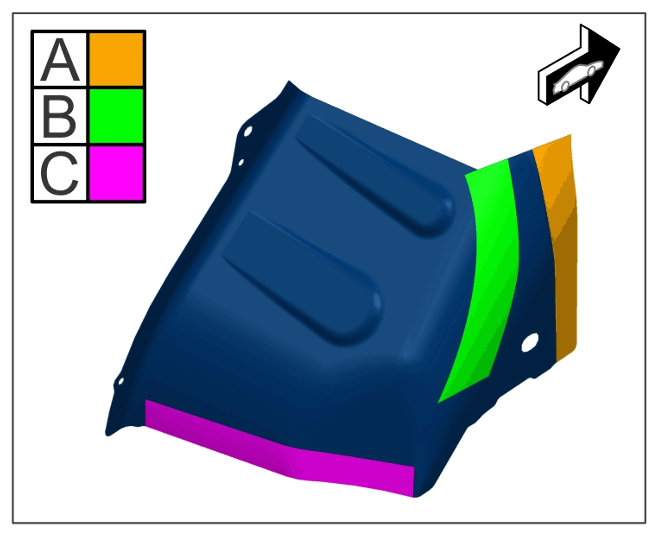

Preparing outer surfaces
